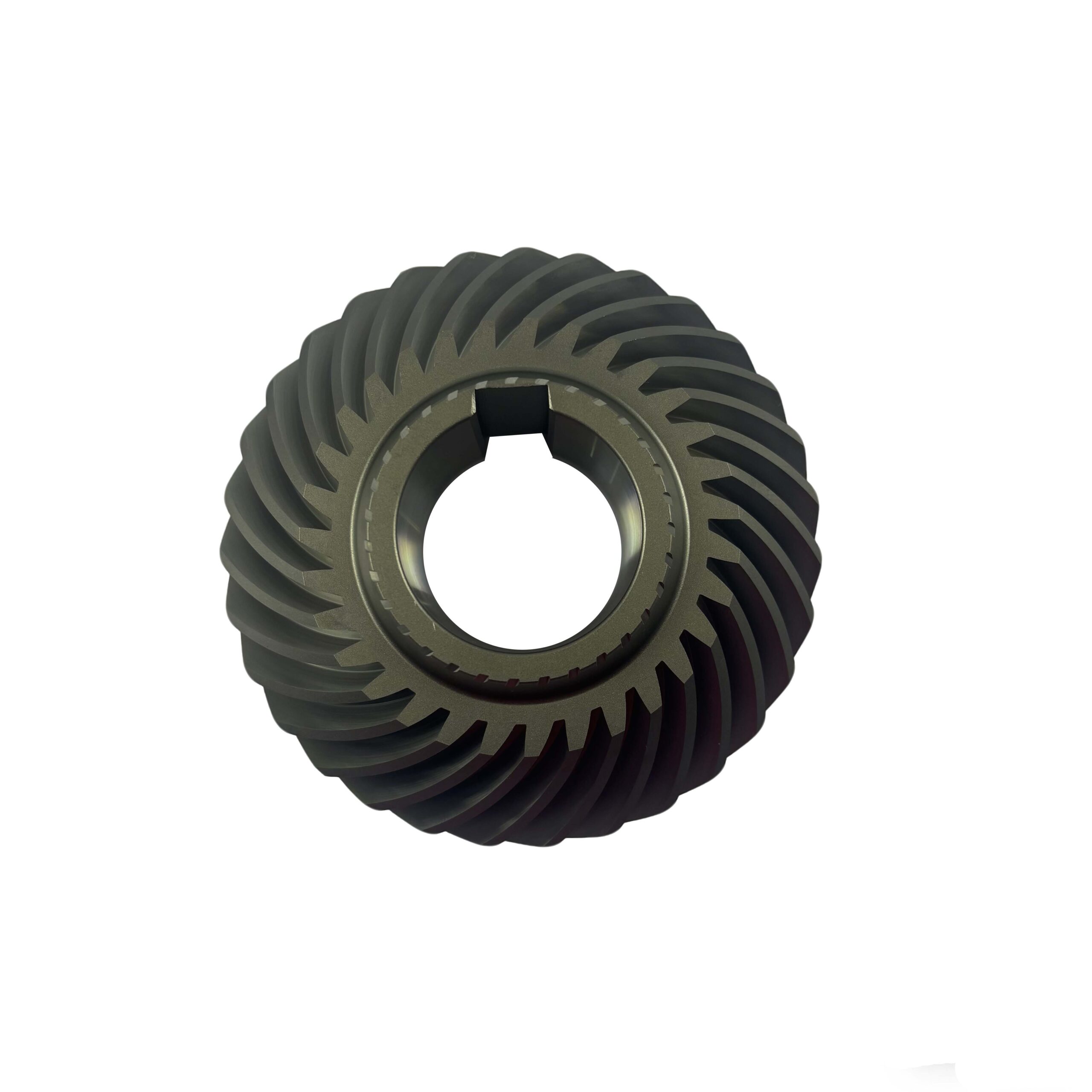

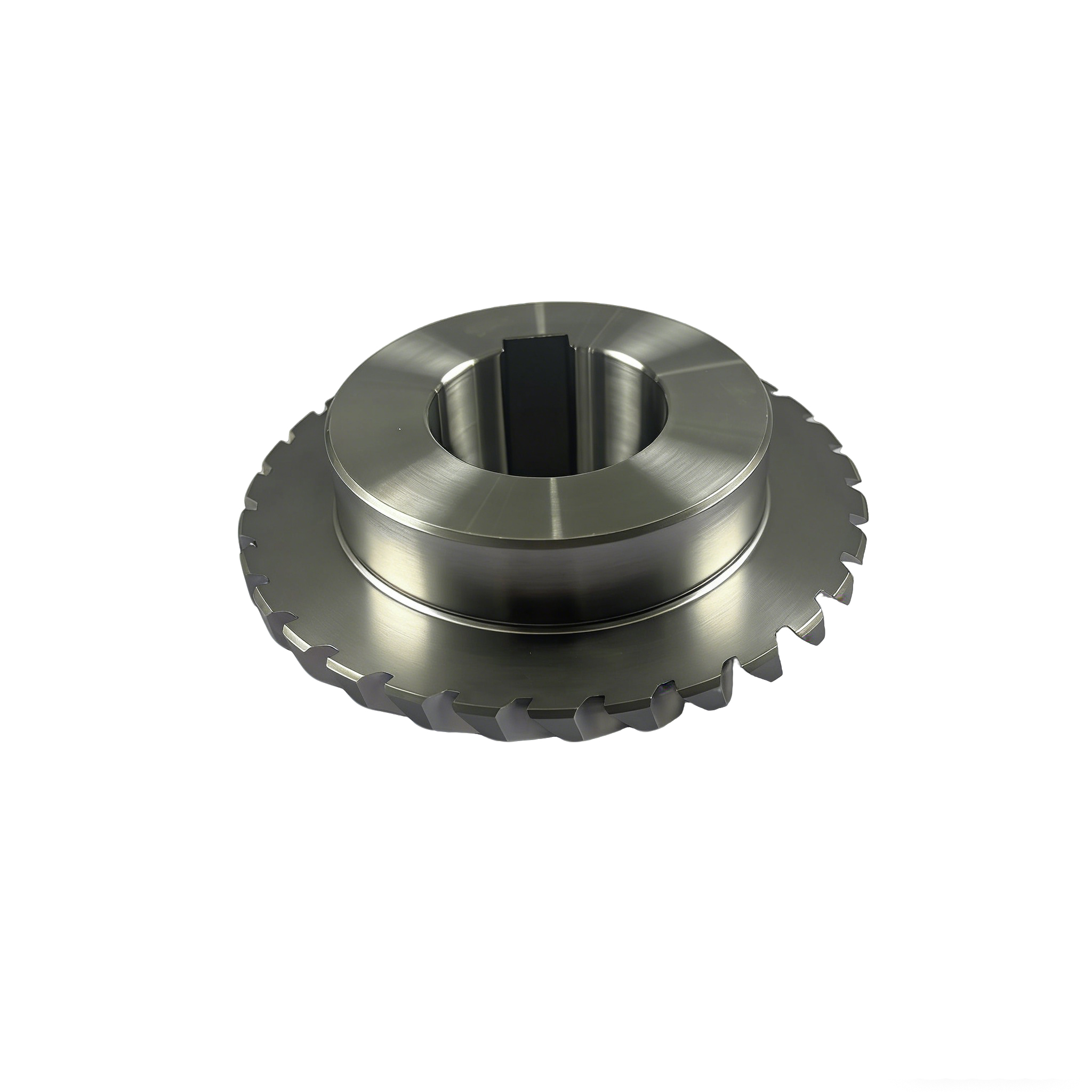

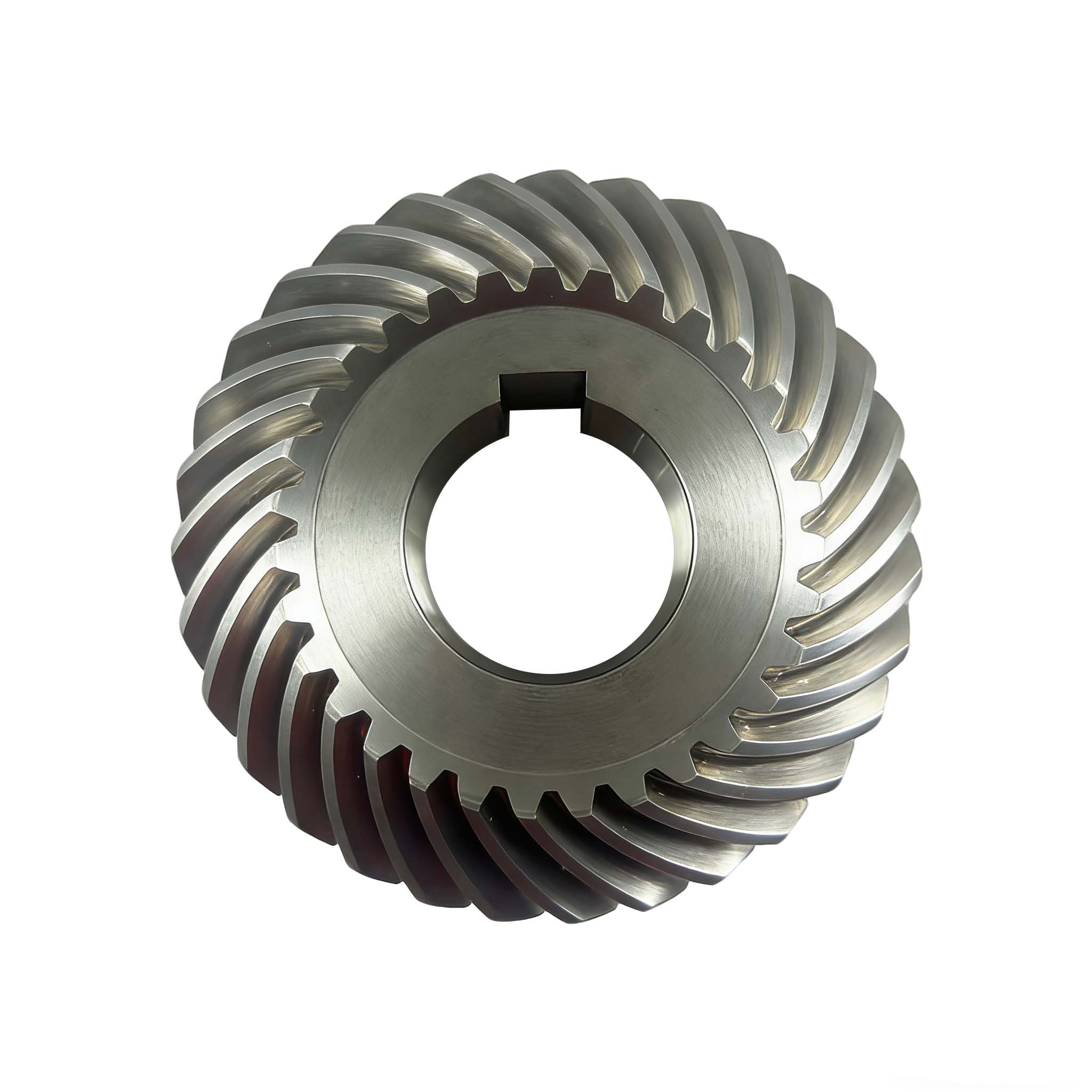

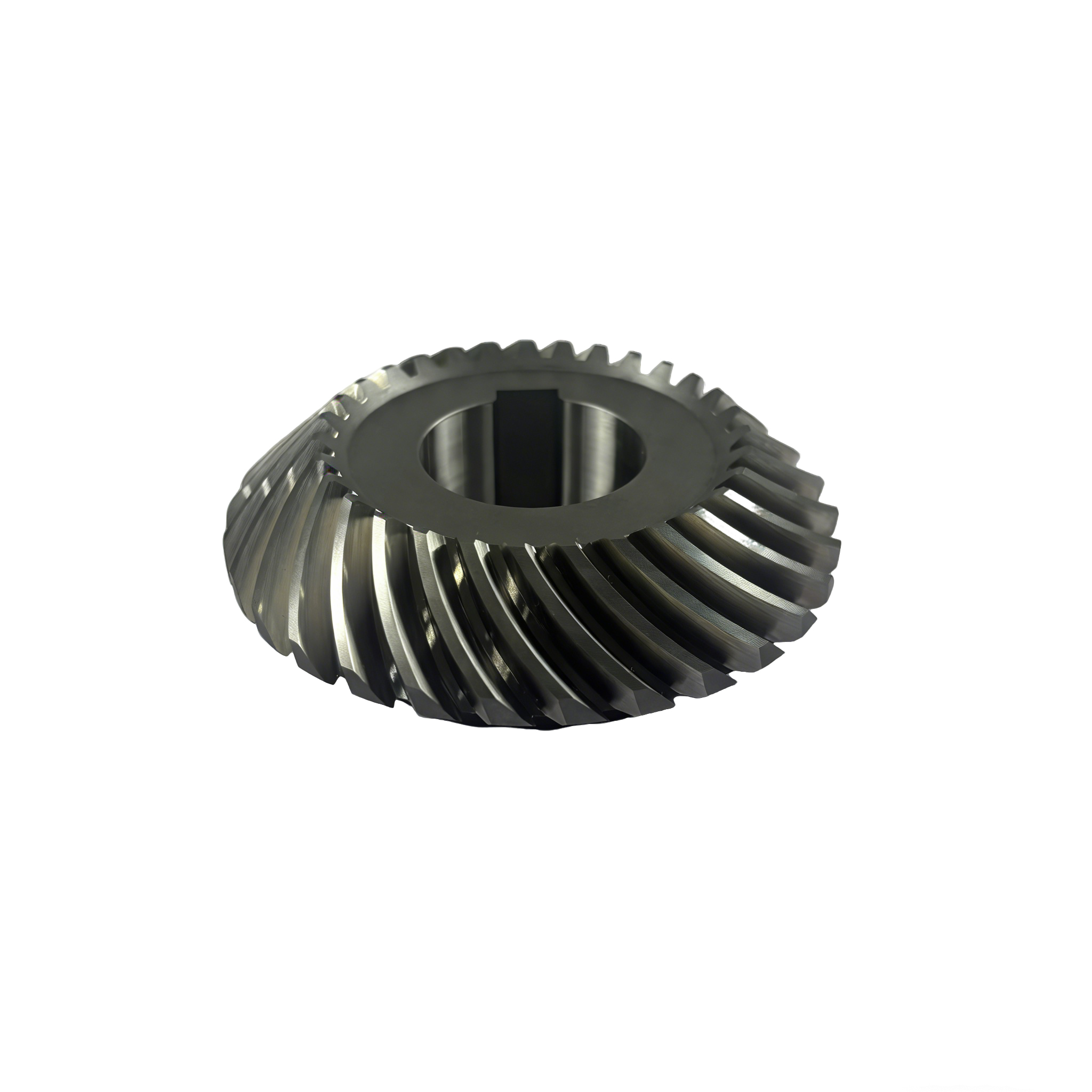

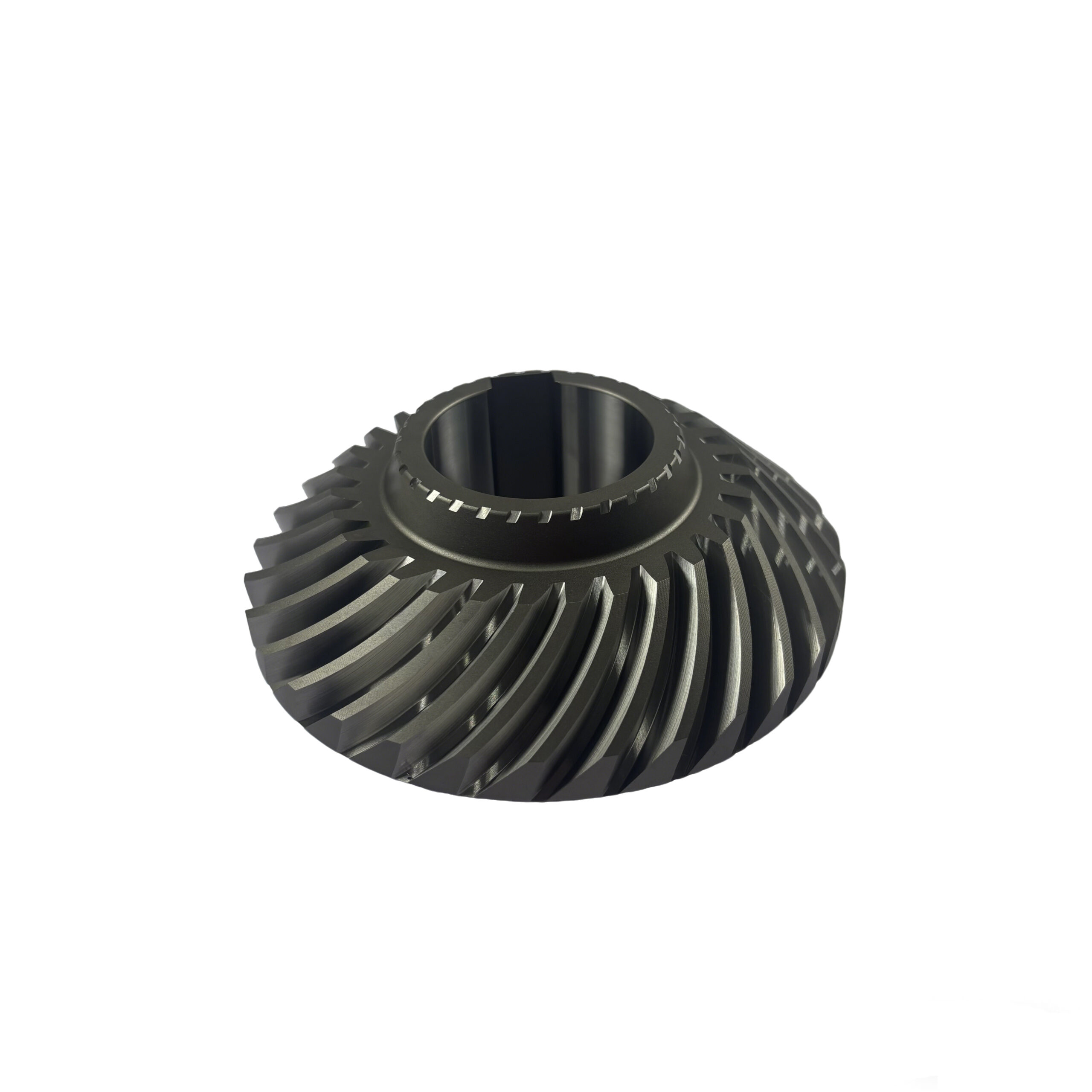

M0159M11 (180-1:1) Left-hand Large Bevel Gear and M0160M10 (180-1:1) Right-hand Large Bevel Gear
$35.30piece
Two large spiral bevel gears for reducers made of 20CrMnTi, with module 3.45, 20° pressure angle, 31 teeth and speed ratio 1. AEP-11-C is left-hand, AEP-12-C is right-hand, with the same specification and slightly different sizes, precision-machined for reducer transmission.
描述

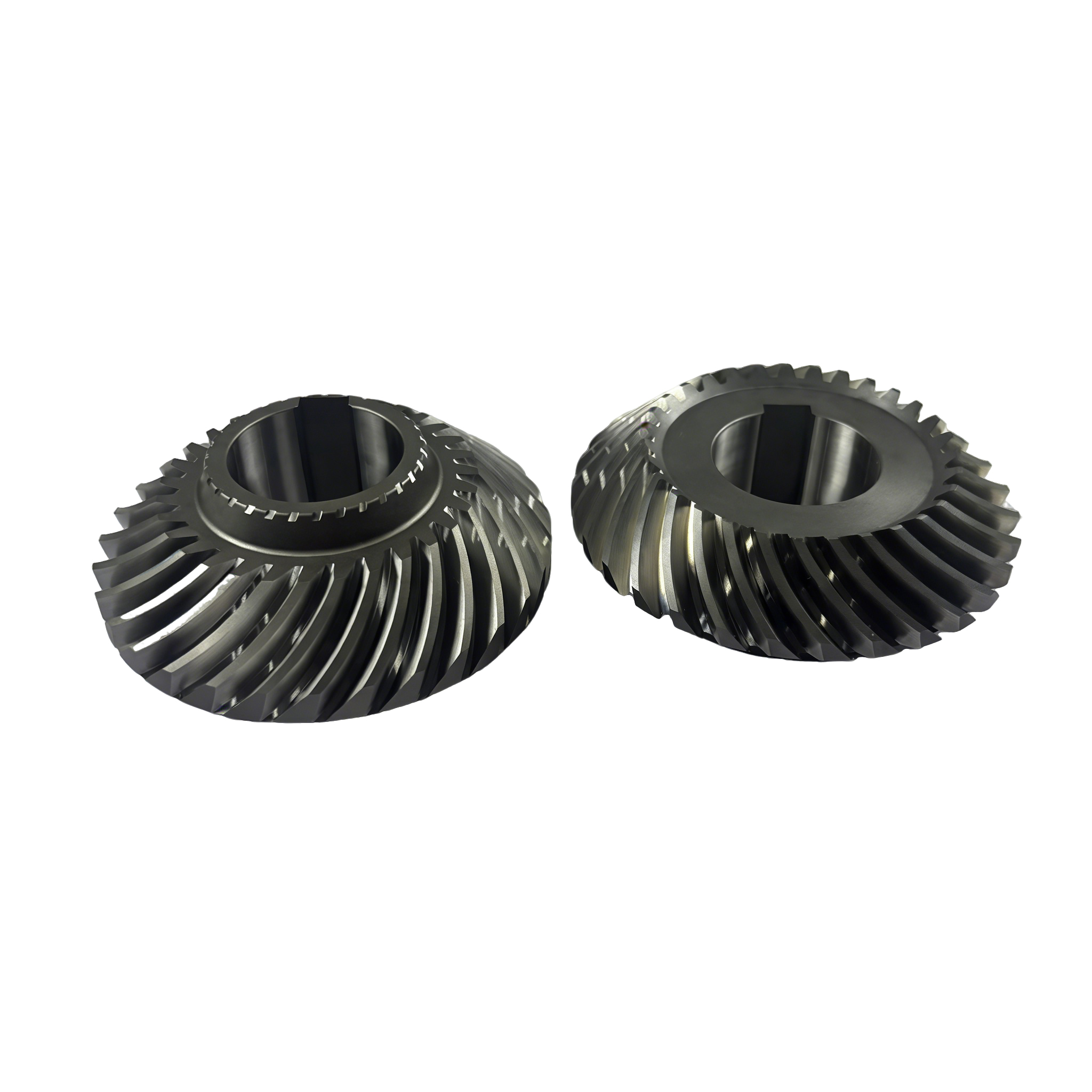

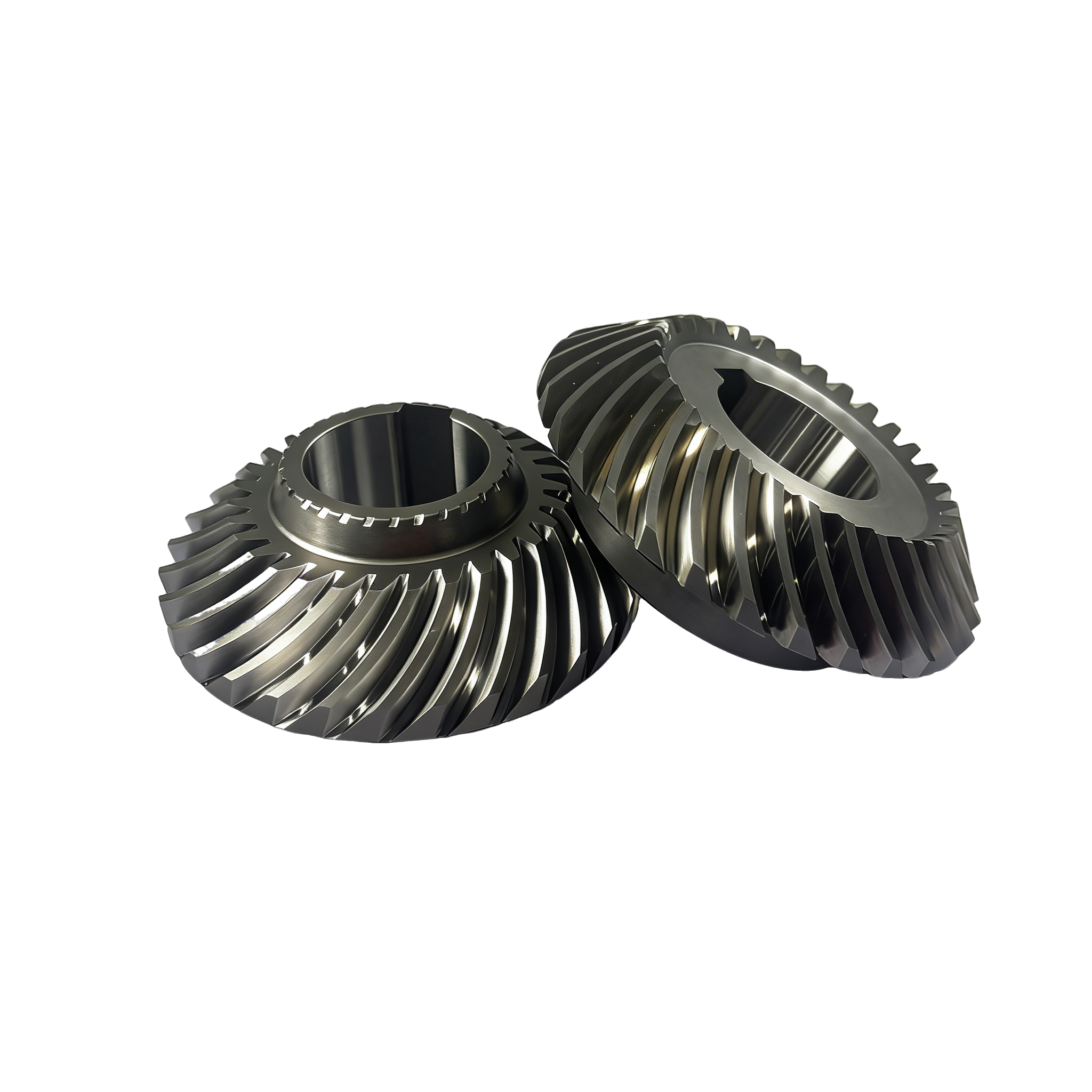

This series includes two large-sized spiral bevel gears for reducers, with models AEP-11-C (M0159M11 (180-1:1) Left-hand Large Bevel Gear) and AEP-12-C (M0160M10 (180-1:1) Right-hand Large Bevel Gear). Both have the same specification but opposite directions, and can be used alone or in pairs to adapt to the reducer transmission system, meeting different installation direction requirements.
The two gears have prominent core commonalities: both are made of 20CrMnTi, with excellent strength, wear resistance and transmission stability, suitable for heavy-duty working conditions of reducers; pressure angle of 20°, module of 3.45, 31 teeth, speed ratio of 1, spiral angle of 35°, inner diameter of 40mm, gear outer diameter of 110mm; the processing technology is completely uniform, including sawing, turning, keyway machining, gear milling, heat treatment, shot blasting, boring + end facing + guide arc chamfering, and gear grinding. They have high transmission accuracy and stable operation, and are designed with keyways to adapt to the conventional connection needs of reducers.
Specific parameter differences:
– AEP-11-C Large Bevel Gear (Left-hand): Spiral angle 35°/L, total length 38mm, weight 1.243kg, suitable for the installation scenario where the reducer needs left-hand transmission.
– AEP-12-C Large Bevel Gear (Right-hand): Spiral angle 35°/R, total length 43.8mm, weight 1.364kg, suitable for the installation scenario where the reducer needs right-hand transmission.
其他信息
| AEP-11-C and AEP-12-C weight |
1.234and1.364 |
|---|---|
| AEP-11-C and AEP-12-C Core Components |
gear |
| AEP-11-C and AEP-12-C Craftsmanship |
Milling |
