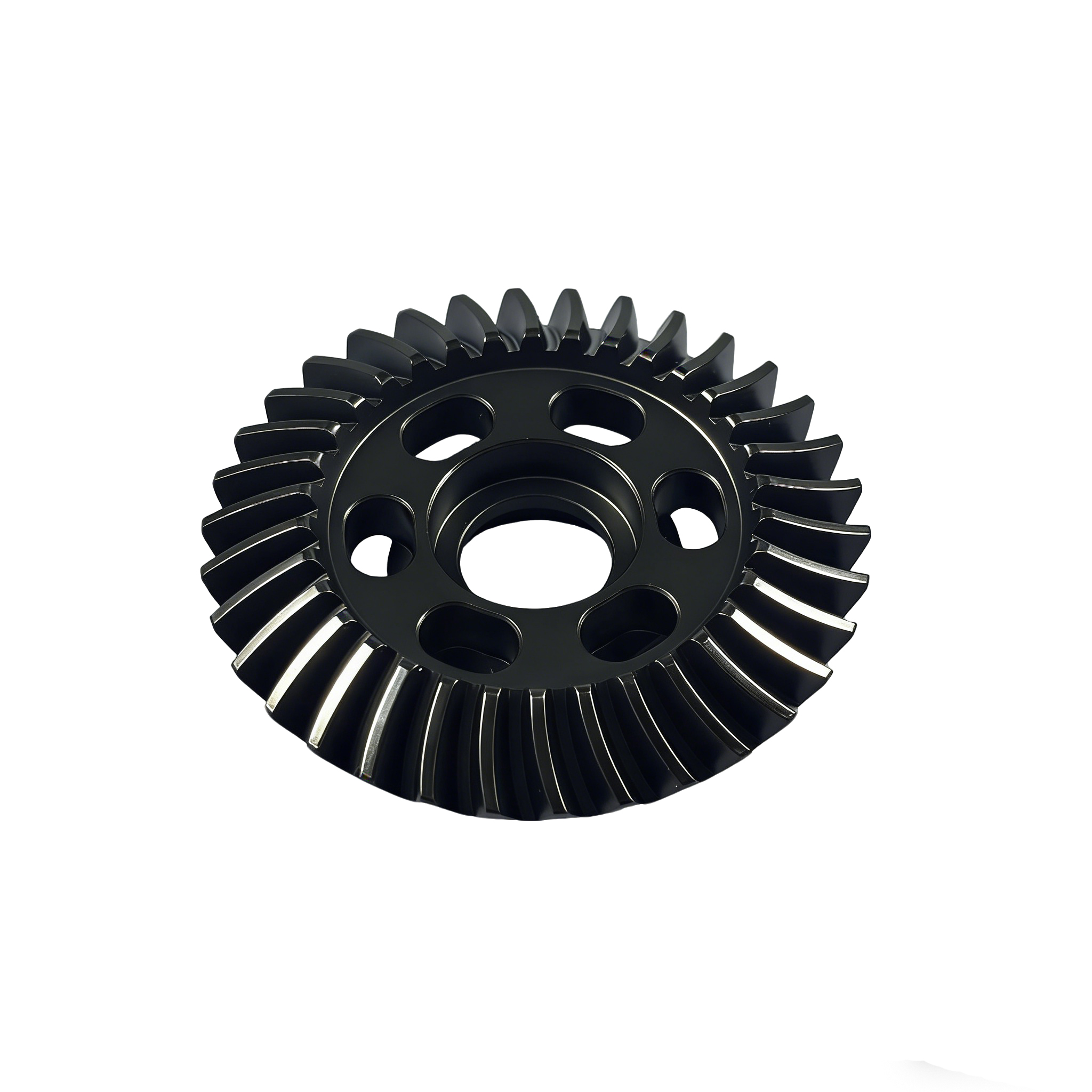

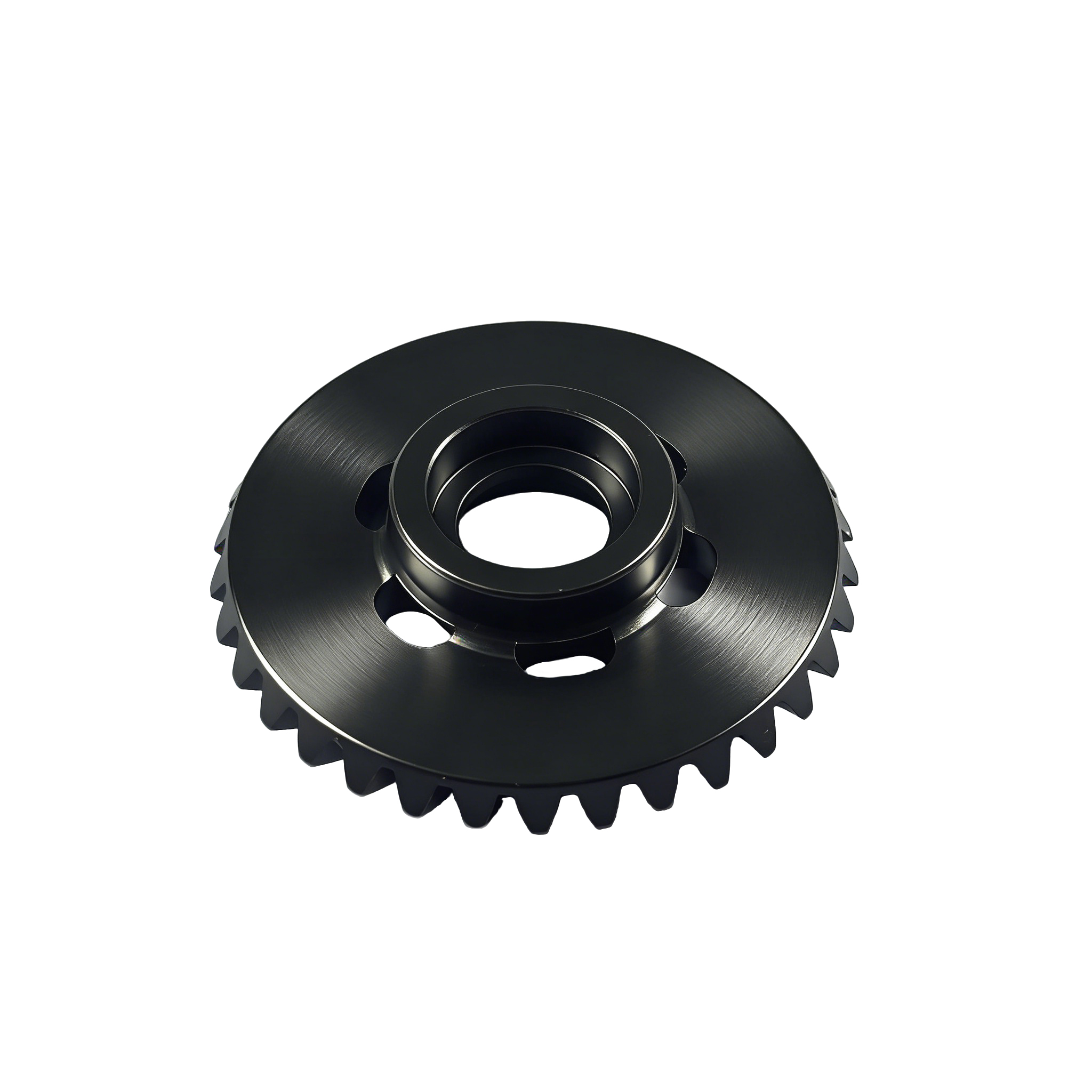

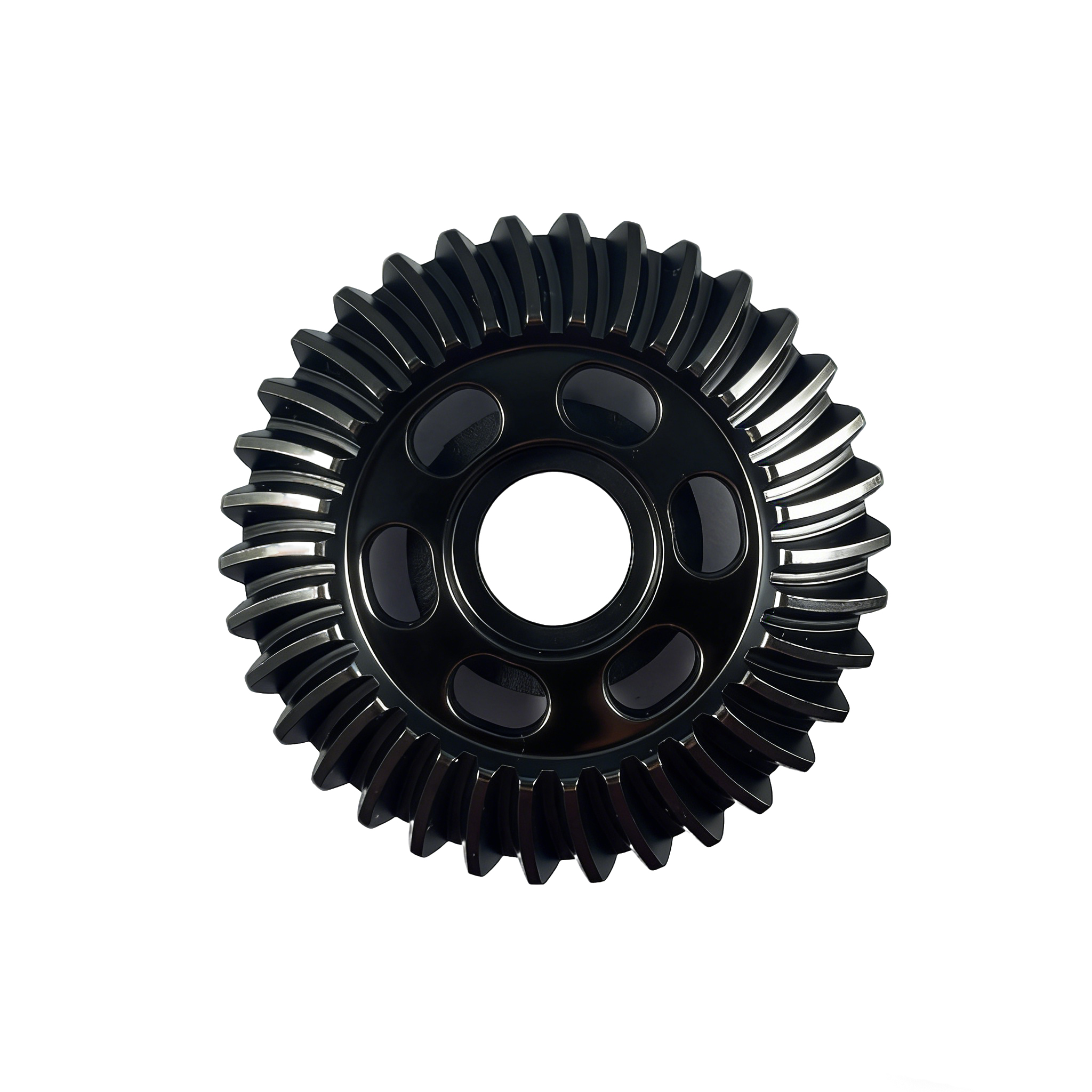

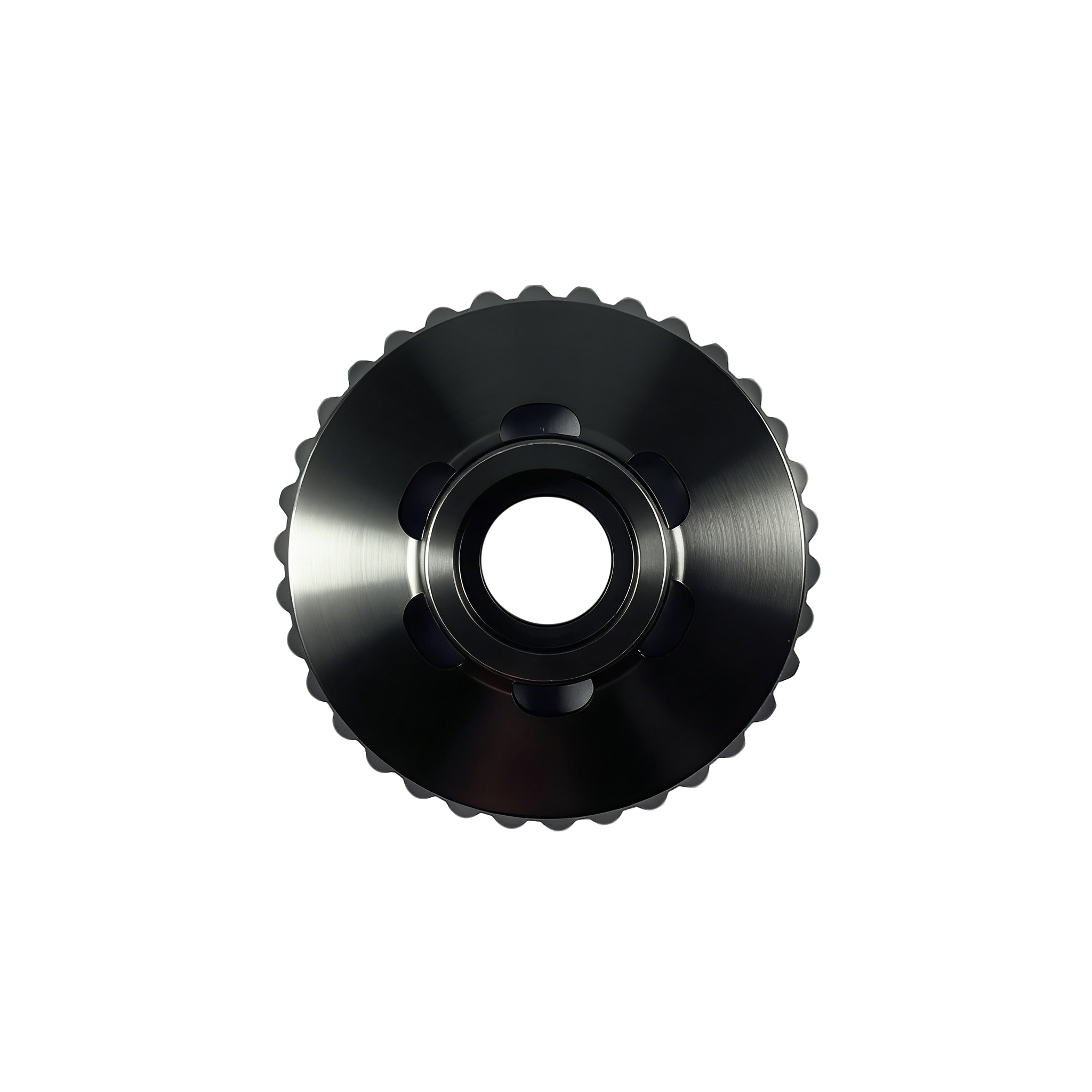

KA09107 Large Bevel Gear 34T
$9.24piece
LS-004-C Spiral Bevel Gear, 20CrMnTi, module 1.75, 34 teeth, 10° left hand, blackened, for reducers.
描述
Model: LS-004-C (KA09107 Large Bevel Gear 34T)
This is a spiral bevel gear for reducers, made of 20CrMnTi alloy steel.
Parameters: pressure angle 20°, module 1.75, 34 teeth, helix angle 10° left hand, inner bore 19mm, gear OD 60mm, total length 14.92mm, weight 0.101kg.
Process: sawing, turning, CNC machining, gear milling, heat treatment, shot blasting, blackening.
Blackened for rust prevention with high strength and stable transmission, used in reducer drive systems.
其他信息
| weight |
0.101 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Milling |
