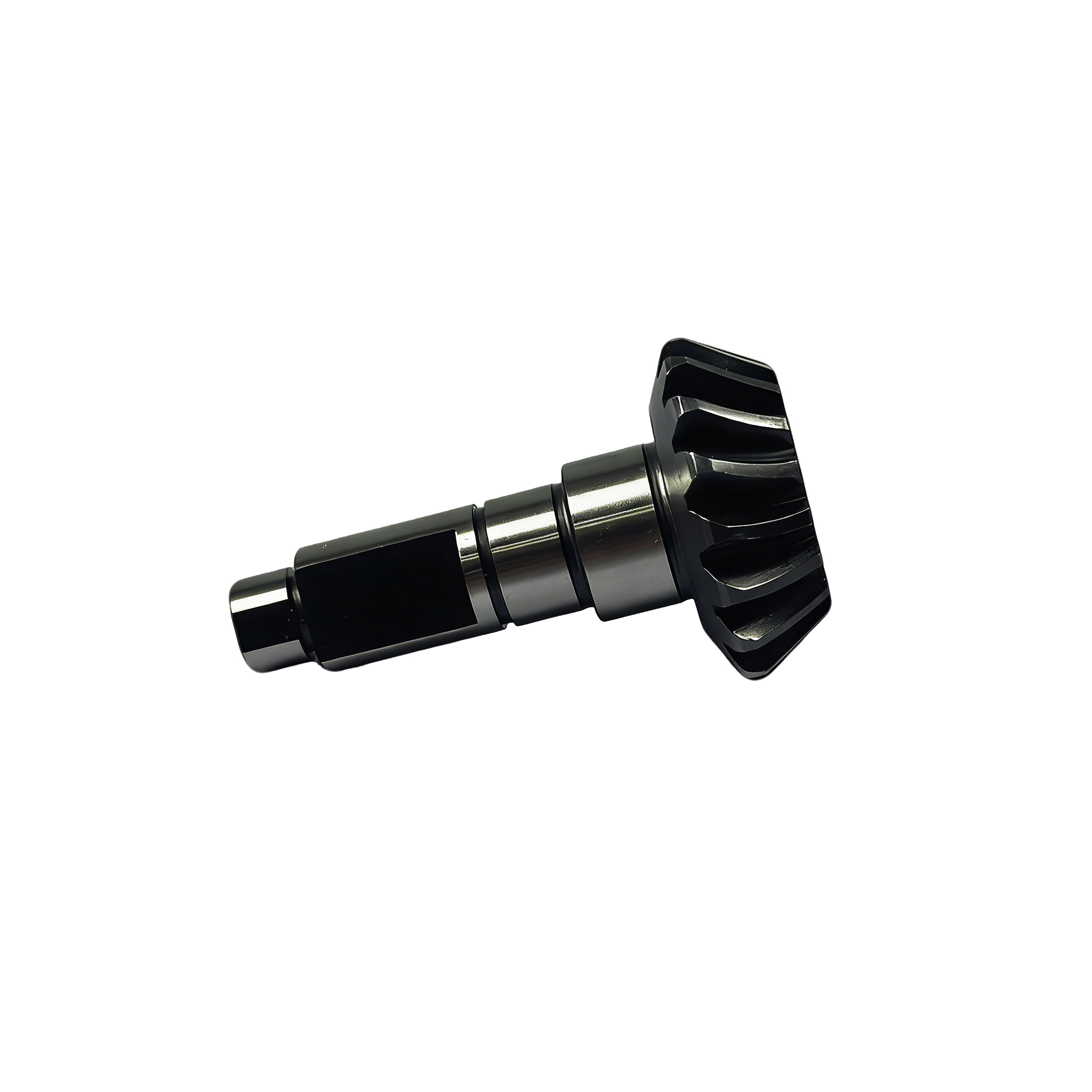

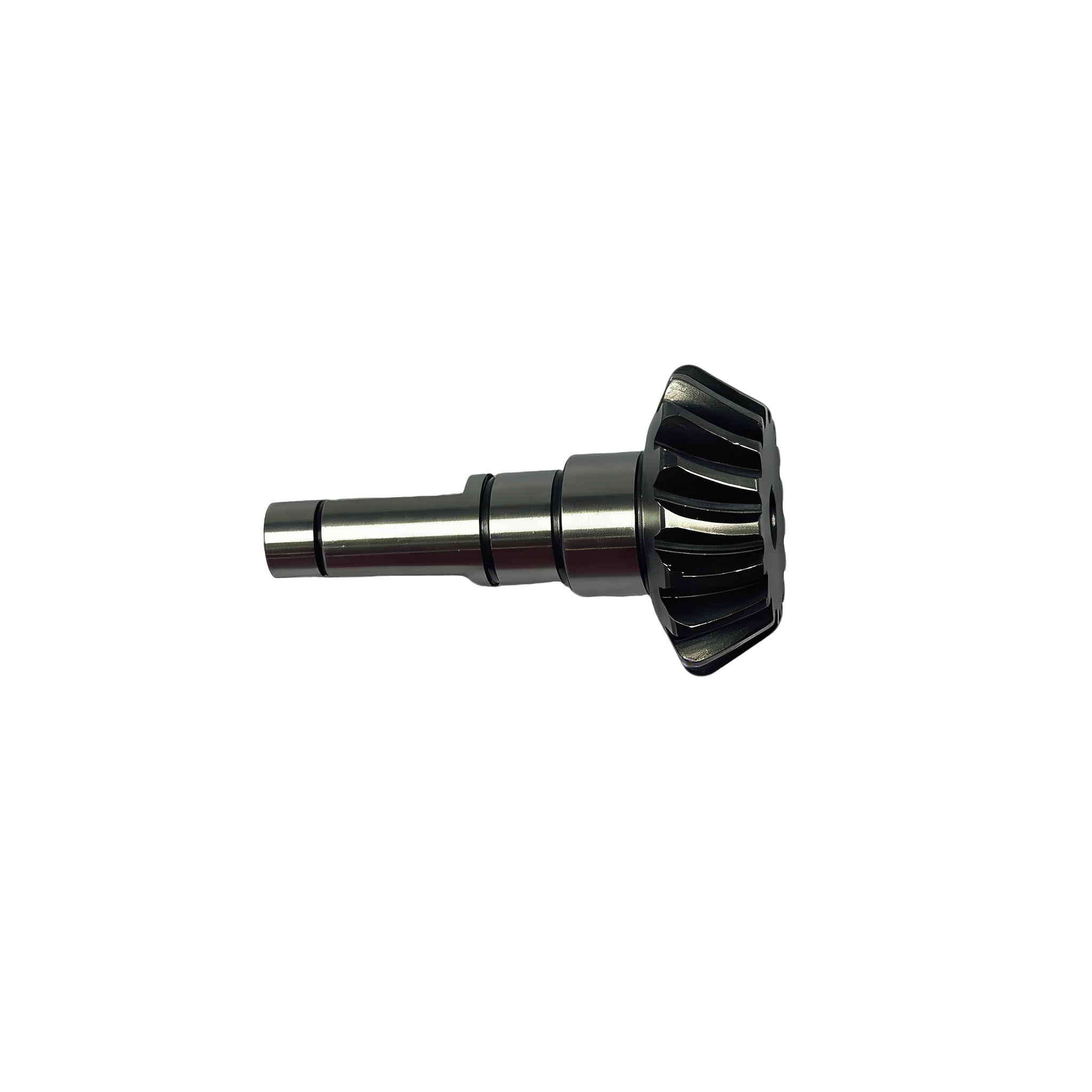

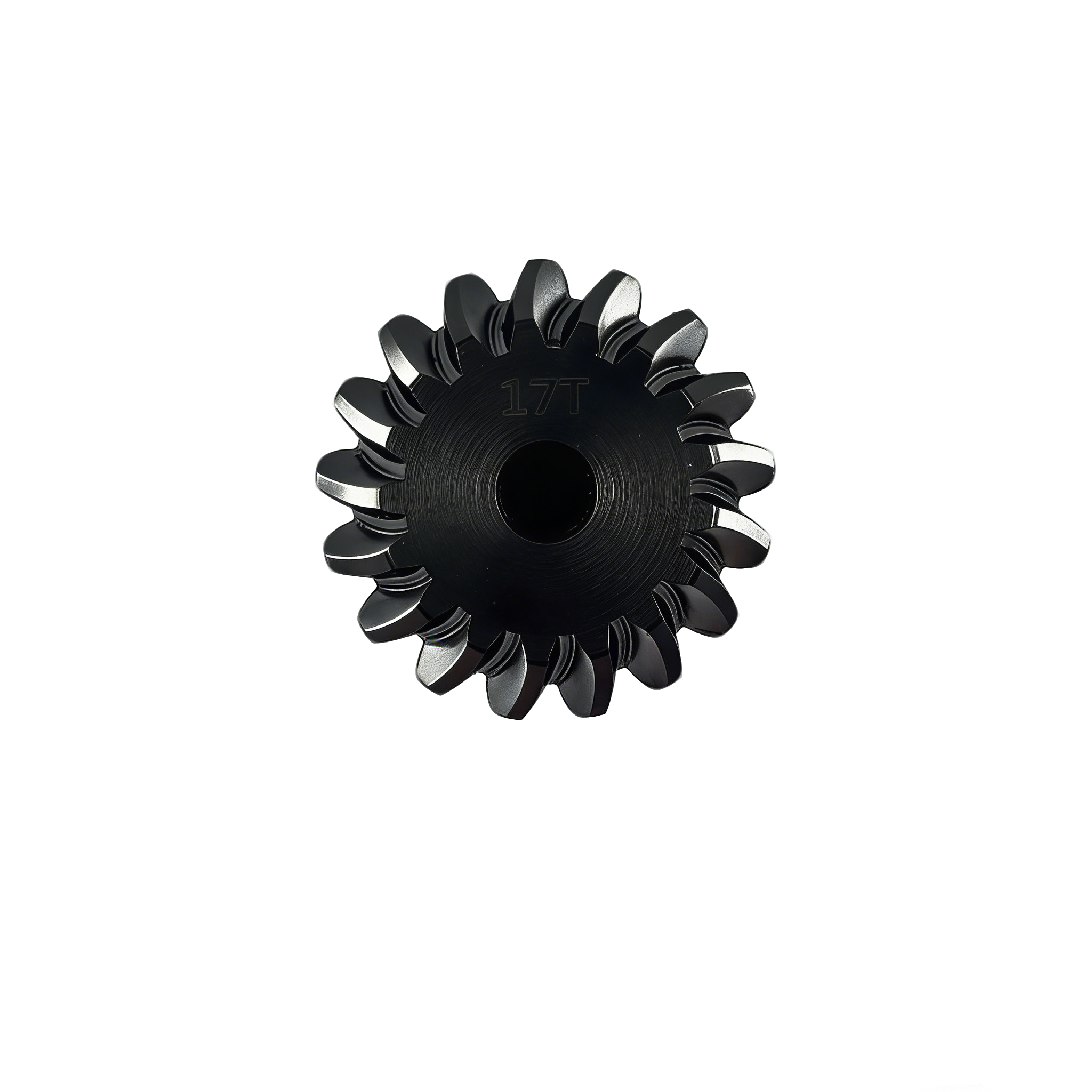

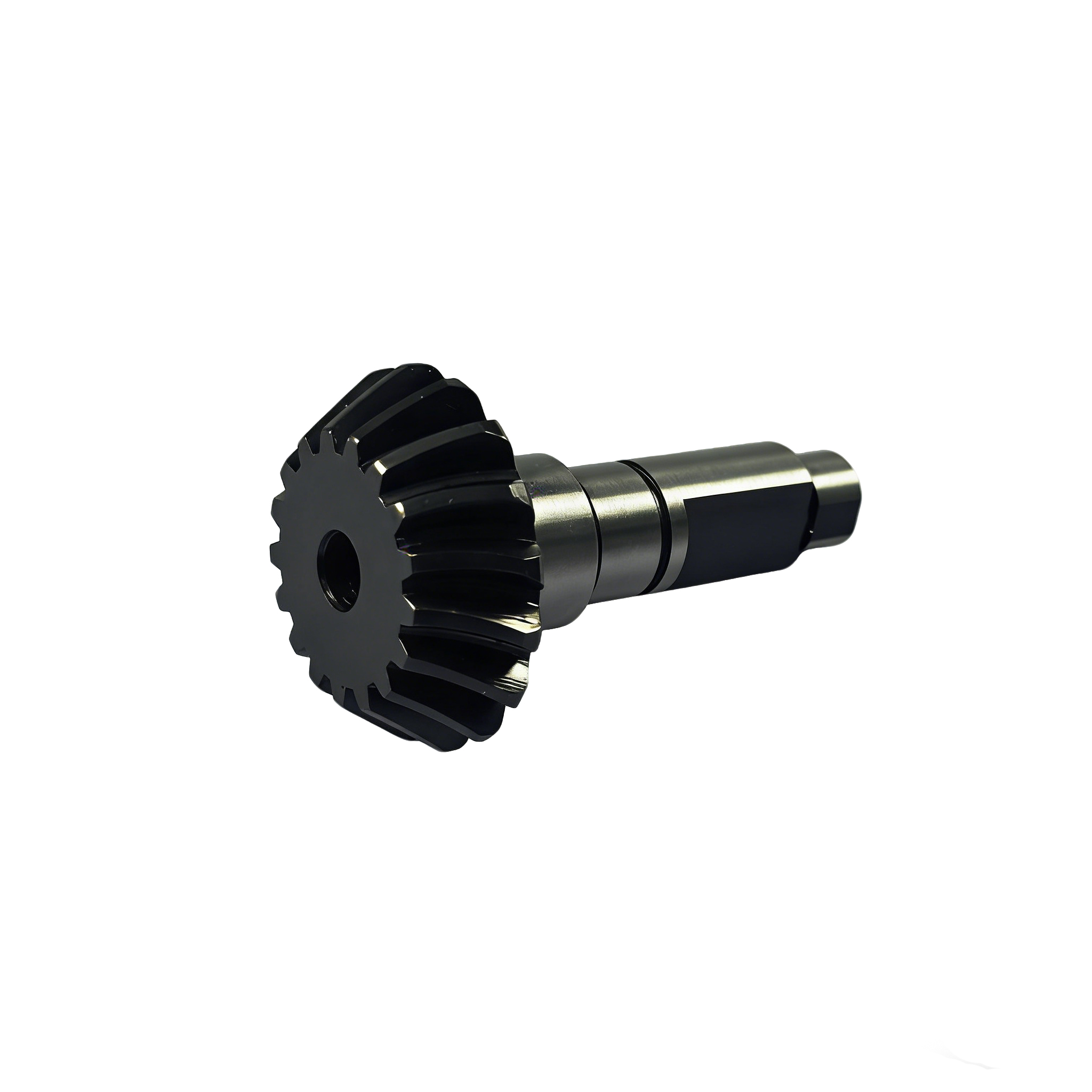

LS-003-C Spiral Bevel Gear, 20CrMnTi, module 1.75, 17 teeth, 10° right hand, blackened & ground, for reducers.
Description
Model: LS-003-C (KA09106-V1 Small Bevel Gear 17T)
This is a spiral bevel gear for reducers, made of 20CrMnTi alloy steel.
Parameters: pressure angle 20°, module 1.75, 17 teeth, helix angle 10° right hand, shaft diameter 12mm, gear OD 32mm, total length 52.93mm, weight 0.079kg.
Process: sawing, turning, milling flat square (CNC machining), gear milling, heat treatment, shot blasting, blackening, outer diameter grinding.
With blackened and ground surface, high hardness and stable transmission for reducer drive.
Additional information
| weight |
0.079 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Milling |
