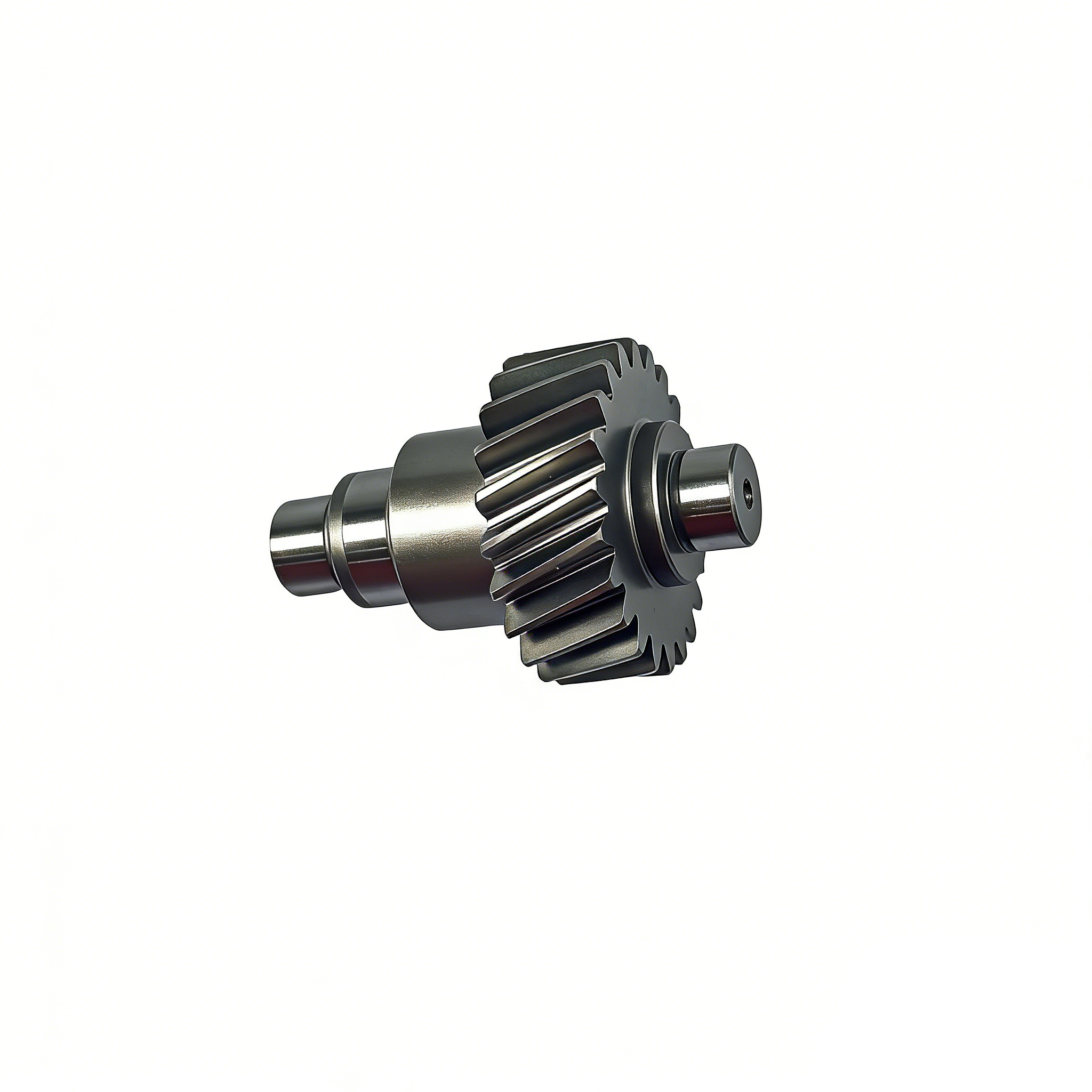

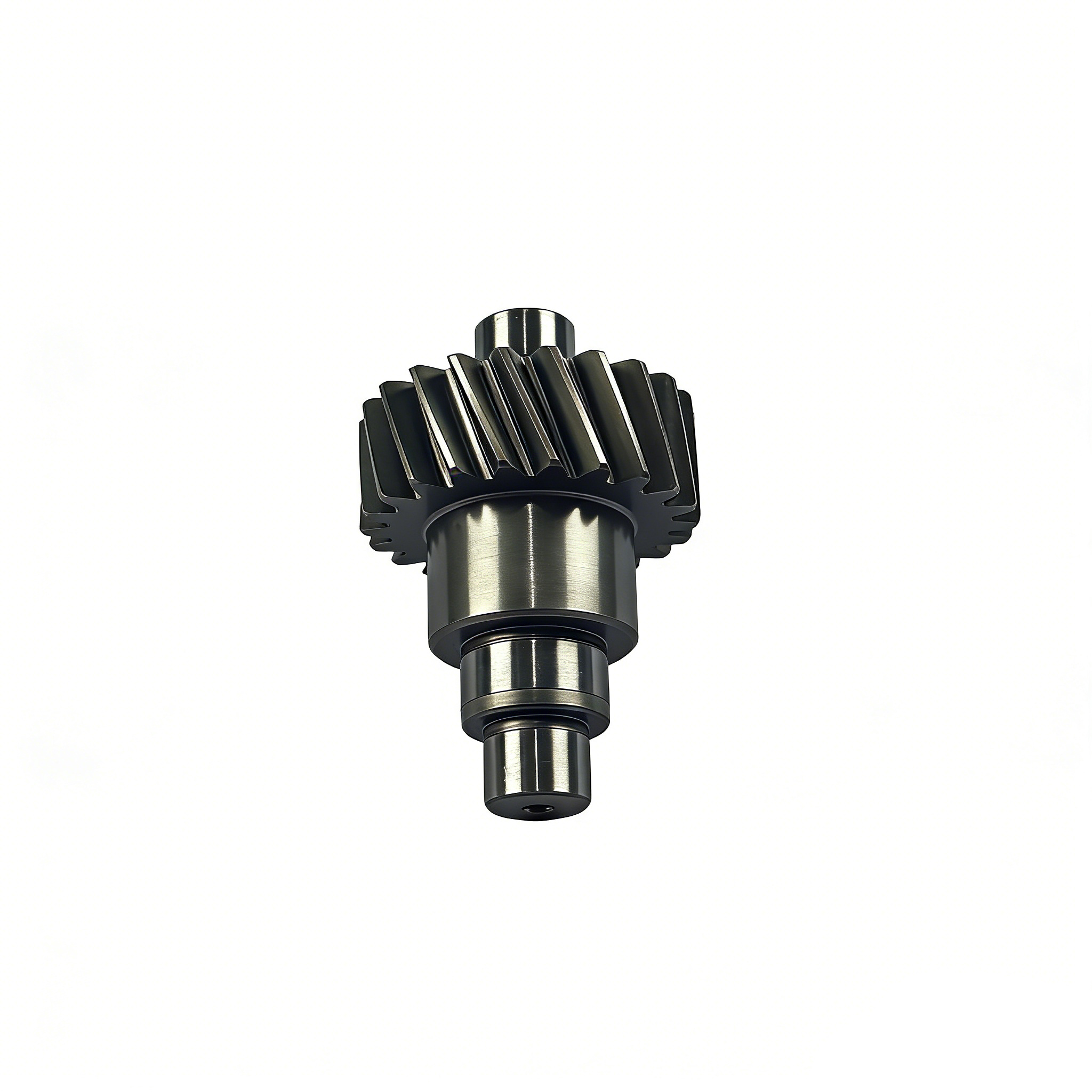

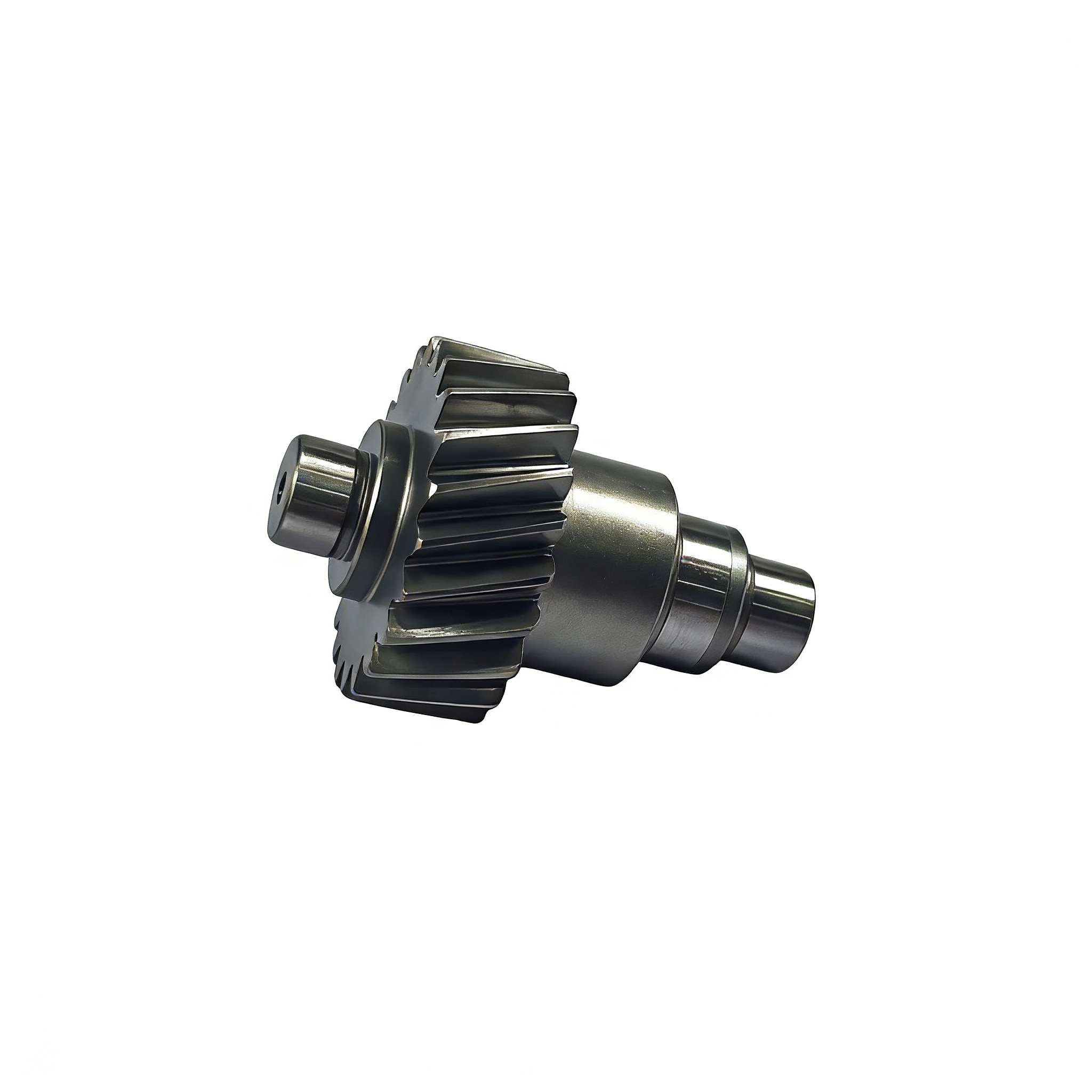

RJ-018-C Gear Shaft for Reducer, 20CrMo, module 1.25, 22 teeth 20° LH, finished by hobbing, grinding and heat treatment.
Description
Model: RJ-018-C (J80610543 (C OP GOB-B068C) Gear Shaft)
This is a precision gear shaft for reducers, made of 20CrMo alloy steel.
Parameters: pressure angle 20°, module 1.25, 22 teeth, helix angle 20° left hand, shaft diameter 14mm, gear OD 33.02mm, total length 49mm, weight 0.1196kg.
Process: normalizing, turning, rough grinding of clamping position, gear hobbing, heat treatment, shot blasting, outer diameter grinding, full visual inspection.
With high dimensional accuracy, uniform tooth surface hardness and stable transmission, suitable for reducer drive parts.
Additional information
| weight |
0.1196 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
