80501102410 (Gear 44×1.25)
$42.02piece
SPKJ-041-C helical gear, module 1.25, 44 teeth, 20° RH helix, 20CrMnTi, for reducer.
Description

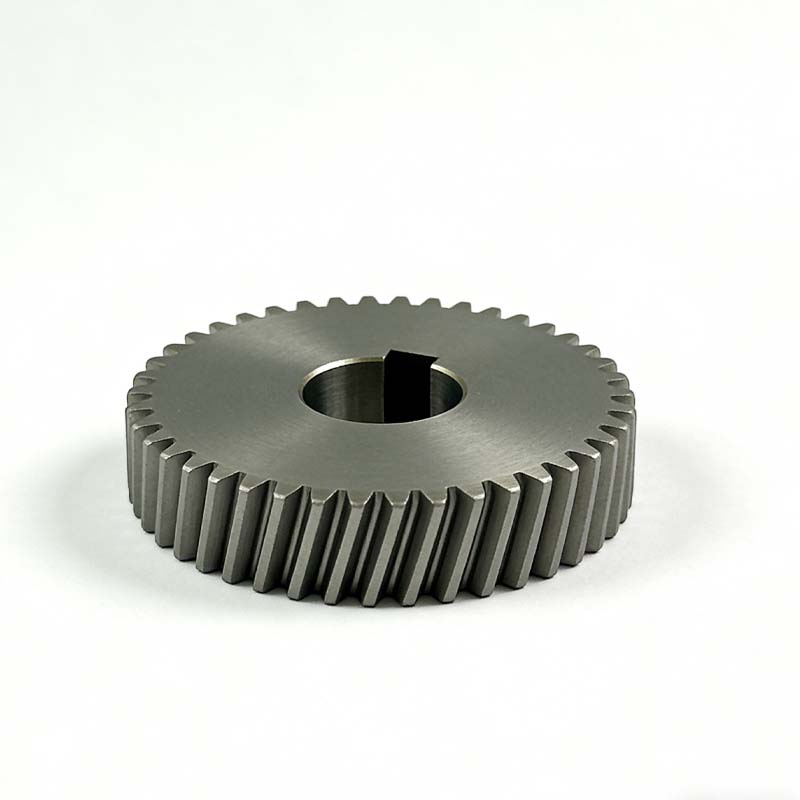

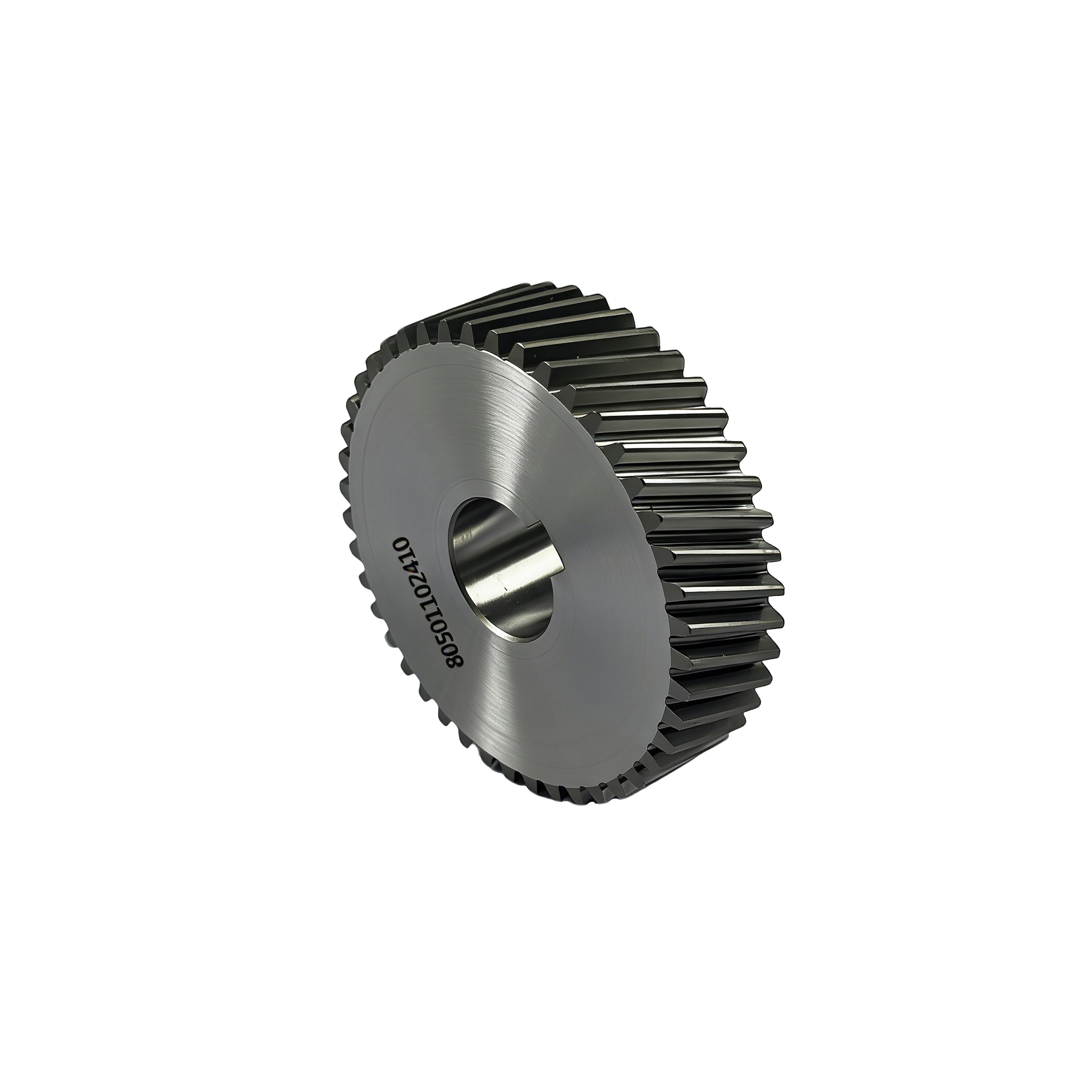

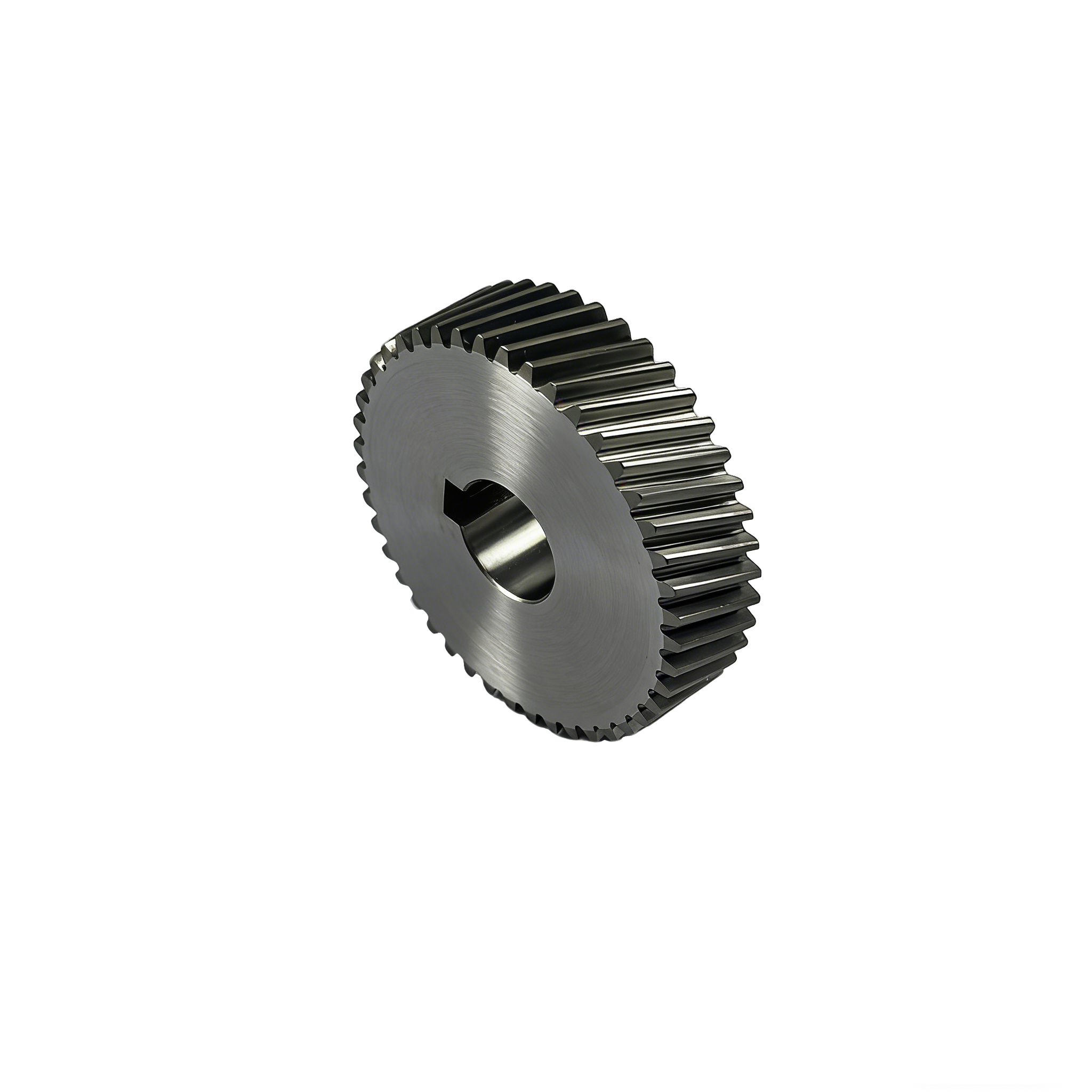

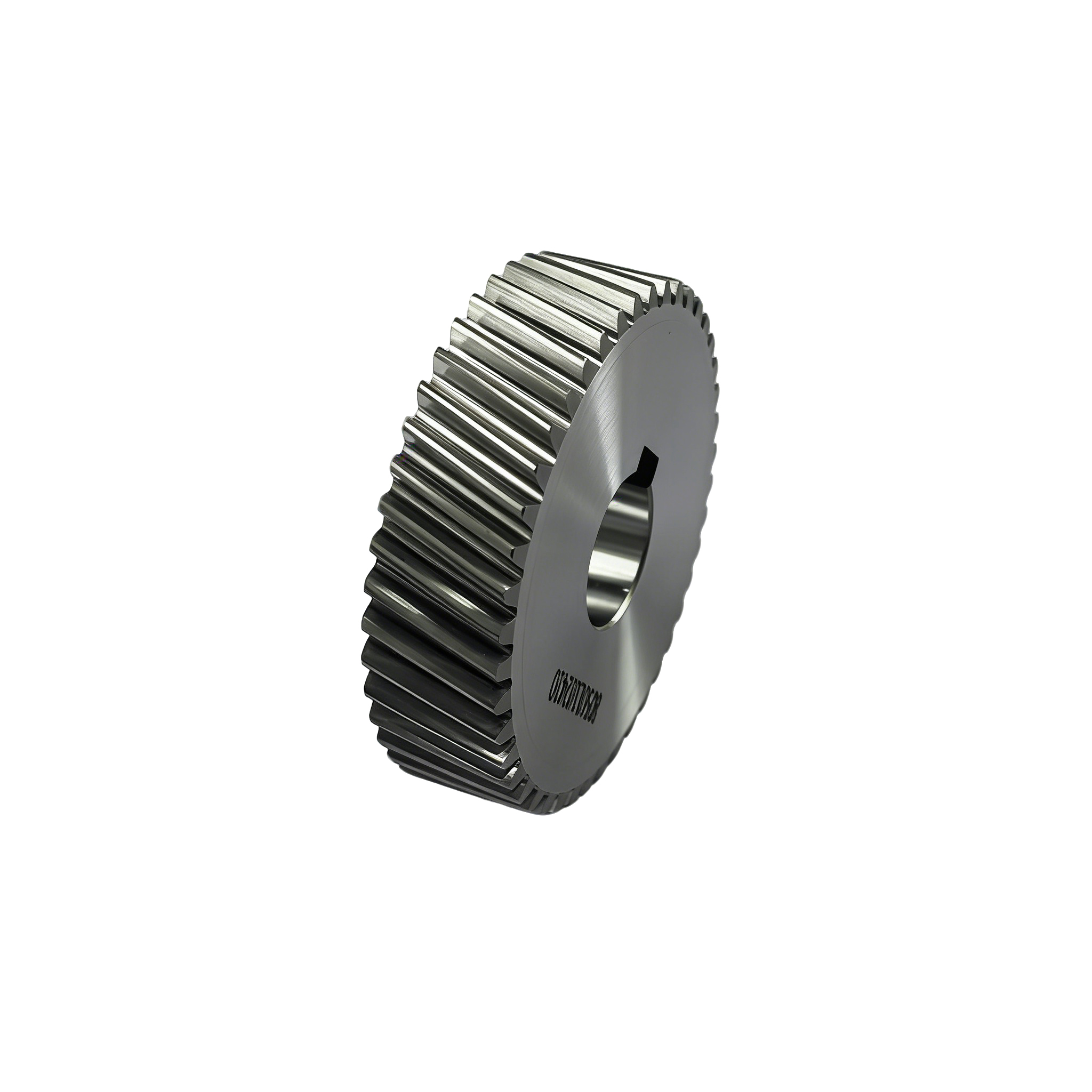

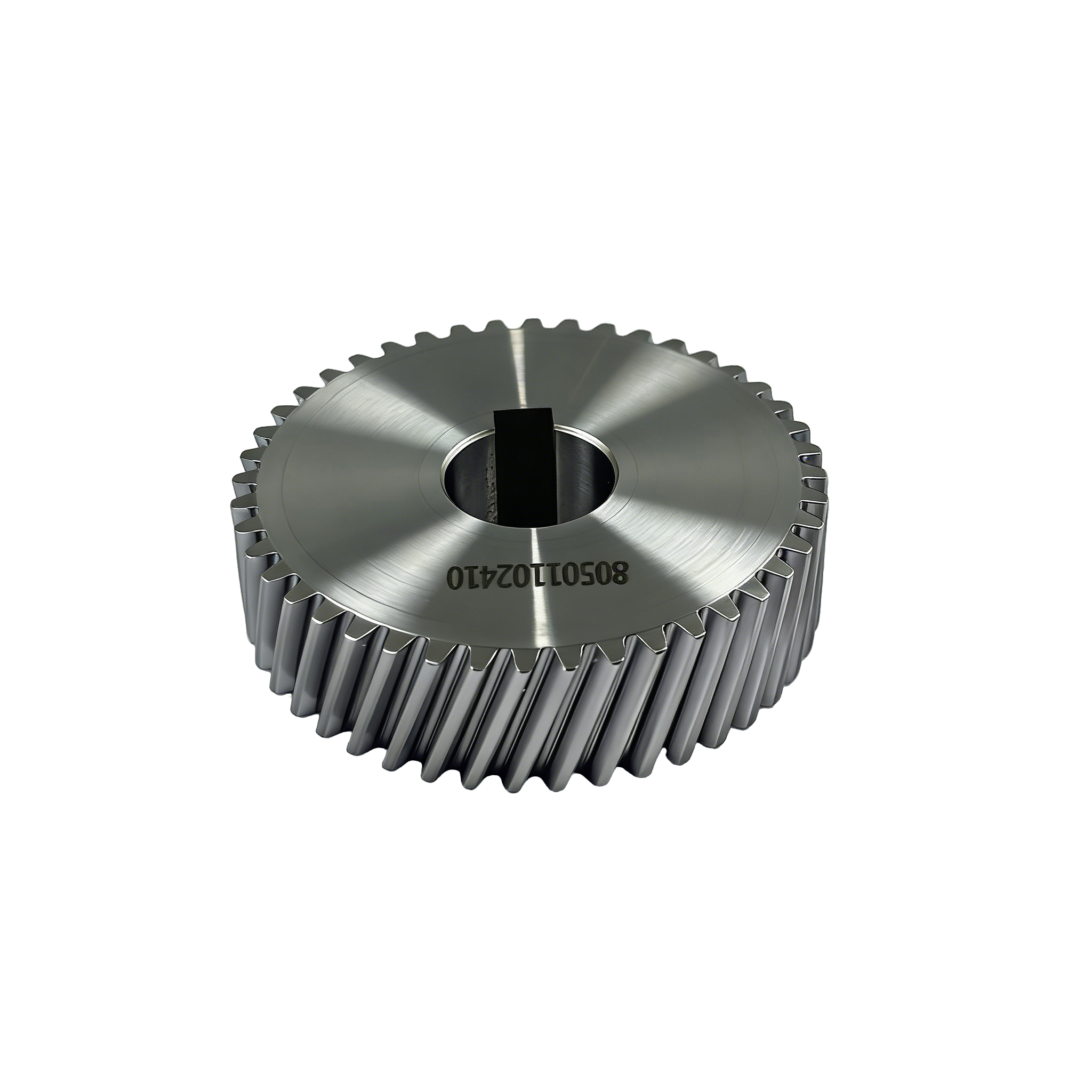

SPKJ-041-C (Part No. 80501102410, Gear 44×1.25) is a helical gear for reducers, with pressure angle 20°, module 1.25, 44 teeth, 20° right-hand helix angle, inner diameter 17 mm, addendum diameter 59.655 mm, total length 16 mm, weight 0.2933 kg. Manufactured from 20CrMnTi through sawing, turning, rough hobbing, heat treatment, shot blasting, boring & facing, total length grinding, gear grinding, wire-cut keyway and marking. It is mainly used as a transmission part in reducers.
Additional information
| weight |
0.2933 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
