80501102407 (11-tooth Motor Output Shaft)
$42.02piece
80501102409 (Gear 11×1.25)
$42.02piece
80501102408 (Gear 44×1)
$42.02piece
SPKJ-039-C helical gear, module 1, 44 teeth, 22° RH helix, 20CrMnTi, for reducer.
Description

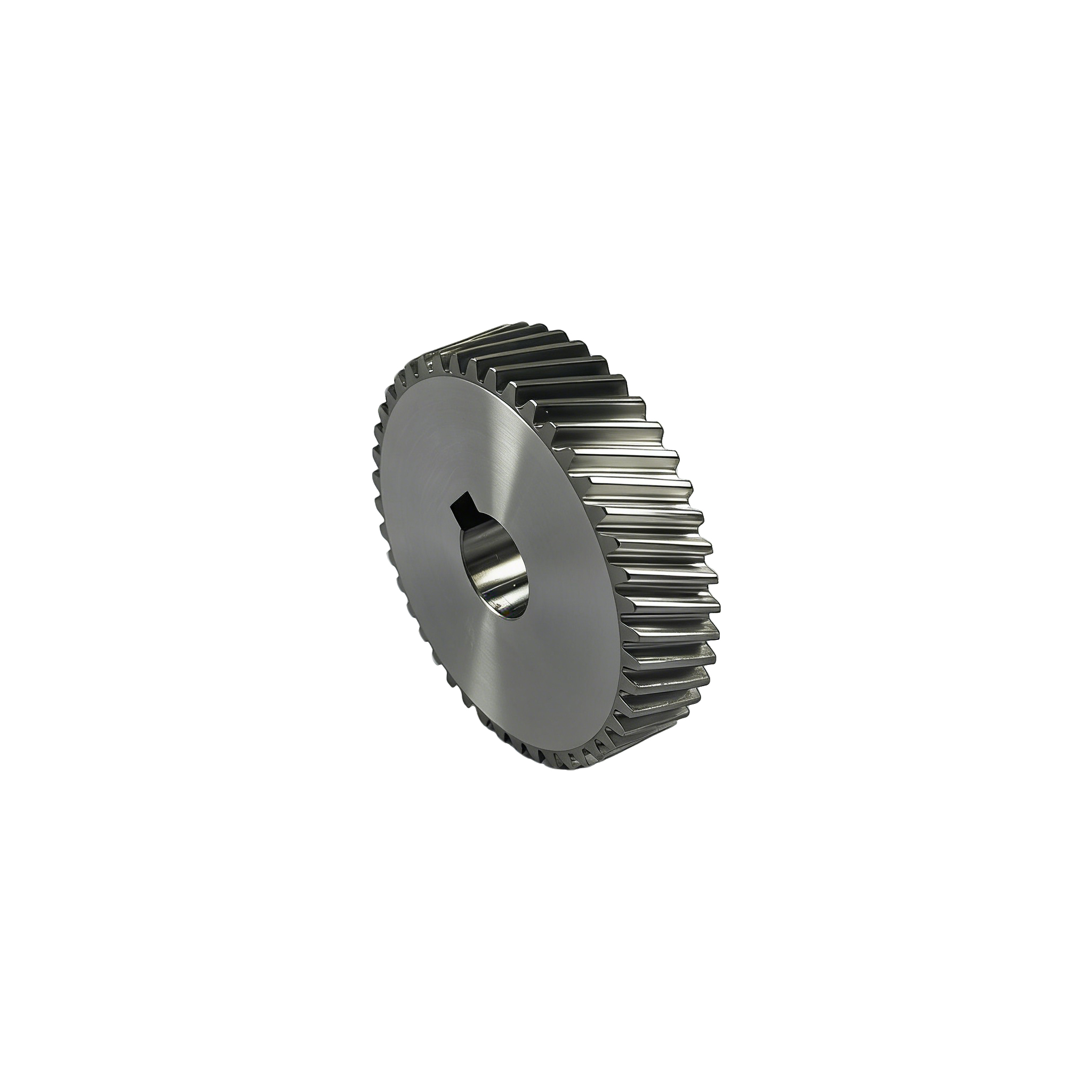

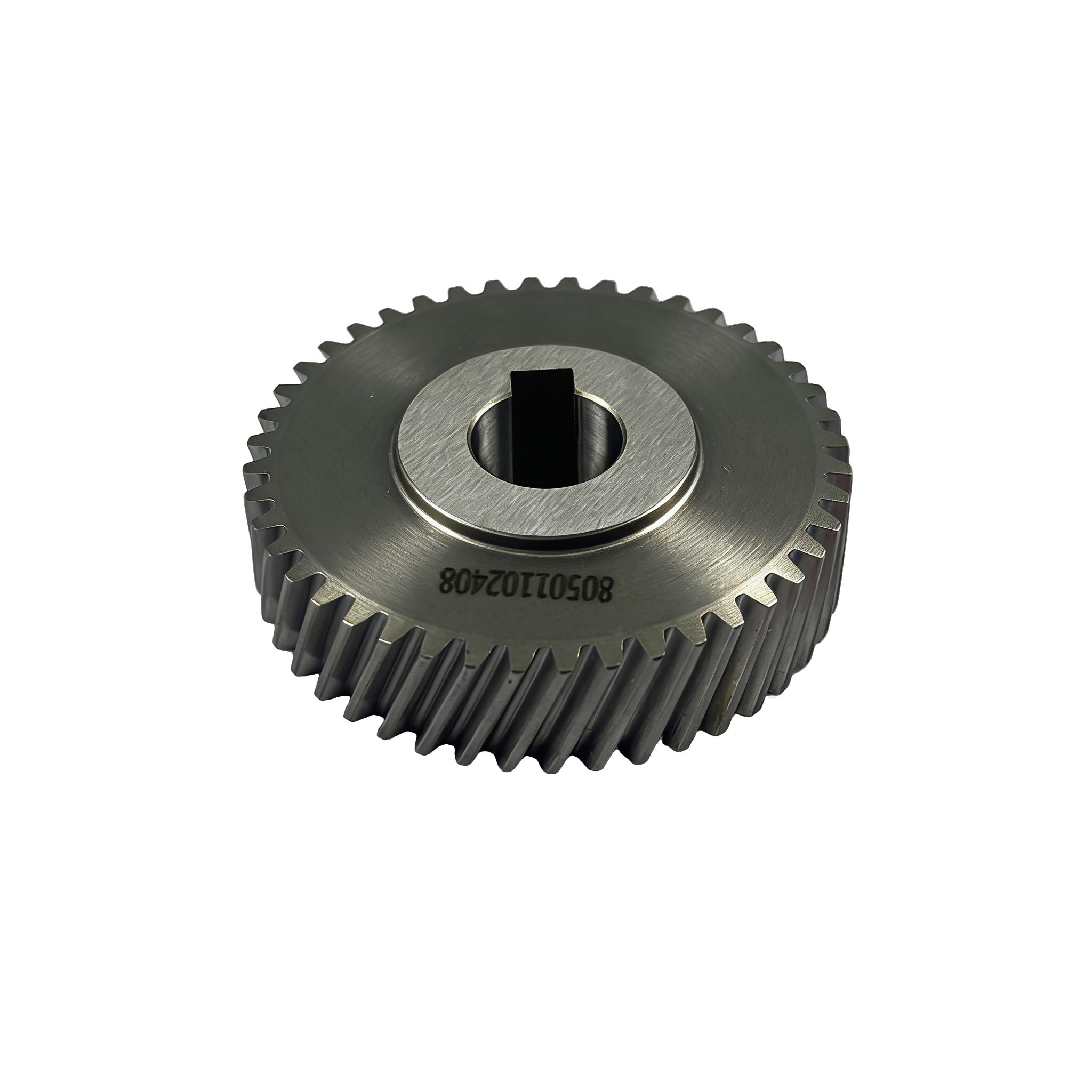

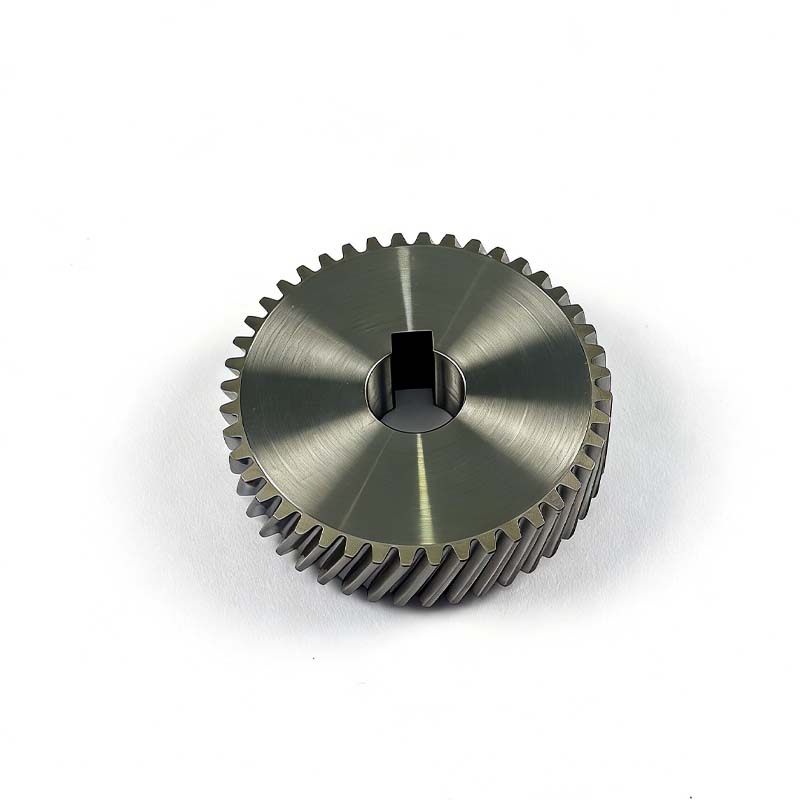

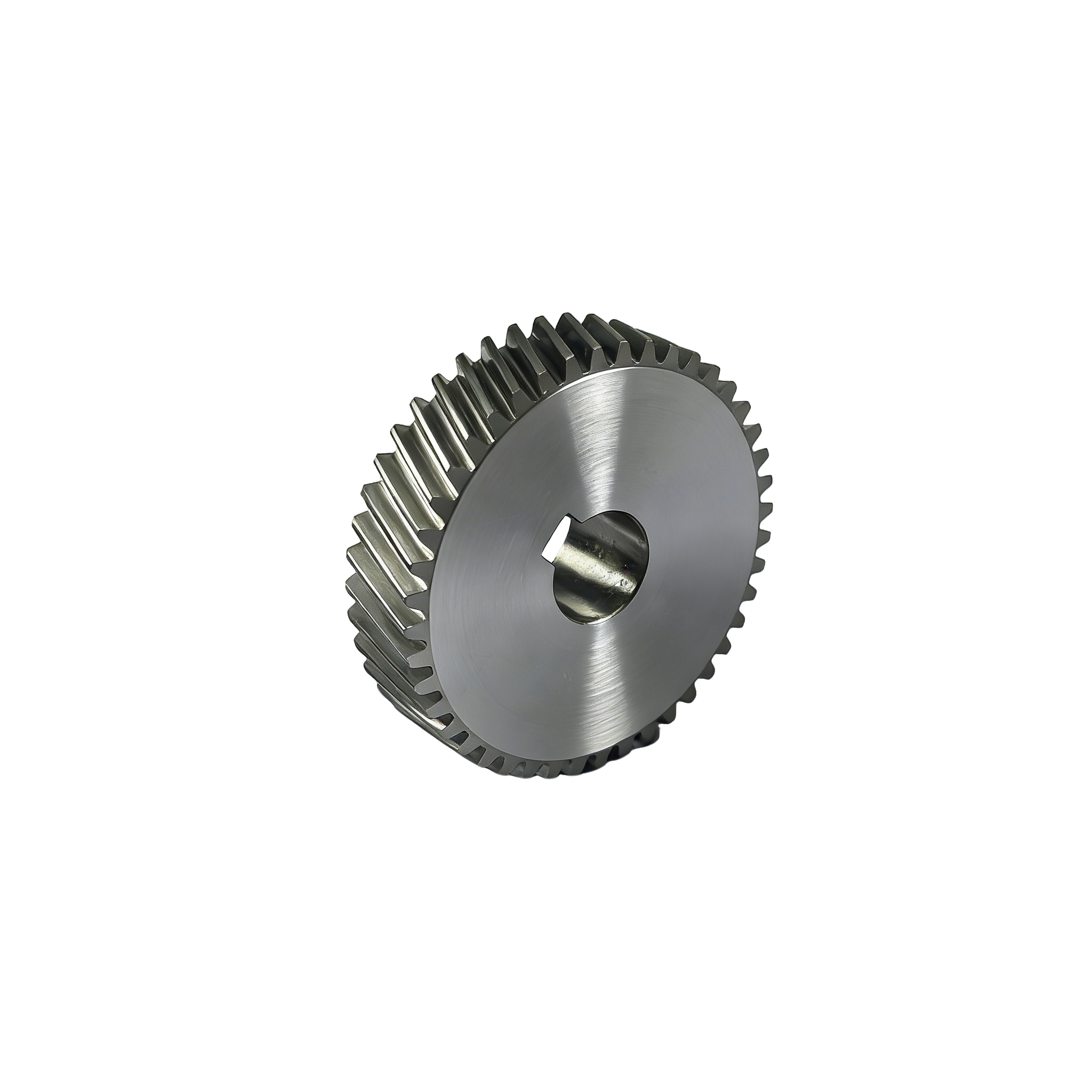

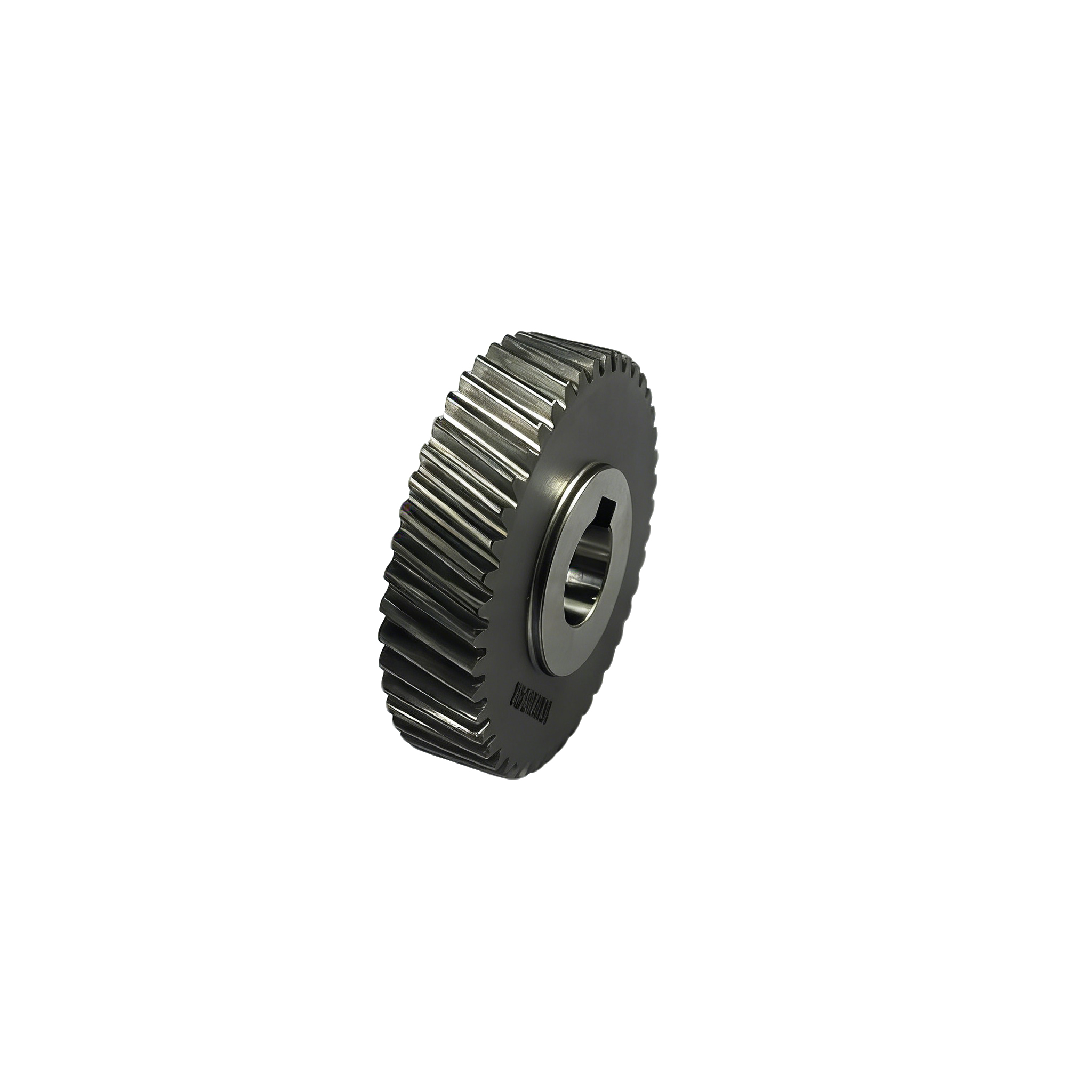

SPKJ-039-C (Part No. 80501102408, Gear 44×1) is a helical gear for reducers, with pressure angle 20°, module 1, 44 teeth, 22° right-hand helix angle, inner diameter 12 mm, addendum diameter 48.356 mm, total length 13.5 mm, weight 0.149 kg. Manufactured from 20CrMnTi through processes including sawing, turning, rough hobbing, heat treatment, shot blasting, boring & facing, total length grinding, gear grinding, wire-cut keyway and marking. It is mainly used as a transmission part in reducers.
Additional information
| weight |
0.149 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
2020692 Shaft
2020692 gear shaft (helical gear) is made of 20CrMo, with a pressure angle of 20°, module of 0.8, 8 teeth and 15° right-hand helix angle. It has a tooth outer diameter of 10.8mm, total length of 142.3mm and weight of 0.0870kg. Produced via precision processes including hobbing, heat treatment correction and multiple grinding, it is a dedicated transmission component for power tools.
2024379 Gear
The 2024379 helical gear (dedicated for power tools) has a pressure angle of 20°, module of 0.8, 35 teeth and helix angle of -15°/L. It has an inner diameter of 7.92mm, outer diameter of 30.2mm, total length of 9mm and weight of 0.0298kg. Made of 20CrMnTi material and manufactured through precision processes including normalizing, hobbing and heat treatment, it features stable transmission, wear resistance and long service life.
531.06-78 45° Helical Gear (Driven) and 531.06-77 45° Helical Gear (Driving)
531.06-78 Driven Helical Gear and 531.06-77 Driving Helical Gear are 45° helical gears made of 20CrMo, with a pressure angle of 20°, a module of 1 and 18 teeth. Processed via multiple precision procedures, they realize precise meshing and stable transmission, and are suitable for the transmission system of sewing equipment.
855718 Finished Lower Shaft Main Gear and 855717 Hook Shaft Pinion
855718 Finished Lower Shaft Main Gear and 855717 Hook Shaft Pinion are helical gears made of 20CrMo, with a pressure angle of 20° and a module of 1, and their helix angles are set as 15°/R and 15°/L respectively. Processed via multiple precision manufacturing procedures, they are suitable for the transmission system of sewing equipment, delivering stable transmission with excellent wear resistance.
D-94-172270-91 Presser Foot Lifting Gear
The D-94-172270-91 Presser Foot Lifting Gear is a helical gear made of 20CrMnTi, featuring a pressure angle of 20°, a module of 1 and 72 teeth. Processed via multiple precision procedures, it offers excellent wear resistance and corrosion protection, and is ideal for the presser foot lifting mechanism of sewing equipment with accurate and stable transmission performance.
Z-91-145220-05 Pinion
Z-91-145220-05 pinion (helical gear) is made of 20CrMo, with a pressure angle of 20°, module of 0.9769, 15 teeth and 45° left-hand helix angle. Produced via precision processes including hobbing, heat treatment and demagnetization, it has a tooth outer diameter of 22.66mm, total length of 17mm and weight of 0.0258kg, and acts as a dedicated transmission component for sewing equipment.
