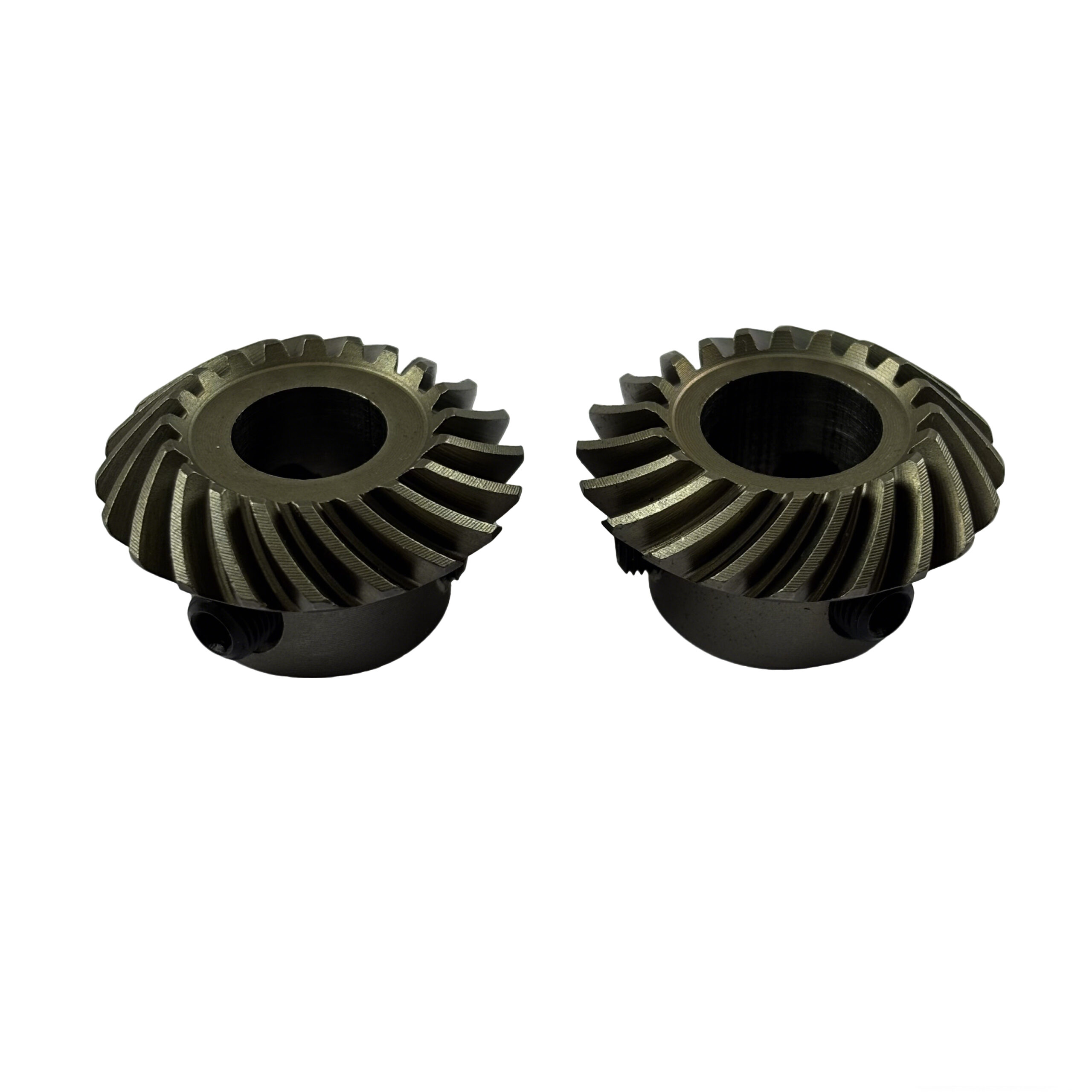

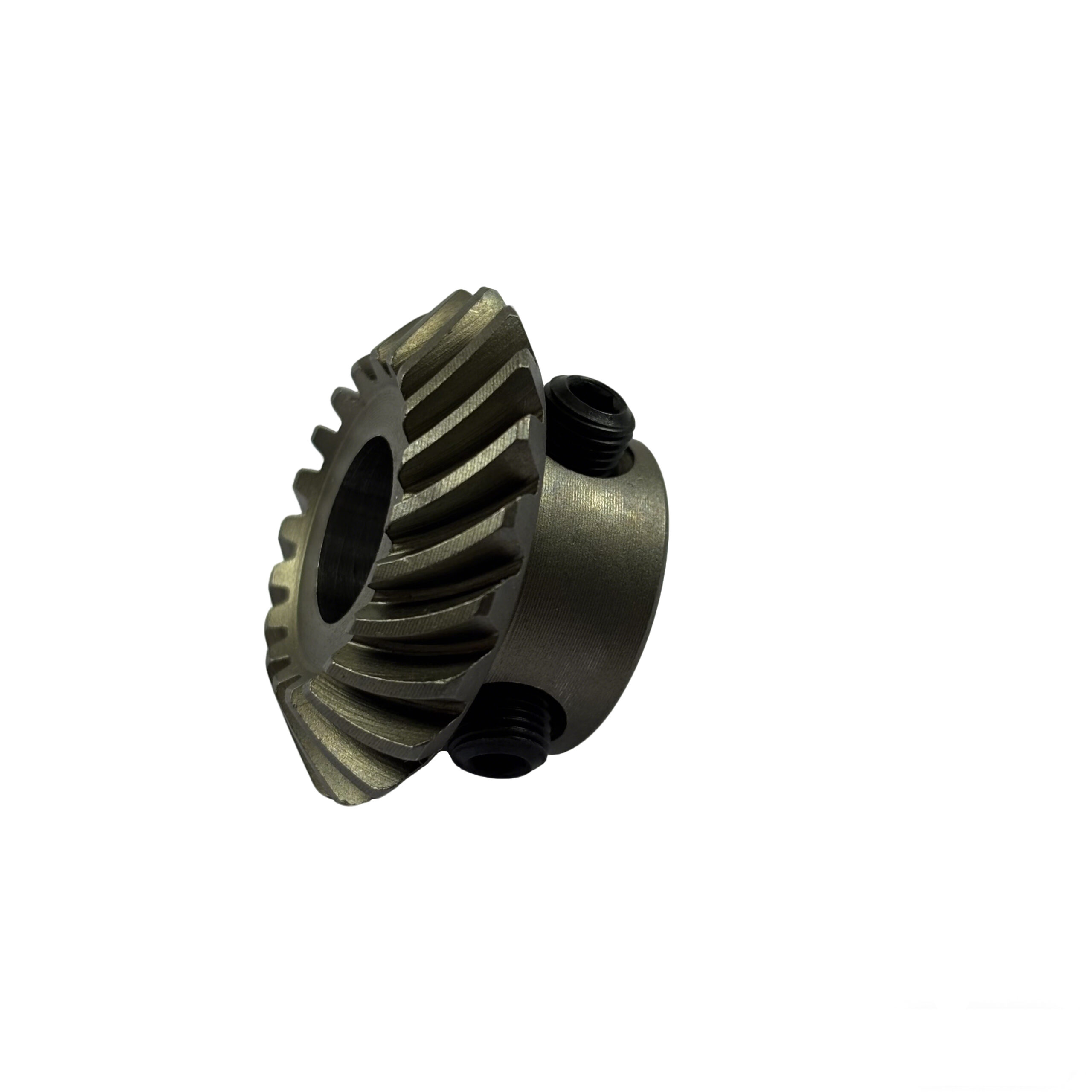

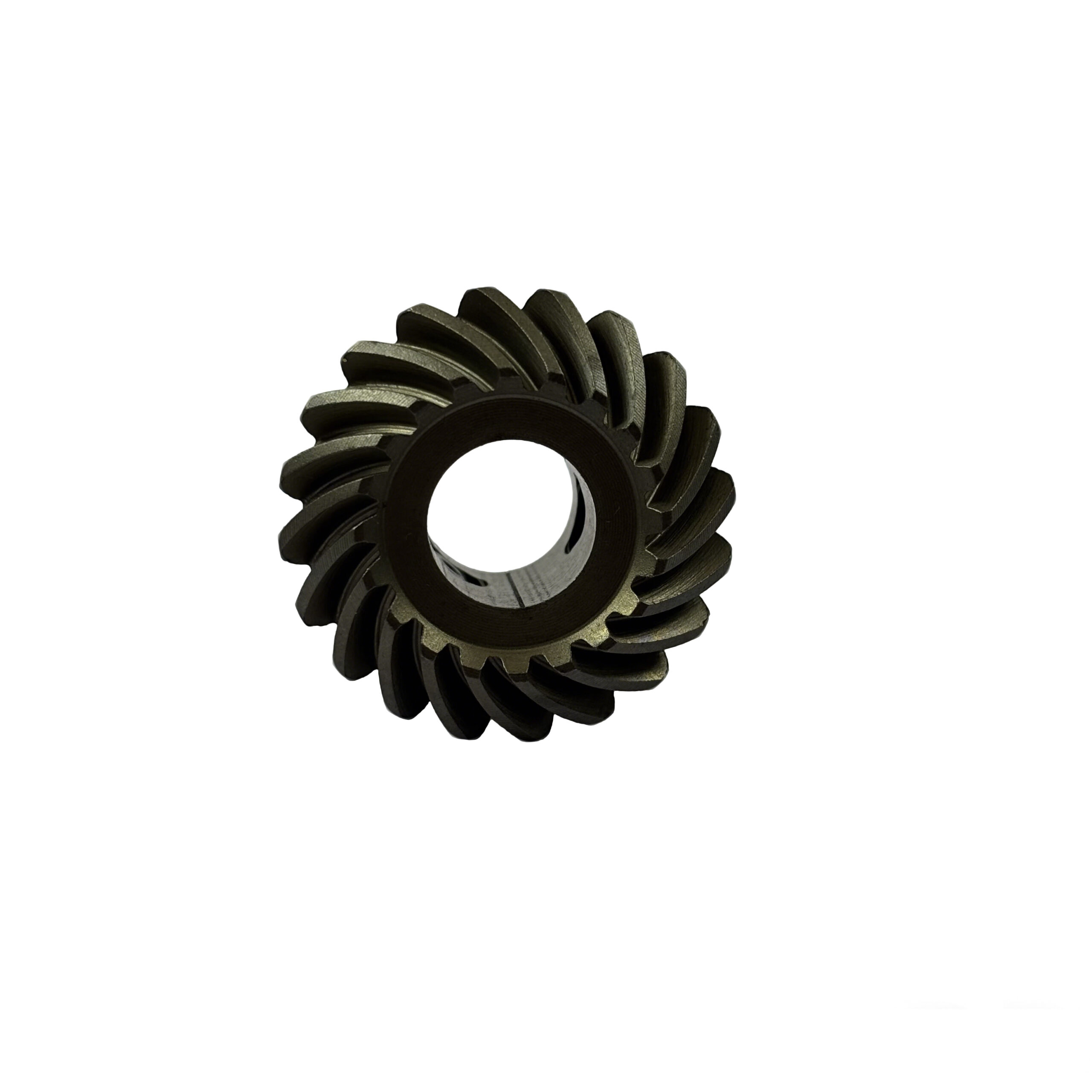

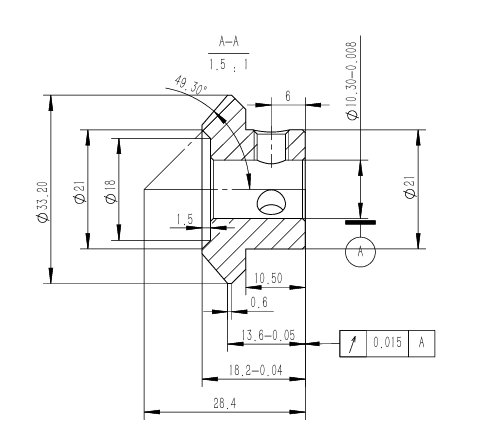

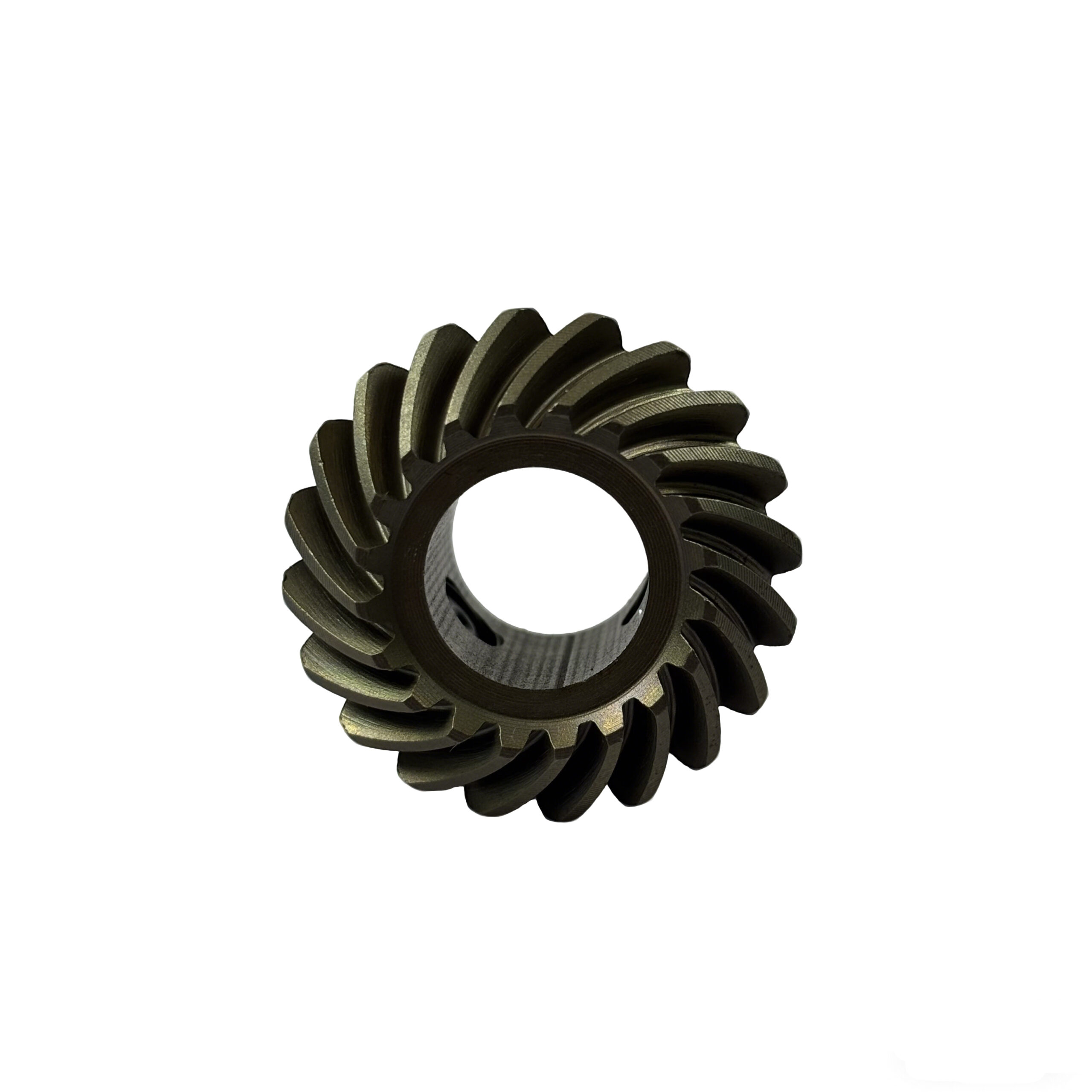

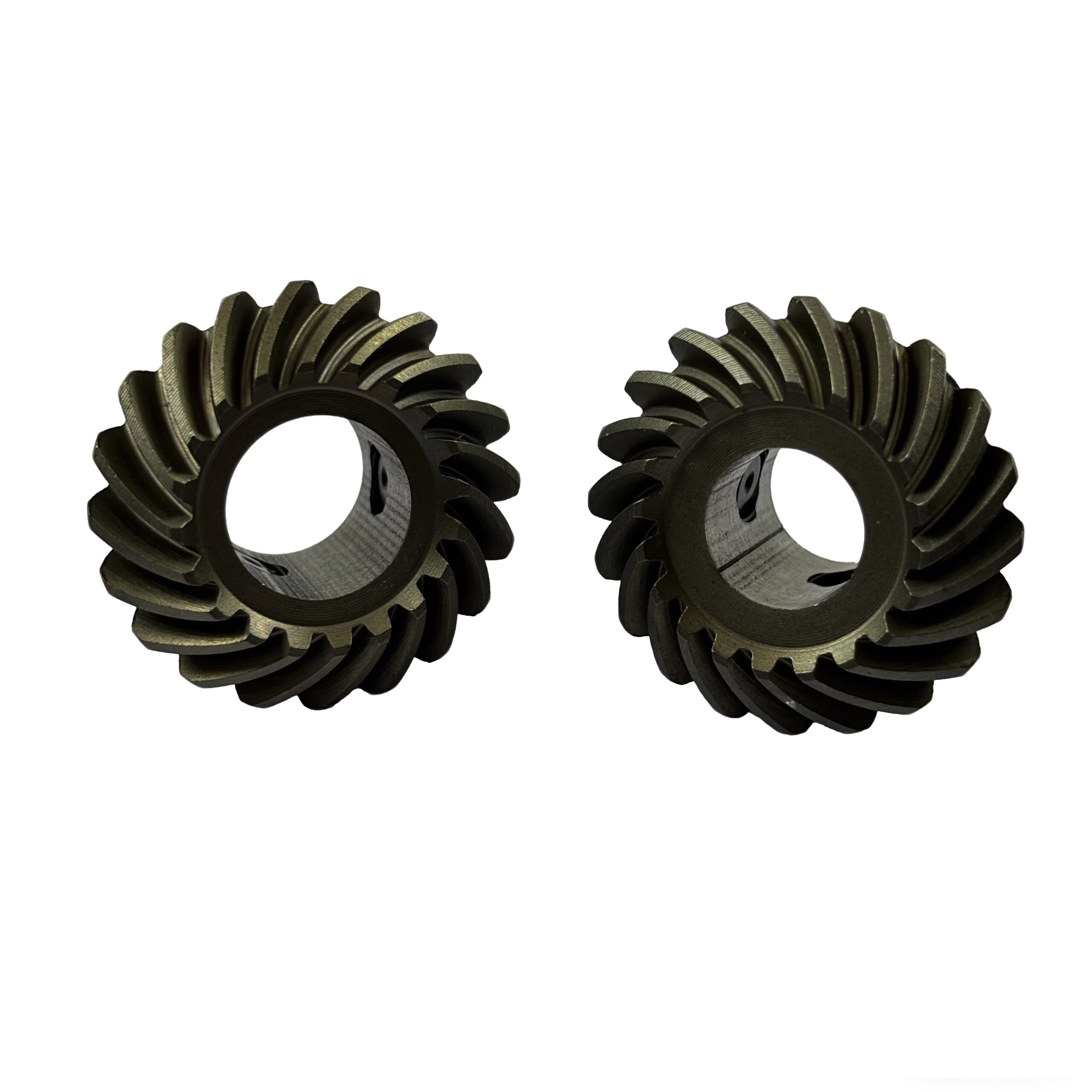

6K – Lower Vertical Shaft & Lower Shaft Bevel Gear (Left – Hand Rotation)and6K – Lower Vertical Shaft & Lower Shaft Bevel Gear (Right – Hand Rotation)
$2.52piece
描述
其他信息
| BZK-002-CandBZK-003-C weight |
0.0452and0.0452 |
|---|---|
| BZK-002-CandBZK-003-C Core Components |
gear |
| BZK-002-CandBZK-003-C Craftsmanship |
Hobbing |
用户评价 (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
相关产品
2024498 Gear
2024498 Spiral Bevel Gear is made of 20CrMo material and manufactured through multiple precision processes including normalizing, gear milling and heat treatment. With a pressure angle of 20°, module of 1.5, 21 teeth and helix angle of 35°/R, it features a compact size (outer diameter of tooth part: 31.4mm, total length: 11.6mm, weight: 0.13kg). Characterized by stable and efficient transmission, it is a high-precision transmission accessory dedicated to power tools.
32721.150020 Bevel Gear-32721.150010 Bevel Gear
32721 series spiral bevel gears (including 32721.150020/32721.150010) are specially designed for sewing equipment. Made of 20CrMo, they are manufactured through full-process precision processes such as normalizing and turning + full appearance inspection. Core parameters: pressure angle 17°30′, module 1.05, helix angle 40° (right-hand/left-hand rotation respectively); Model 150020: 18 teeth, speed ratio 2, inner diameter 8mm, addendum diameter 21mm, weight 0.0118kg; Model 150010: 36 teeth, inner diameter 15mm, addendum diameter 38.33mm, weight 0.0428kg. Suitable for transmission of sewing equipment, with precise transmission, stability and durability.
CJBB002F-1 (5-hole outer diameter non-turned) Finished Product
CJBB002F-1 (5-hole outer diameter non-turned) finished spiral bevel gear features a pressure angle of 20°, module of 1.2118, spiral angle of 35°/L, inner diameter of 5mm, tooth outer diameter of 11.6mm and total length of 19.5mm. It is a dedicated core transmission component for reducers with simplified processes and stable transmission performance.
HL-T19 Right-hand Gear
HL-T19 right-hand spiral bevel gear (exclusive for sewing machinery): 20° pressure angle, 1.3 module, 19 teeth, 35°/R spiral angle, 10mm inner diameter, 25mm shaft diameter, 24.7mm outer tooth diameter, 49.92mm overall length, 0.3003kg weight. Made of 20CrMo via multi-step precision processes, it meets the transmission needs of sewing equipment.
Top Feed Drive Gear
Top Feed Spiral Bevel Drive Gear (exclusive for sewing machinery): 20° pressure angle, 1 module, 26 teeth, 35°/L spiral angle, 7mm inner diameter, 26mm outer tooth diameter, 12.7mm overall length, 0.0294kg weight. Made of 20CrMo via multi-step precision processes, it meets the transmission needs of the top feed mechanism of sewing equipment.
