2024238 Finished Product
$2.00piece

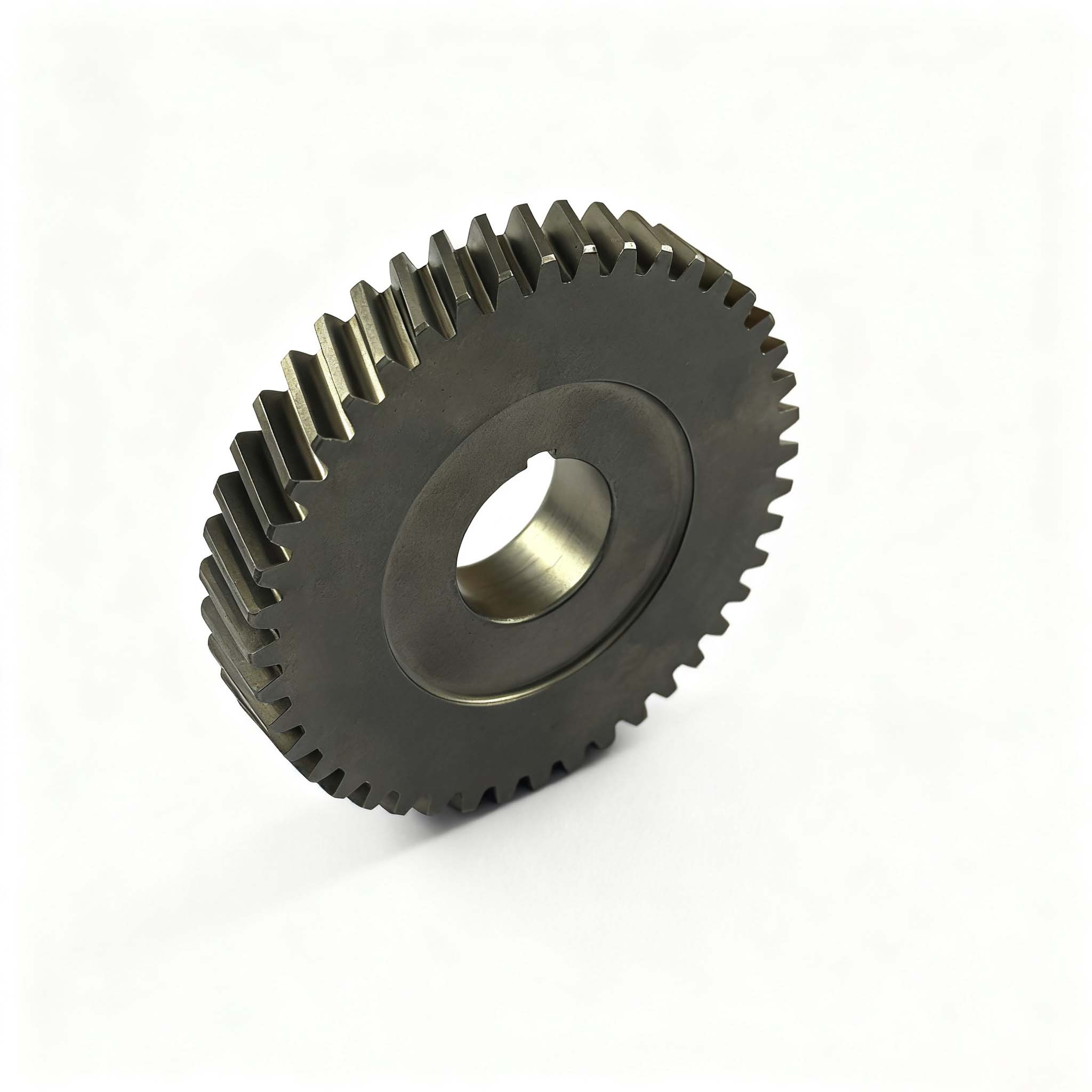

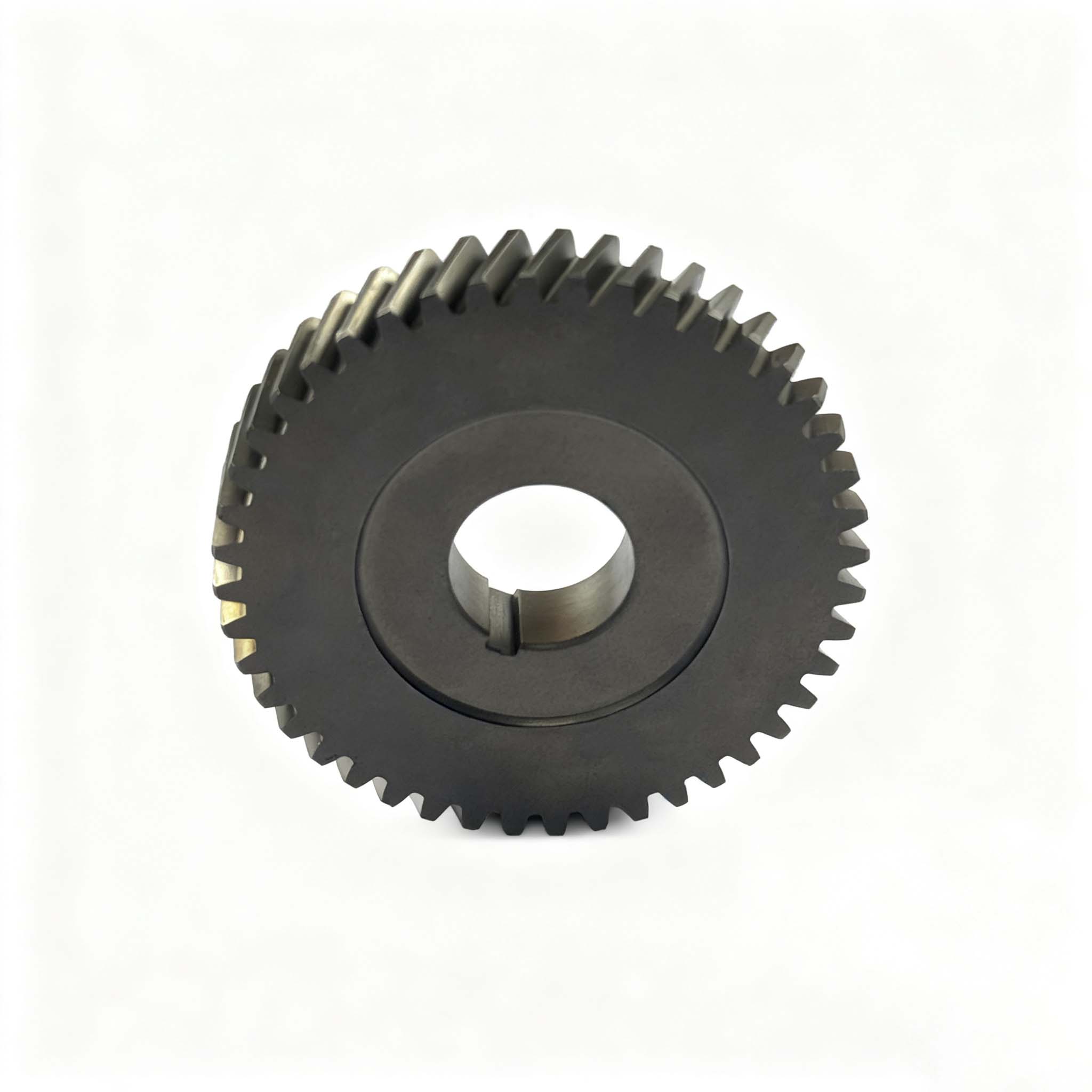

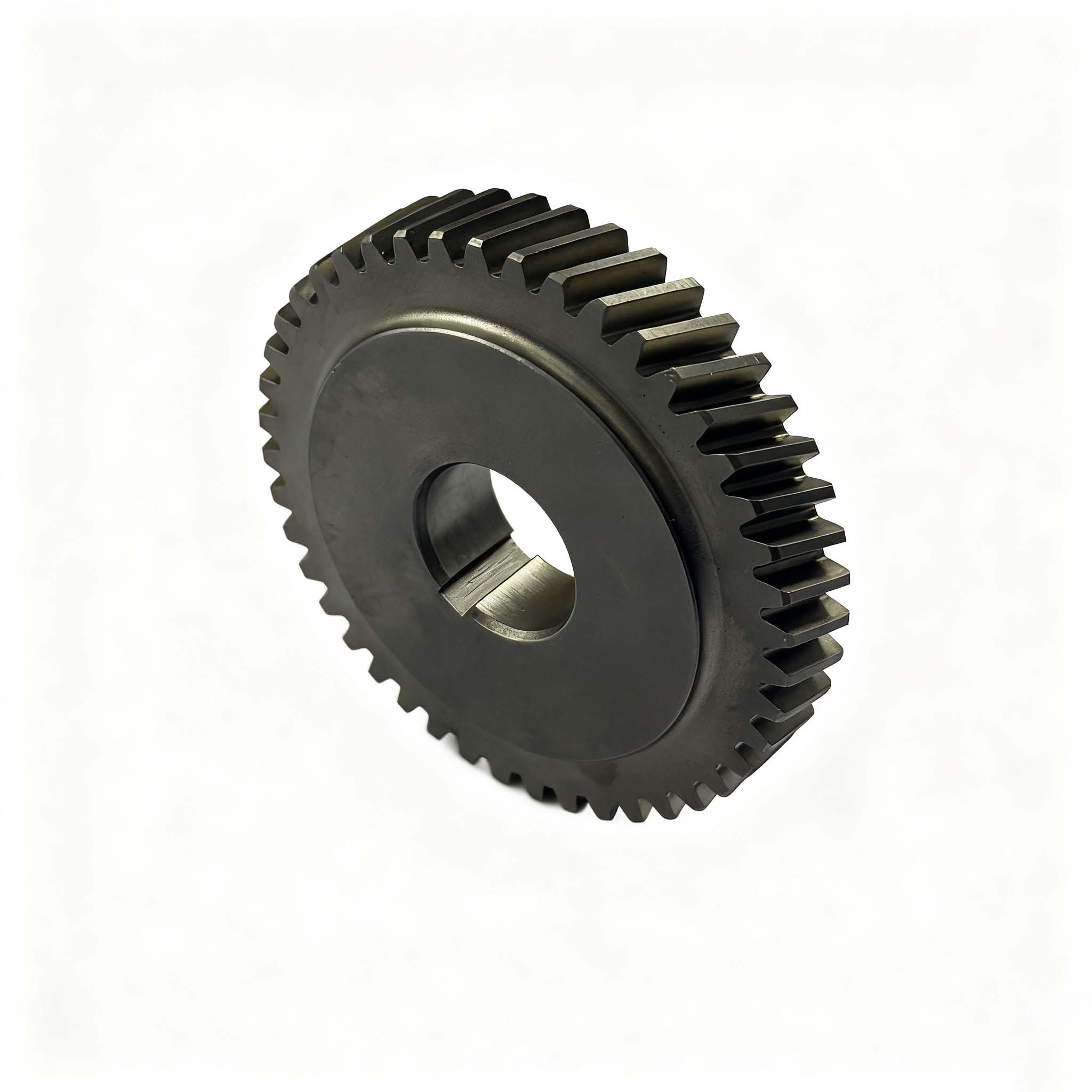

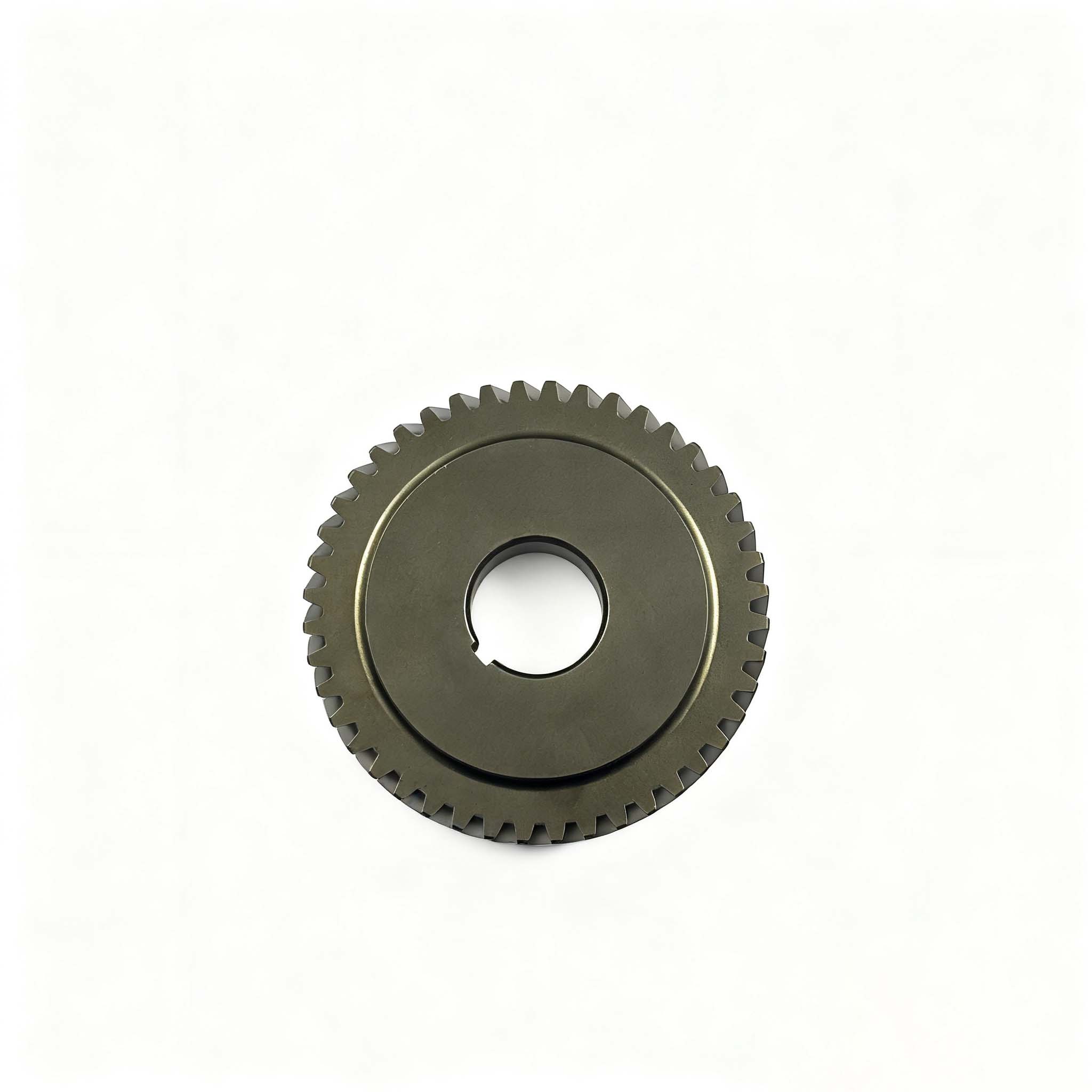

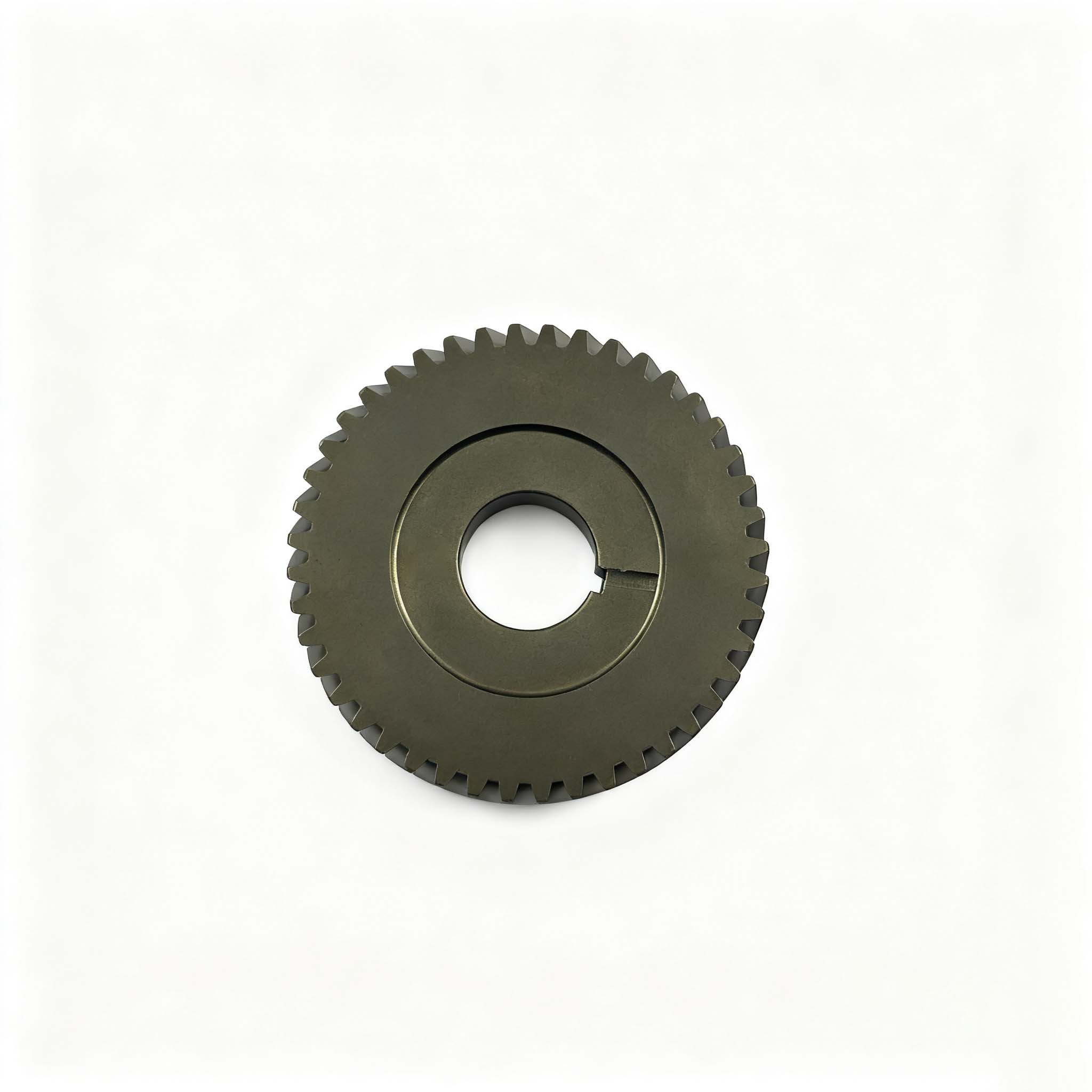

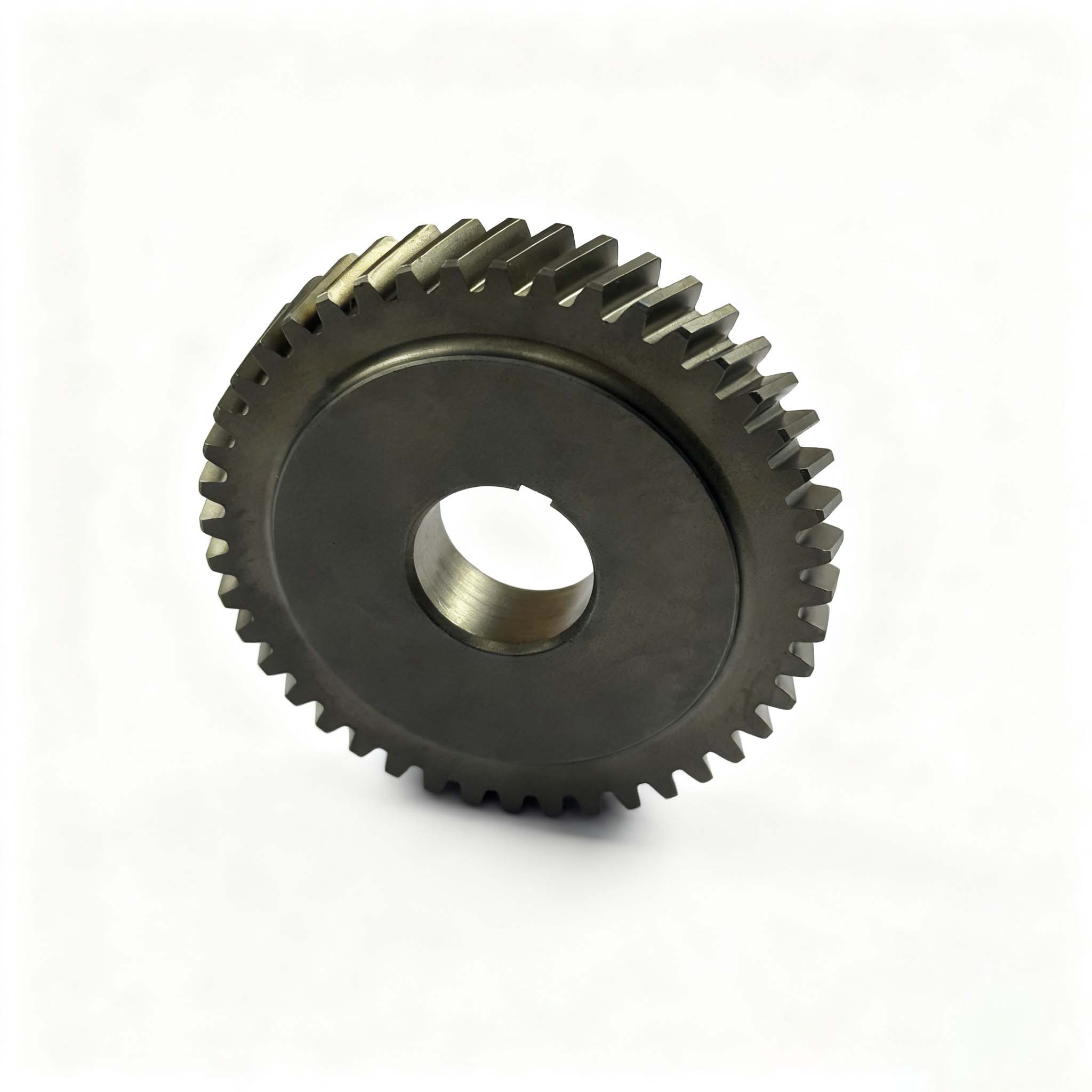

QY-023-C Spur Gear, 20CrMnTi, module 1.25, 44T, bore Ø17mm, L=12mm, precision machined for power tools.
描述
Model: QY-023-C (2024238 Finished Product)
This is a spur gear for power tools, made of 20CrMnTi alloy structural steel.
Parameters: pressure angle 20°, module 1.25, 44 teeth, helix angle 0°, inner bore 17mm, gear outer diameter 44mm, total length 12mm, weight 0.1981kg.
Process: normalizing, turning, gear hobbing, heat treatment, shot blasting, reaming and full visual inspection.
With high dimensional accuracy and good wear resistance, it is suitable for transmission in power tools.
其他信息
| weight |
0.1981 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
