2.5M-23R Bevel Gear, Right-hand and 2.5M-23L Bevel Gear, Left-hand
$21.00piece
A pair of spiral bevel gears made of 20CrMnTi, module 2.5, 23 teeth, 20° pressure angle, one right-hand and one left-hand with the same dimensions, precision machined for reducers.
描述

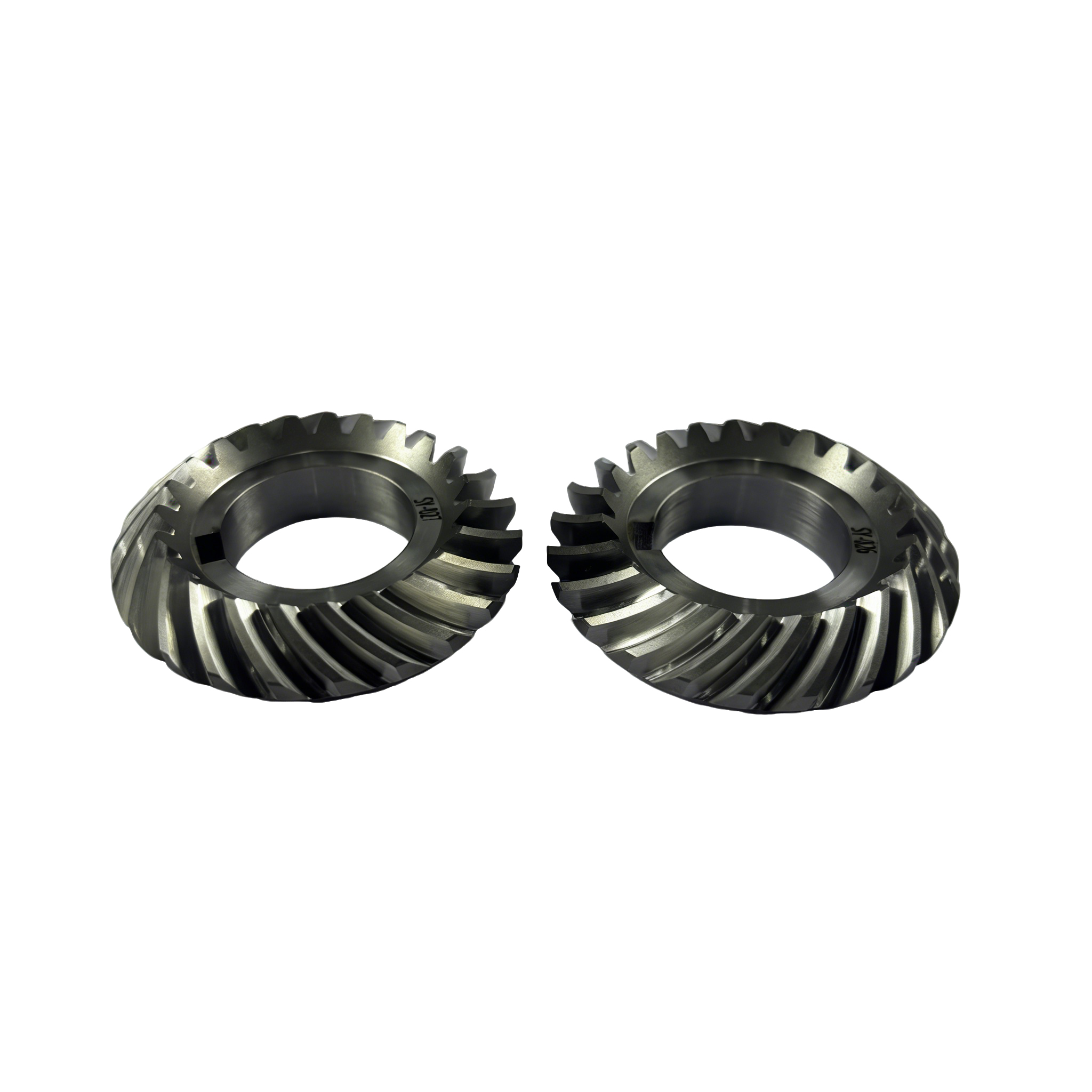

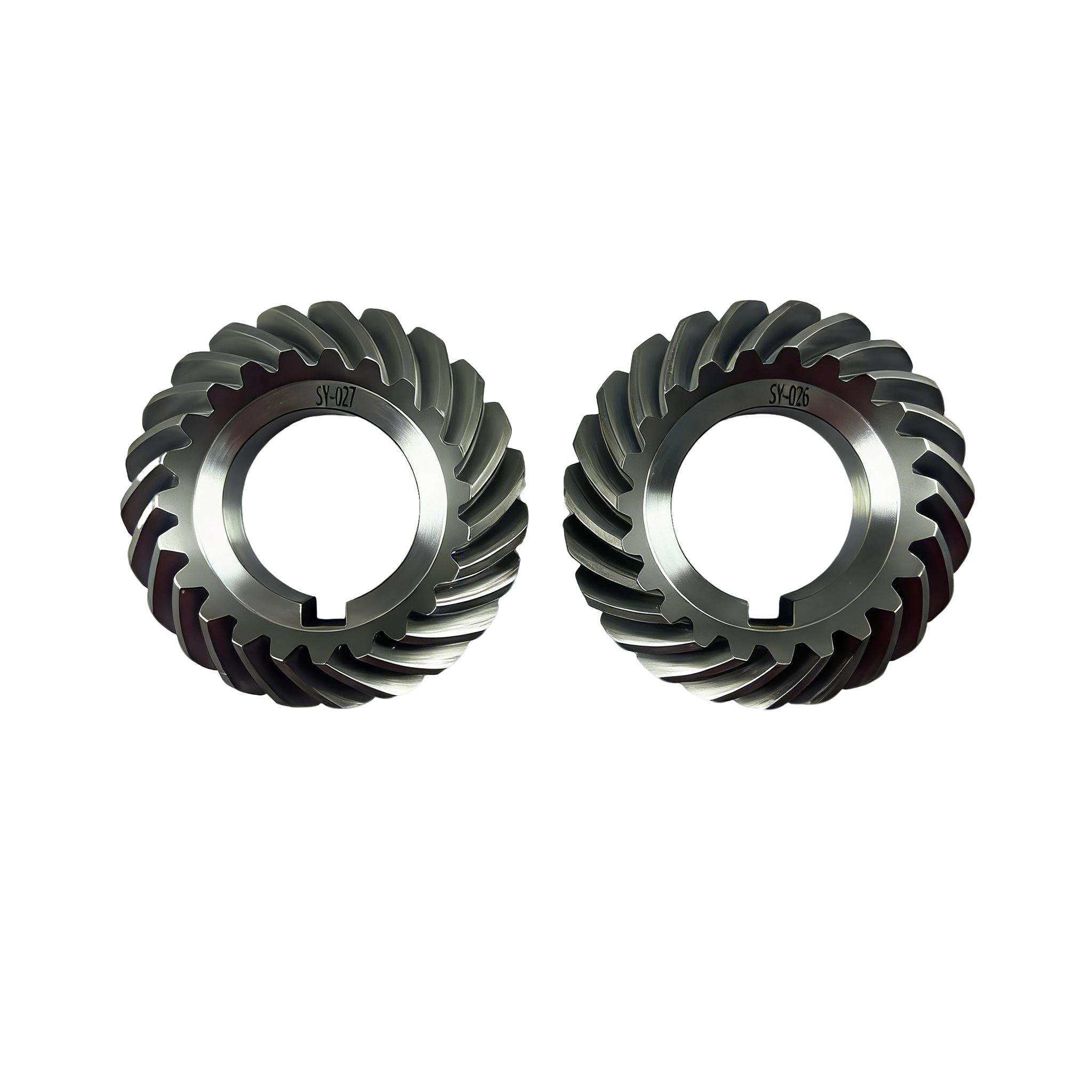

This series includes a pair of matched spiral bevel gears for reducers:

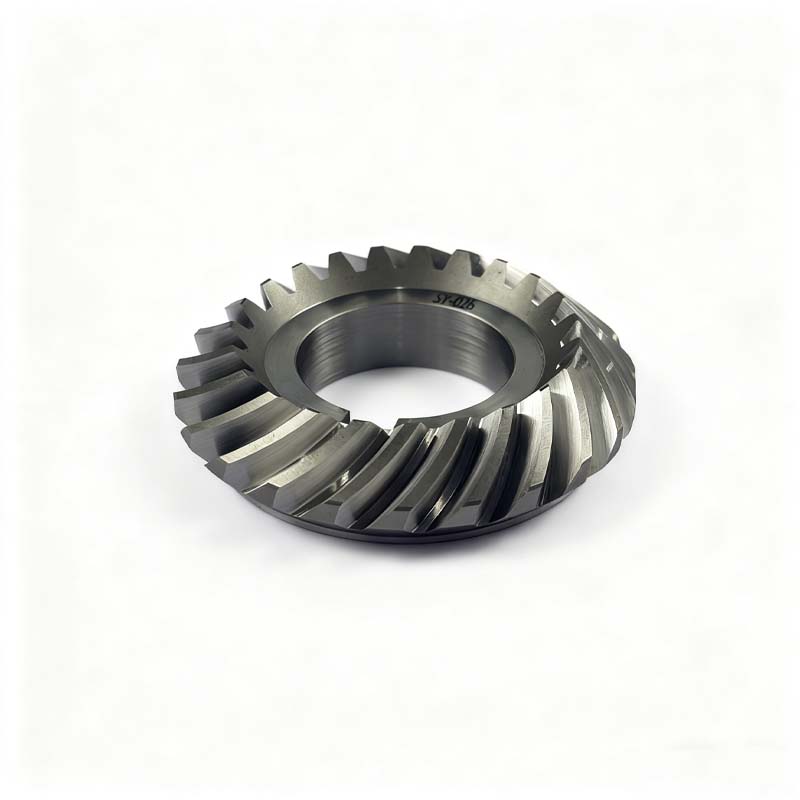

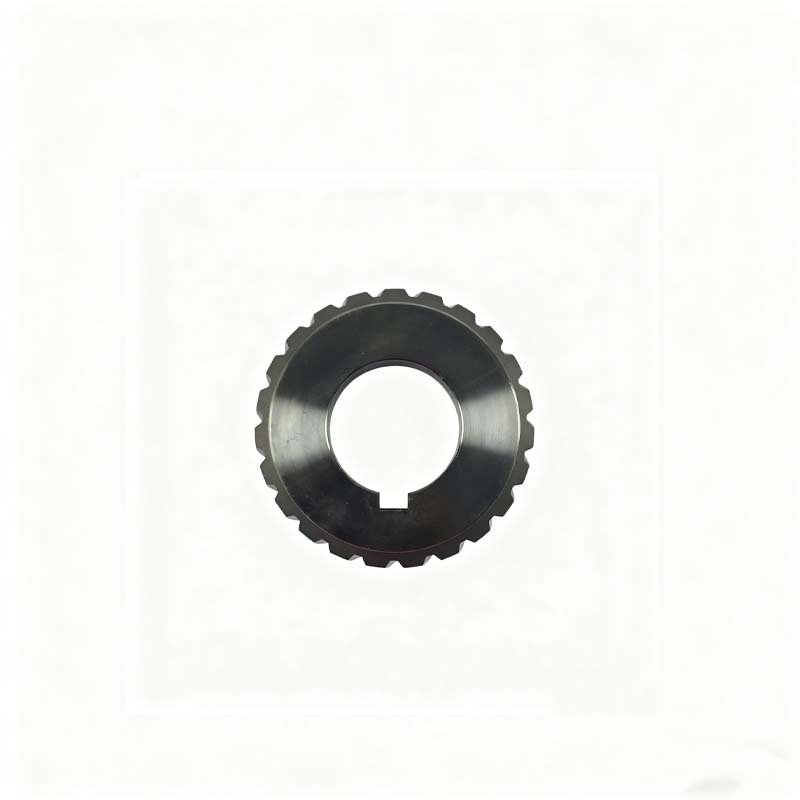

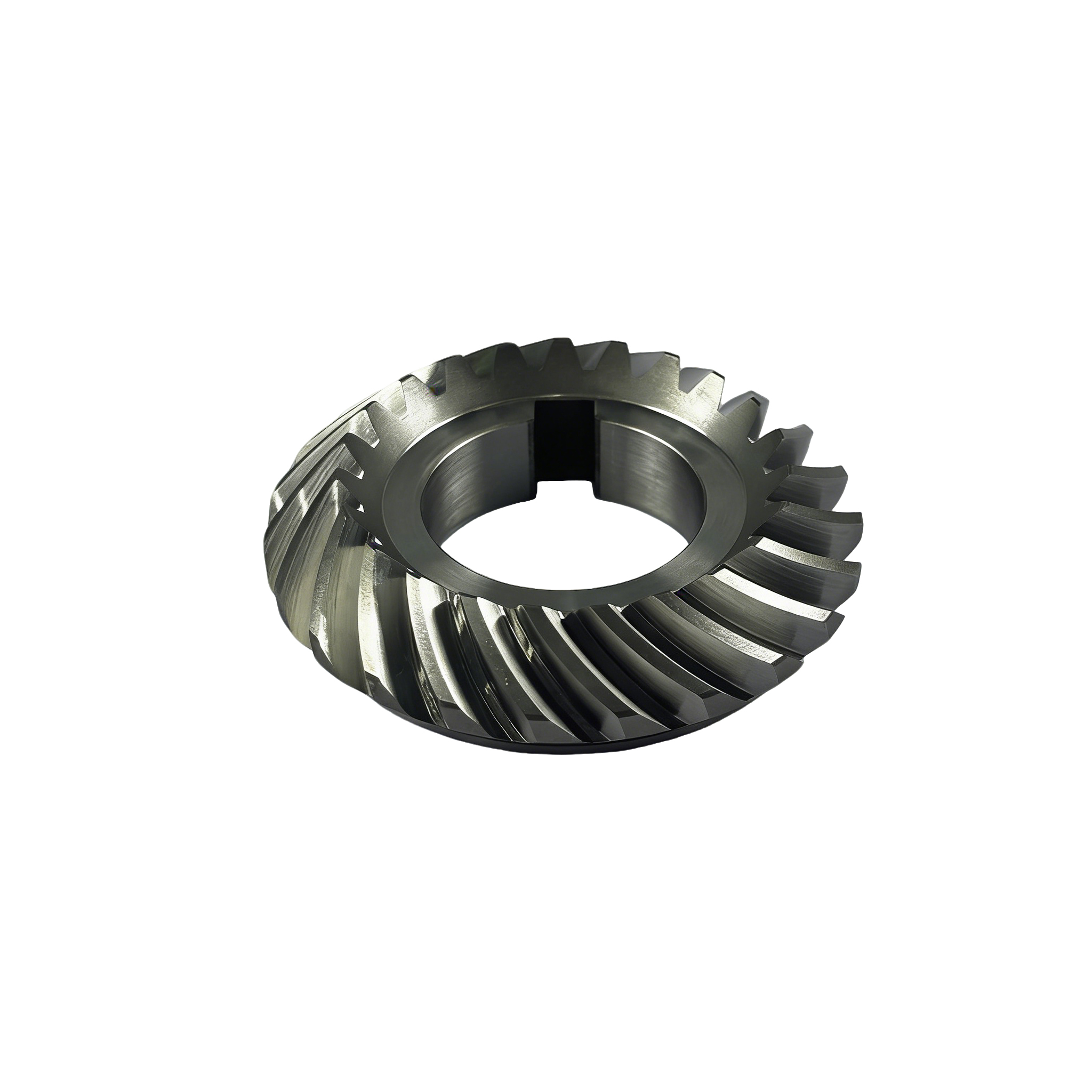

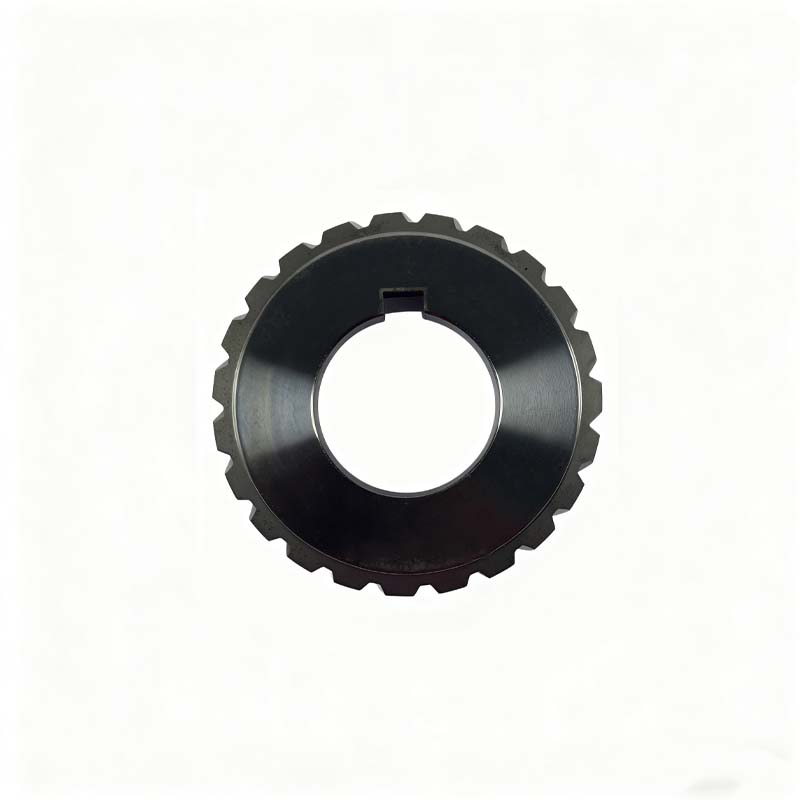

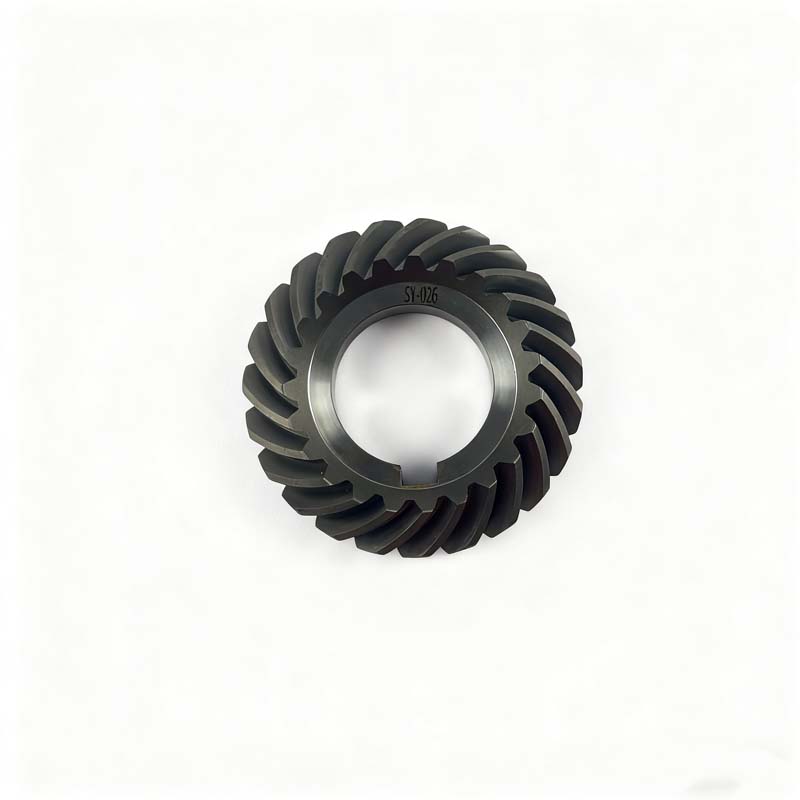

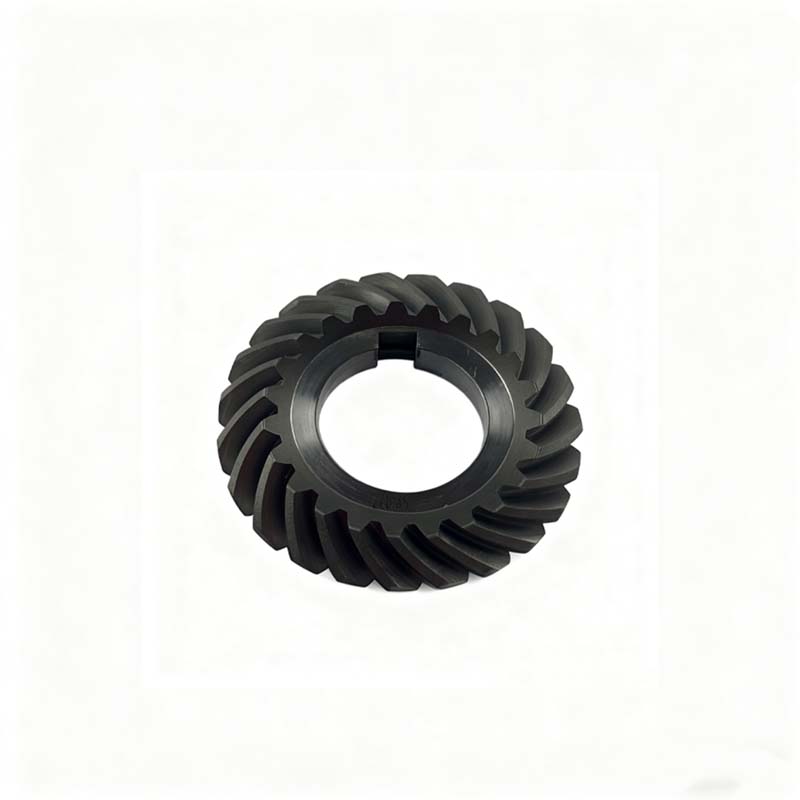

- SuYou-026-C (2.5M-23R Right-hand Bevel Gear): 20° pressure angle, module 2.5, 23 teeth, 35° right-hand spiral, inner diameter 27mm, gear OD 57.5mm, total length 14.3mm, weight 0.1393kg.
- SuYou-027-C (2.5M-23L Left-hand Bevel Gear): 20° pressure angle, module 2.5, 23 teeth, 35° left-hand spiral, inner diameter 27mm, gear OD 57.5mm, total length 14.3mm, weight 0.1393kg.
Both gears are made of 20CrMnTi and manufactured through precise processes including sawing, turning, rough gear milling, heat treatment, shot blasting, reaming, wire-cut keyway, boring, end facing, turning and gear grinding. With high strength and good wear resistance, they are designed for reducer transmission systems.
其他信息
| SuYou-026-C and SuYou-027-C weight |
0.1393and0.1393 |
|---|---|
| SuYou-026-C and SuYou-027-C Core Components |
gear |
| SuYou-026-C and SuYou-027-C Craftsmanship |
Milling |
