12BGL-8X-Head-006-Lower Shaft Gear-52-1.25
The 12BGL-8X-Head-006-Lower Shaft Gear-52-1.25 is a dedicated spur gear for sewing equipment. Crafted from 20CrMo material, it undergoes a series of precision processes including sawing, hobbing, heat treatment and blackening. With a pressure angle of 20°, module of 1.25, 52 teeth, inner diameter of 20mm, addendum circle diameter of 67.5mm, total length of 45mm and weight of 0.5575kg, it can transmit power stably and is suitable for the transmission systems of various industrial sewing machines.
1533-6 Tooth Gear and 1533-T36 Gear
1533-6 Tooth Helical Gear: 20CrMo helical gear for sewing machines, module 0.8, 6 teeth, 15.12°R helix angle, precision-engineered, stable and efficient transmission
1533-T36 Helical Gear: 20CrMo helical gear for sewing equipment, module 0.8, 36 teeth, 15.12°R helix angle, high-precision, strong adaptability

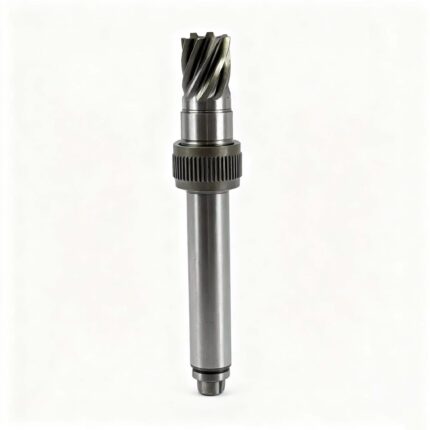

2020692 Shaft
2020692 gear shaft (helical gear) is made of 20CrMo, with a pressure angle of 20°, module of 0.8, 8 teeth and 15° right-hand helix angle. It has a tooth outer diameter of 10.8mm, total length of 142.3mm and weight of 0.0870kg. Produced via precision processes including hobbing, heat treatment correction and multiple grinding, it is a dedicated transmission component for power tools.
2020909 PINION GEAR
Model 2020909 helical gear is made of 20CrMo, refined through multiple processes including normalizing, hobbing and heat treatment. It has a pressure angle of 20°, module of 0.75, 7 teeth, shaft diameter of 8mm, tooth outer diameter of 7.3mm and weight of 0.0227kg, serving as a dedicated transmission component for power tools.
2024351 Finished Product
The 2024351 finished helical gear (dedicated for power tools) has a pressure angle of 20°, module of 1.25, 41 teeth and helix angle of 5°/R. With an inner diameter of 16mm, outer diameter of 53.45mm, total length of 10mm and weight of 0.0962kg, it is made of 20CrMnTi material through precision processes including normalizing, hobbing and heat treatment, featuring stable transmission, wear resistance and impact resistance.
2024356
Model QY-011-C/2024356 helical gear is made of 20CrMo, with a pressure angle of 20°, module of 1.25, 41 teeth and 20° right-hand helix angle. Produced via multiple processes including hobbing and heat treatment, it has a tooth outer diameter of 56.8mm and weight of 0.138kg, serving as a dedicated transmission component for power tools.
2024409（2024502）
The 2024409 (2024502) helical gear (dedicated for power tools) has a pressure angle of 20°, module of 1.25, 19 teeth and helix angle of 20°/R. With an inner diameter of 17mm, outer diameter of 28.9mm, total length of 12mm and weight of 0.0289kg, it is made of 20CrMnTi material through precision processes including normalizing, hobbing and heat treatment, featuring stable transmission, wear resistance and impact resistance.
2024421(2024524)
The 2024421 (2024524) helical gear (dedicated for power tools) has a pressure angle of 20°, module of 1.25, 51 teeth and helix angle of 20°/L. With an inner diameter of 14mm, outer diameter of 69.5mm, total length of 10.5mm and weight of 0.1747kg, it is made of 20CrMo material through precision processes including normalizing, hobbing, heat treatment and boring. It is characterized by high torque resistance, stable transmission and long service life.
211WF1-014 Finished Hook Shaft Pinion and 211WF1-005 Finished Lower Shaft Main Gear
211WF1-014 Finished Hook Shaft Pinion and 211WF1-005 Finished Lower Shaft Main Gear are finished helical gears made of 20Cr, with a pressure angle of 20° and a module of 1, and both have a helix angle of 45°/L. Processed via multiple precision manufacturing procedures, they are suitable for the transmission system of sewing equipment, delivering stable transmission with excellent wear resistance.
220825005 X Pinion Gear
220825005 X Spur Gear: Pressure angle 20°, module 1, 34 teeth; inner diameter 19/15, outer tooth diameter 36mm, total length 29mm. Made of 20CrMo material through multiple precision processing and heat treatment processes. Specialized transmission component for sewing equipment, with stable and reliable transmission.
