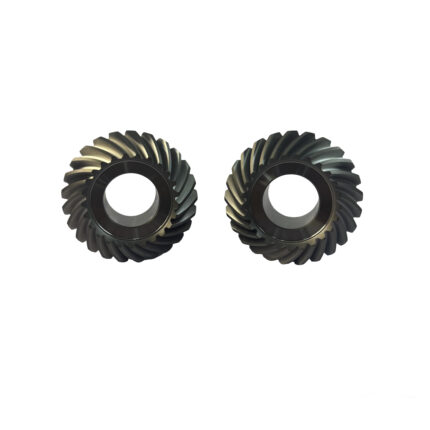

03.08.0001-L (1.5M 21Z) Left-hand Gear and 03.08.0001-R (1.5M 21Z) Right-hand Gear
03.08.0049-L (Bevel Gear – L)
1530 Zigzag Sewing Gear, Left-Hand, Short and 1530 Zigzag Stitch Gear, Right-Hand, Long
2.5M-23R Bevel Gear, Right-hand and 2.5M-23L Bevel Gear, Left-hand
2020802
2020802 Spiral Bevel Gear is a dedicated transmission component for electric tools. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.5, 18 teeth, and a spiral angle of 35°/L, with a shaft diameter of 12mm, an outer diameter of 29.165mm, a total length of 145.5mm, and a single weight of 0.147kg. Produced via multiple correction and precision machining procedures, it features accurate transmission and high stability.
2024044
2024044 Spiral Bevel Gear is a dedicated transmission component for electric tools. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.5, 38 teeth, and a spiral angle of 35°/R, with an inner diameter of 37mm, an outer diameter of 57.4mm, a total length of 33.49mm, and a single weight of 0.1706kg. Produced via multiple precision machining and full inspection procedures, it ensures stable transmission and high durability.
2024413（2024405 )
2024413 (2024405) Spiral Bevel Gear is a dedicated transmission component for electric tools. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.75, 7 teeth, and a spiral angle of 35°/L, with a shaft diameter of 12mm, an outer diameter of 17.1mm, a total length of 41mm, and a single weight of 0.0344kg. Produced via multiple grinding and full inspection procedures, it features high transmission accuracy and low loss.
2024479 Gear
2024479 Spiral Bevel Gear is a dedicated transmission component for electric tools. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.5, 47 teeth, and a spiral angle of 35°/R, with an inner diameter of 14mm, an outer diameter of 68.8mm, a total length of 18.05mm, and a single weight of 0.2636kg. Produced via multiple precision machining and full inspection procedures, it delivers stable transmission and high durability.
2024498 Gear
2024498 Spiral Bevel Gear is made of 20CrMo material and manufactured through multiple precision processes including normalizing, gear milling and heat treatment. With a pressure angle of 20°, module of 1.5, 21 teeth and helix angle of 35°/R, it features a compact size (outer diameter of tooth part: 31.4mm, total length: 11.6mm, weight: 0.13kg). Characterized by stable and efficient transmission, it is a high-precision transmission accessory dedicated to power tools.
221225008 Bobbin Shaft Gear (Z-stitch Sewing Machine) and 221225007 Lower Shaft Gear (Z-stitch Sewing Machine)
32721.150020 Bevel Gear-32721.150010 Bevel Gear
32721 series spiral bevel gears (including 32721.150020/32721.150010) are specially designed for sewing equipment. Made of 20CrMo, they are manufactured through full-process precision processes such as normalizing and turning + full appearance inspection. Core parameters: pressure angle 17°30′, module 1.05, helix angle 40° (right-hand/left-hand rotation respectively); Model 150020: 18 teeth, speed ratio 2, inner diameter 8mm, addendum diameter 21mm, weight 0.0118kg; Model 150010: 36 teeth, inner diameter 15mm, addendum diameter 38.33mm, weight 0.0428kg. Suitable for transmission of sewing equipment, with precise transmission, stability and durability.
