M0354M10 (140-1:2) Large Bevel Gear and M0353M10 (140-1:2) Small Bevel Gear
$25.22piece

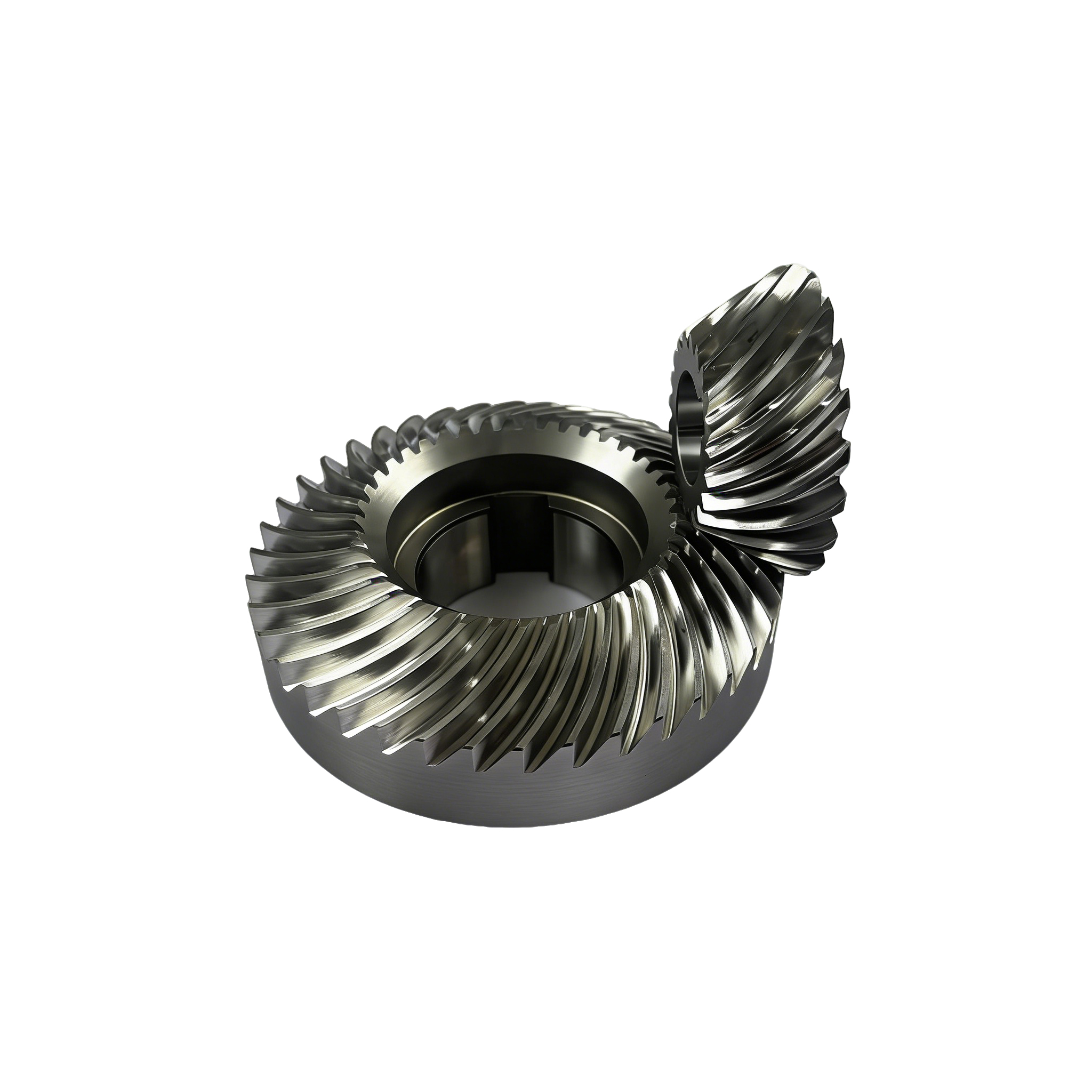

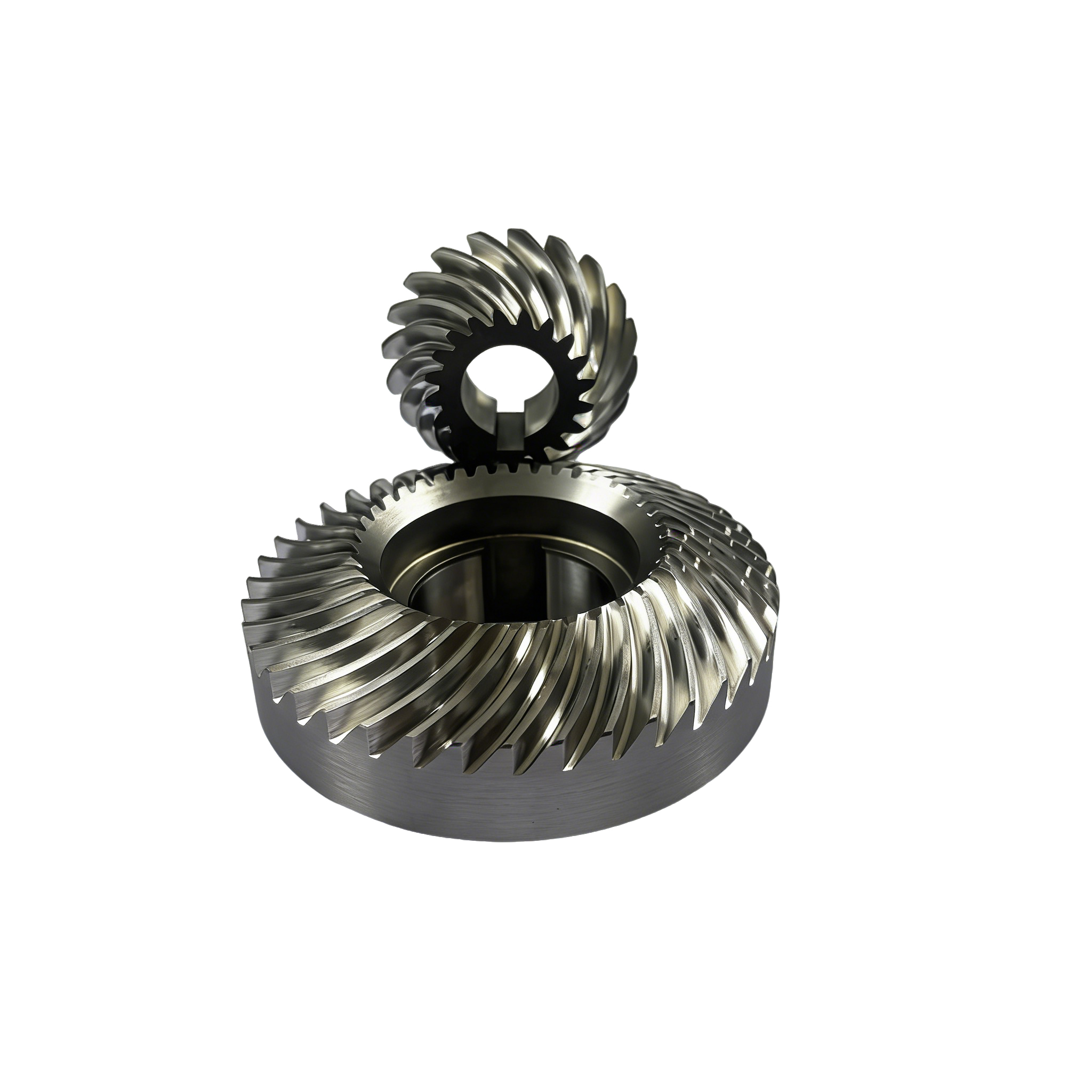

A set of matched spiral bevel gears (large and small) for reducers made of 20CrMnTi, with module 2.94, 20° pressure angle and speed ratio 2. AEP-09-C is a 34-tooth right-hand large bevel gear, and AEP-10-C is a 17-tooth left-hand small bevel gear, precision-machined for 2:1 speed ratio transmission of reducers.
描述
This series is a pair of matched spiral bevel gears (large and small) for reducers, both made of 20CrMnTi with a pressure angle of 20°, module of 2.94, and speed ratio of 2. Manufactured through precise processes including sawing, turning, keyway machining, gear milling, heat treatment, shot blasting, boring + end facing + guide arc chamfering, and gear grinding, they feature high transmission accuracy, good wear resistance and excellent strength, specially designed for reducer transmission systems to meet the power transmission needs of speed ratio 2.

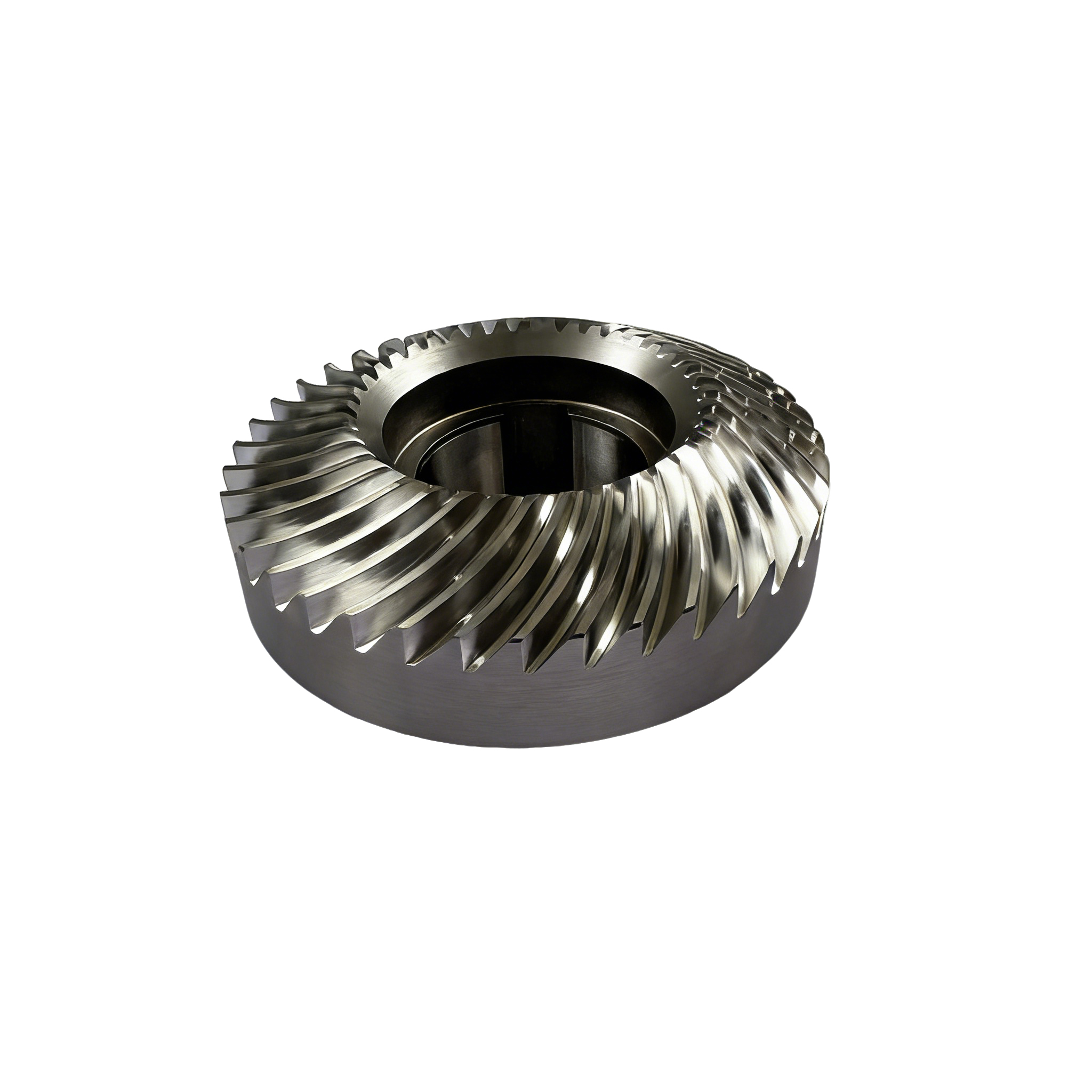

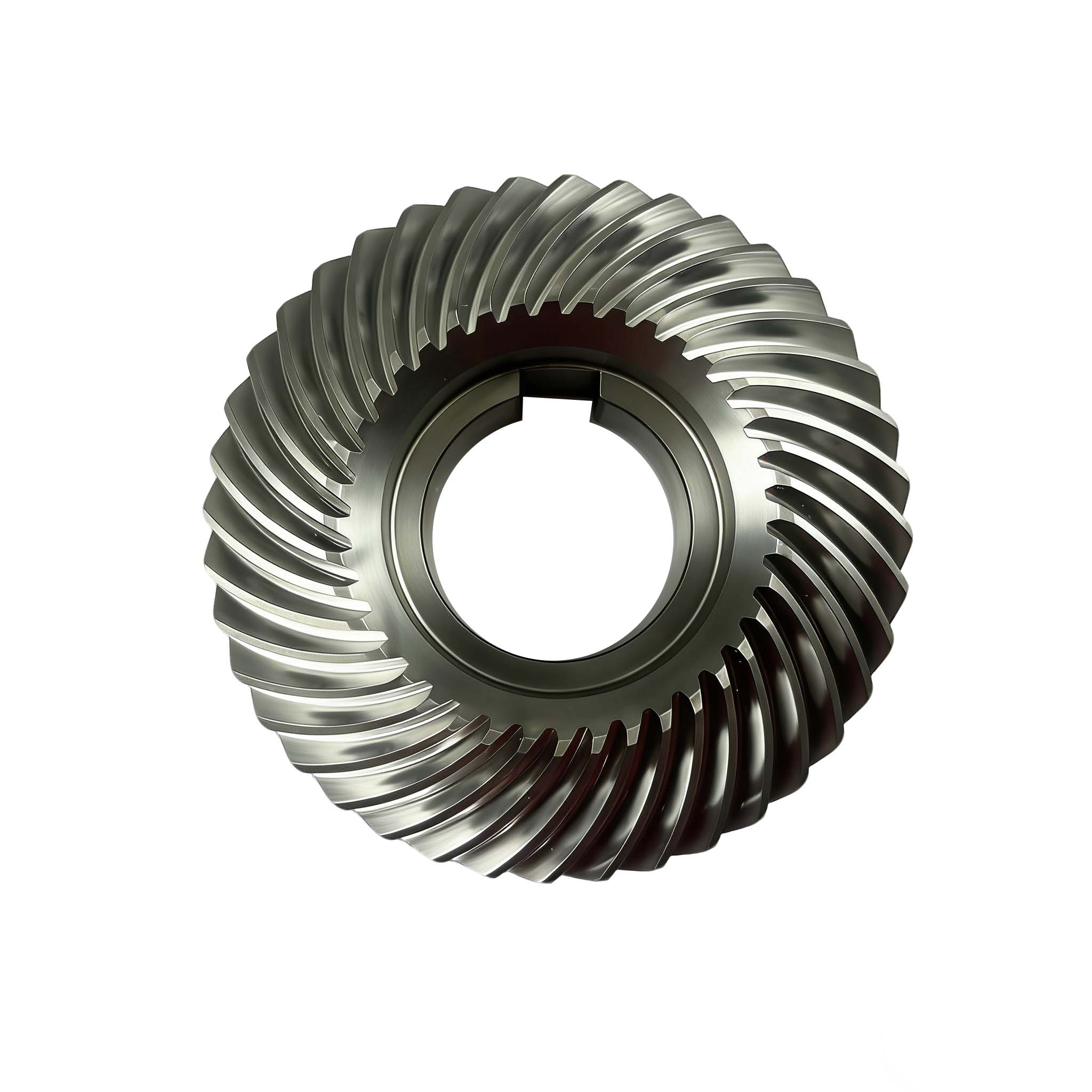

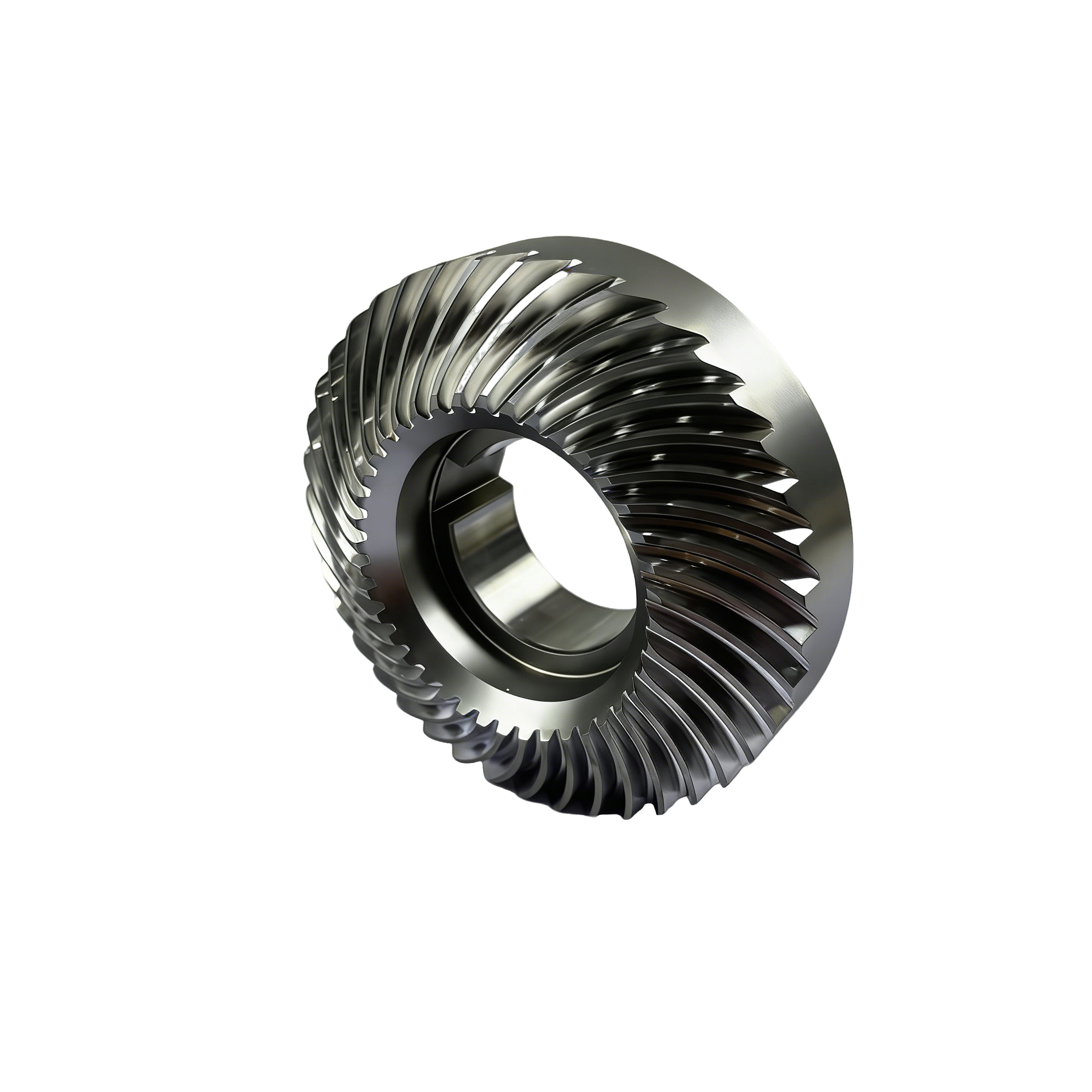

- AEP-09-C Large Bevel Gear: Model M0354M10 (140-1:2), right-hand design (spiral angle 35°/R), 34 teeth, inner diameter 40mm, gear outer diameter 101.4mm, total length 36.2mm, weight 1.273kg. As the large wheel in the matched gears, it undertakes the torque transmission in power transmission.

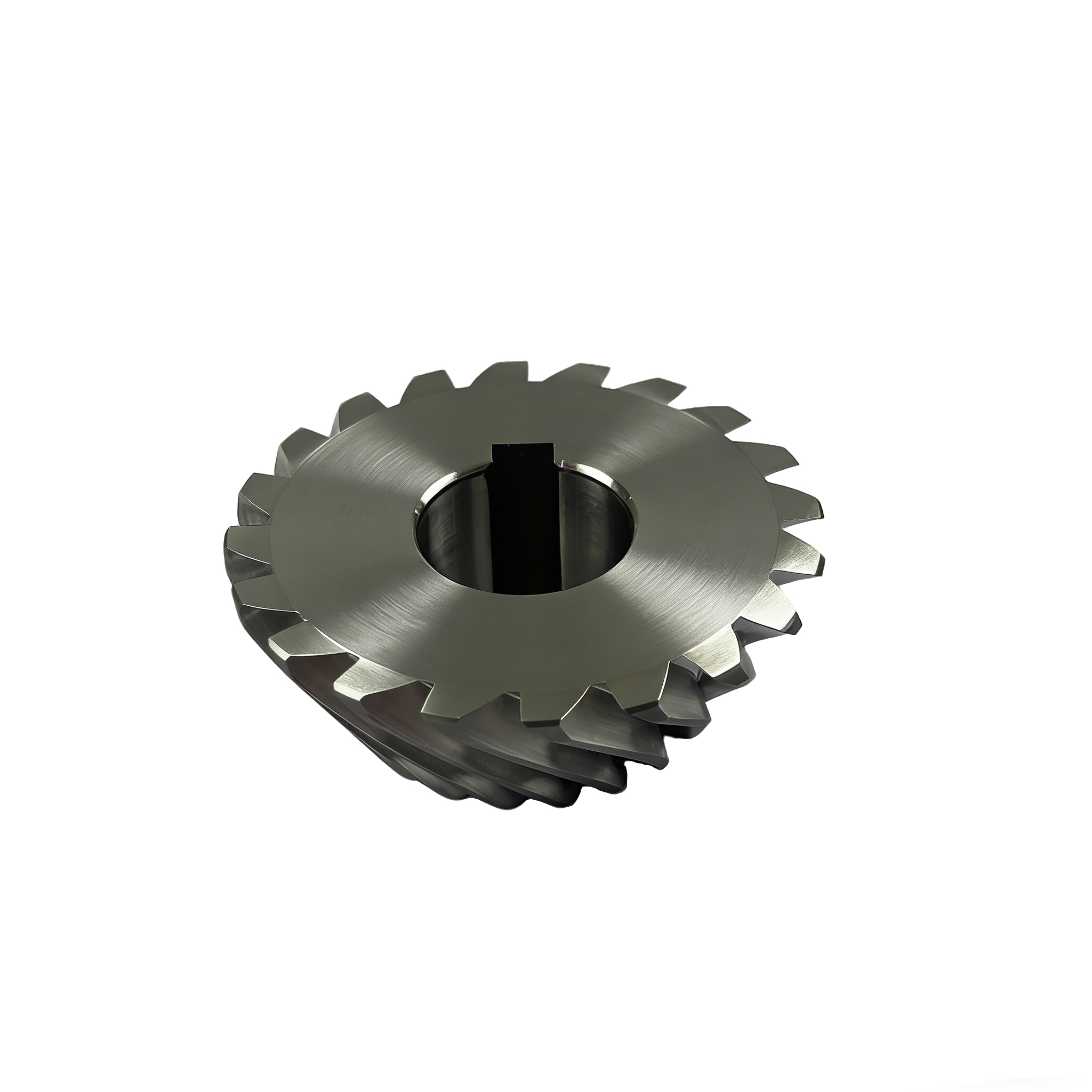

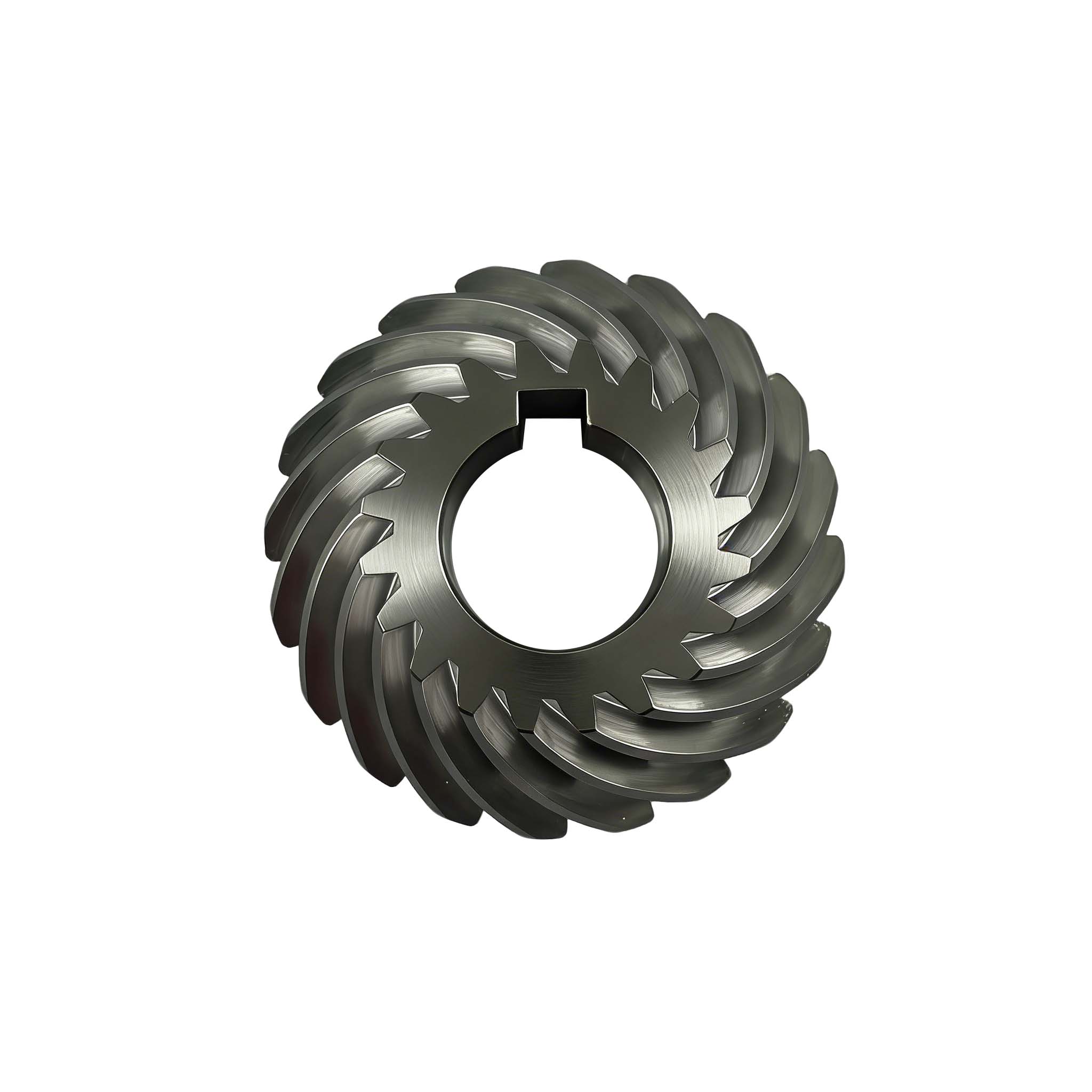

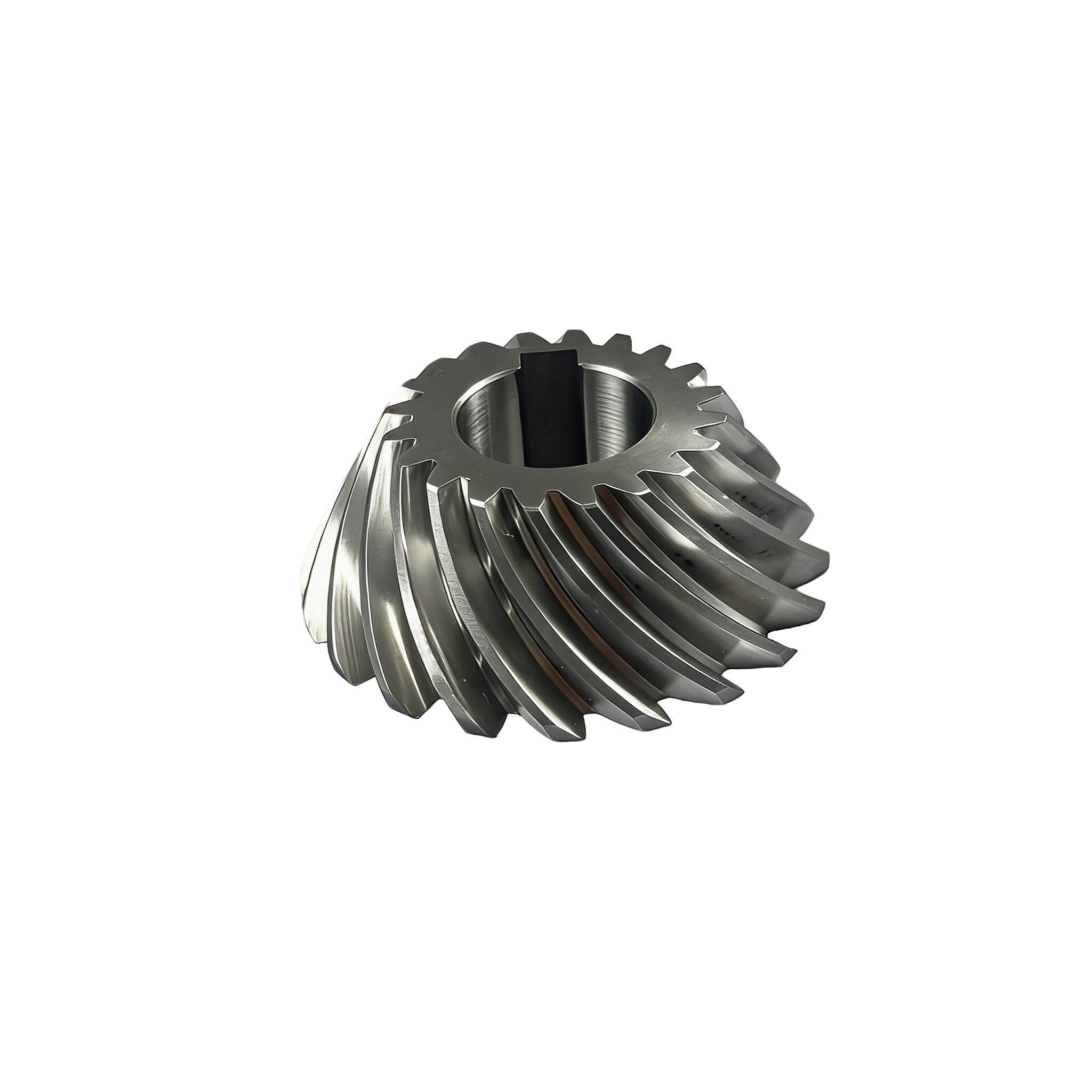

- AEP-10-C Small Bevel Gear: Model M0353M10 (140-1:2), left-hand design (spiral angle 35°/L), 17 teeth, inner diameter 20mm, gear outer diameter 56mm, total length 20.3mm, weight 0.1908kg. As the small wheel in the matched gears, it cooperates precisely with the large bevel gear to achieve 2:1 speed ratio transmission.
The two gears have obvious differences in the number of teeth, size and weight. Used in pairs, they can efficiently realize the deceleration and transmission of reducer power, adapting to various reducer working conditions.
其他信息
| AEP-09-C and AEP-10-C weight |
1.273and0.1908 |
|---|---|
| AEP-09-C and AEP-10-C Core Components |
gear |
| AEP-09-C and AEP-10-C Craftsmanship |
Milling |
