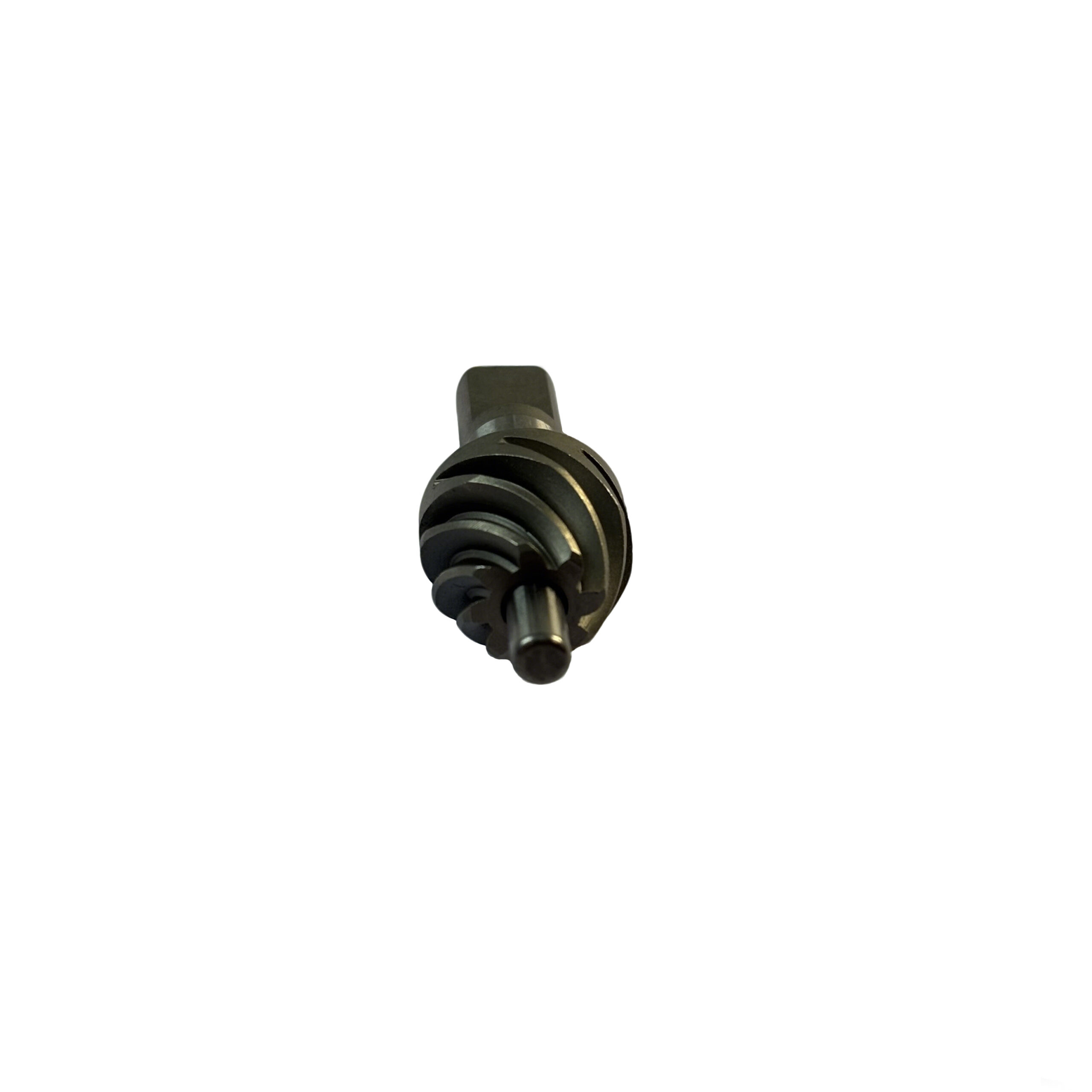

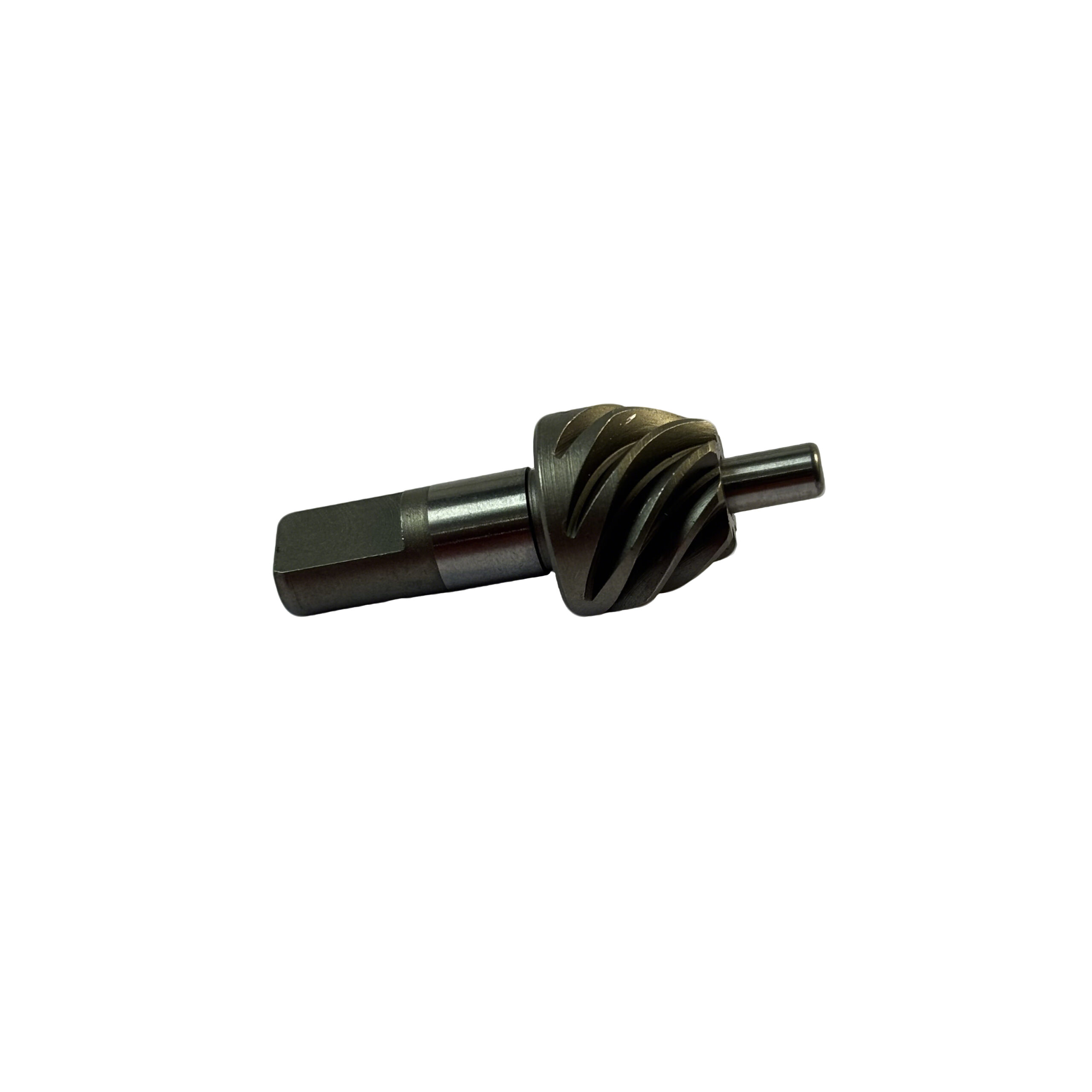

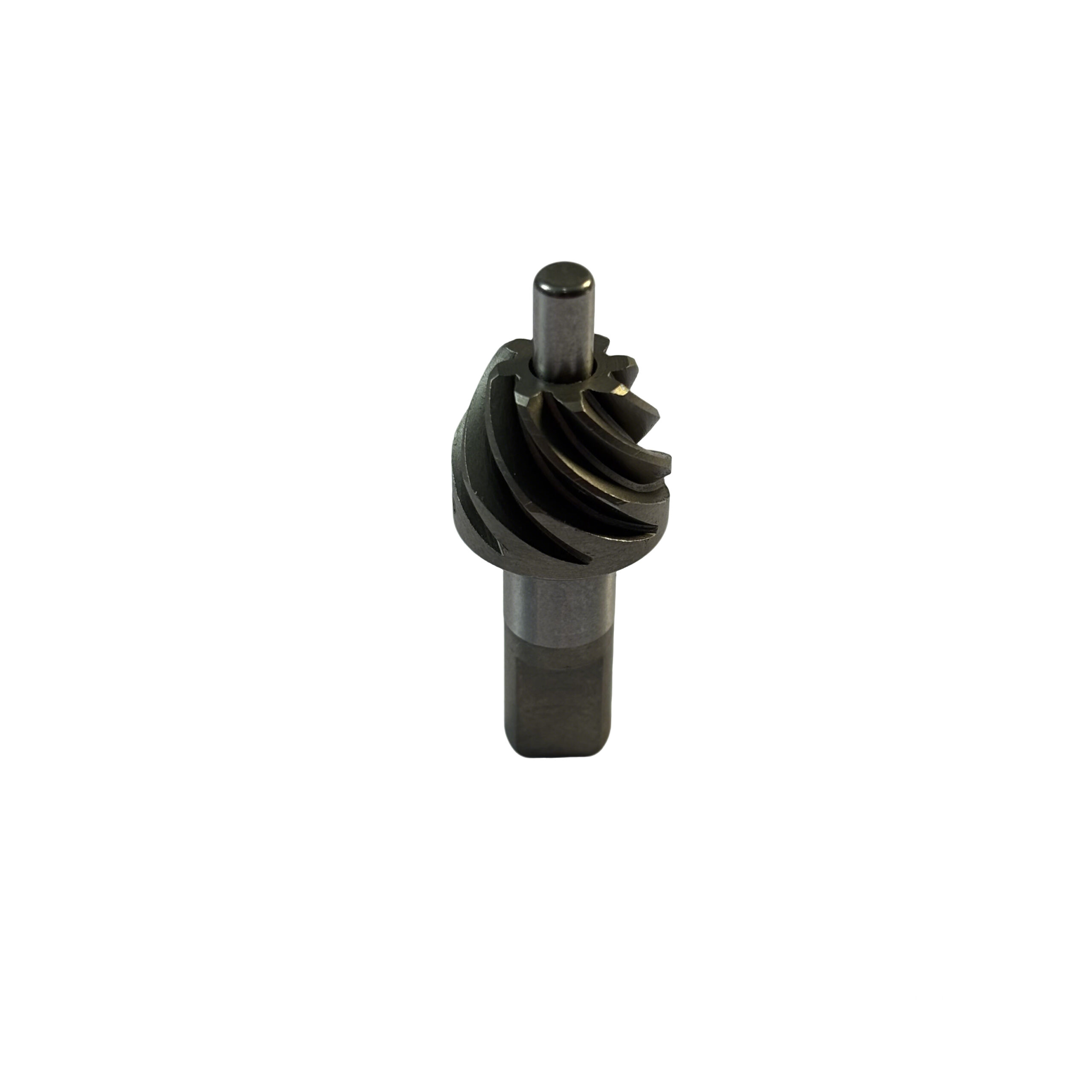

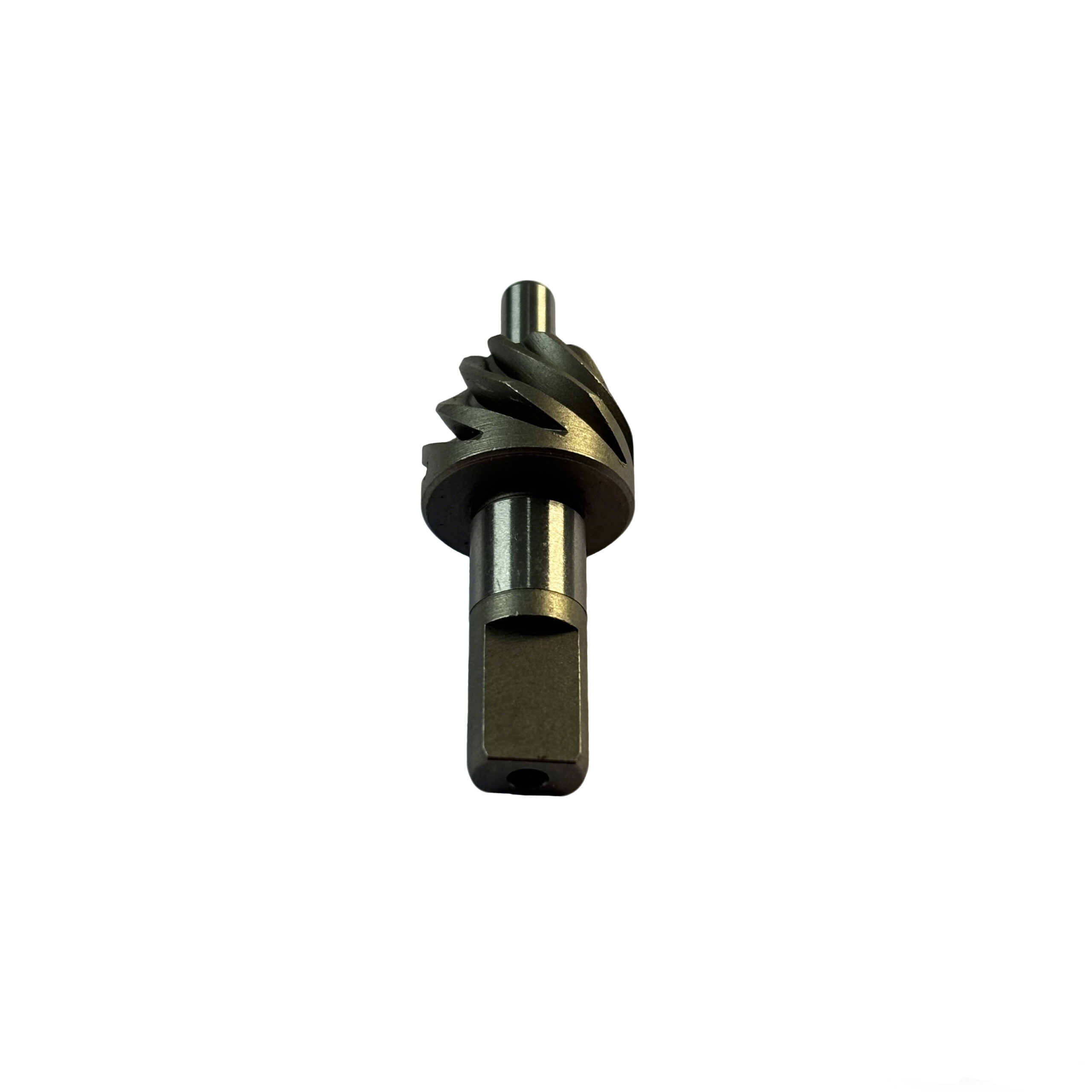

ECD767-2 Miniature Bevel Gear

$1.00piece

The ECD767-2 Miniature Bevel Gear is a left-hand spiral bevel gear made of 20CrMnTi material. Crafted through multiple precision processes, it has parameters matching power tools and features stable transmission and lightweight design.

Add to compare
Add to wishlist
SKU： D-LY-008-C 分类：
描述
The ECD767-2 Miniature Bevel Gear is categorized as a spiral bevel gear and serves as a core transmission component specially designed for power tools. Its parameters are precisely tailored to meet the power transmission requirements of power tools, featuring a pressure angle of 20°, a module of 1.2962, 8 teeth, a spiral angle of 35°/L, a shaft diameter of 8, an outer tooth diameter of 15, an overall length of 39.8, and a weight of only 0.0176kg. Its compact and lightweight structure is perfectly suited for the miniaturized and high-speed operating conditions of power tools.
Made of high-quality 20CrMnTi alloy material, this gear is manufactured through a series of precision processes including normalizing, turning, gear milling, heat treatment, shot blasting, outer diameter grinding and pin pressing. The stringent full-process treatment endows the gear with excellent wear resistance and fatigue resistance, enabling efficient and stable power transmission and providing solid guarantee for the continuous and reliable operation of power tools.
其他信息
weight

0.0176
Core Components

gear
Craftsmanship

milling
