80501102330 (Gear 42×2.3)
$78.43piece
SPKJ-036-C helical gear, module 2.3, 42 teeth, 15° right-hand helix, made of 20CrMnTi for speed reducers.
Description

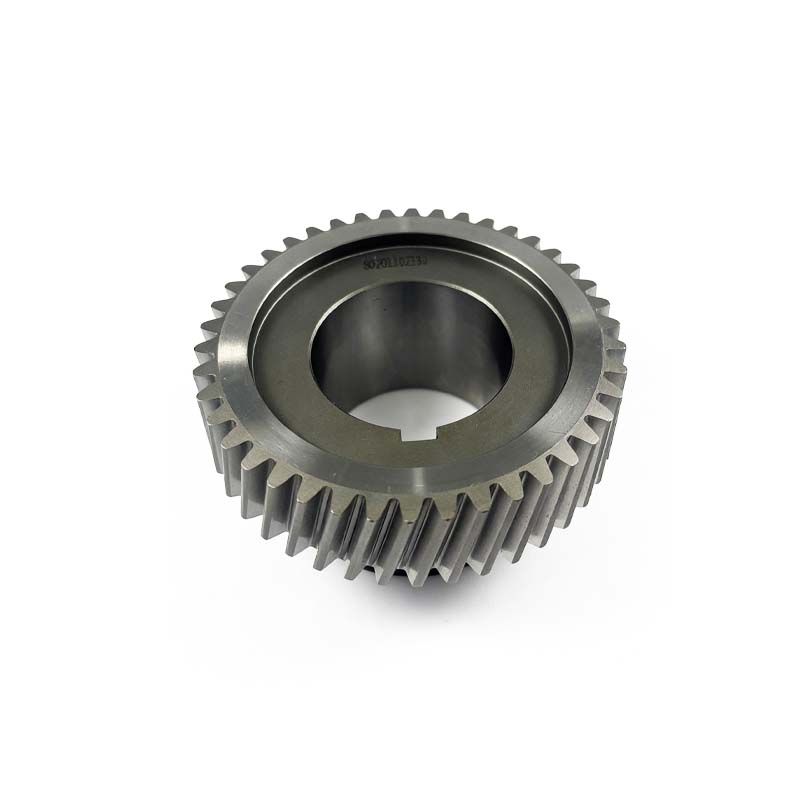

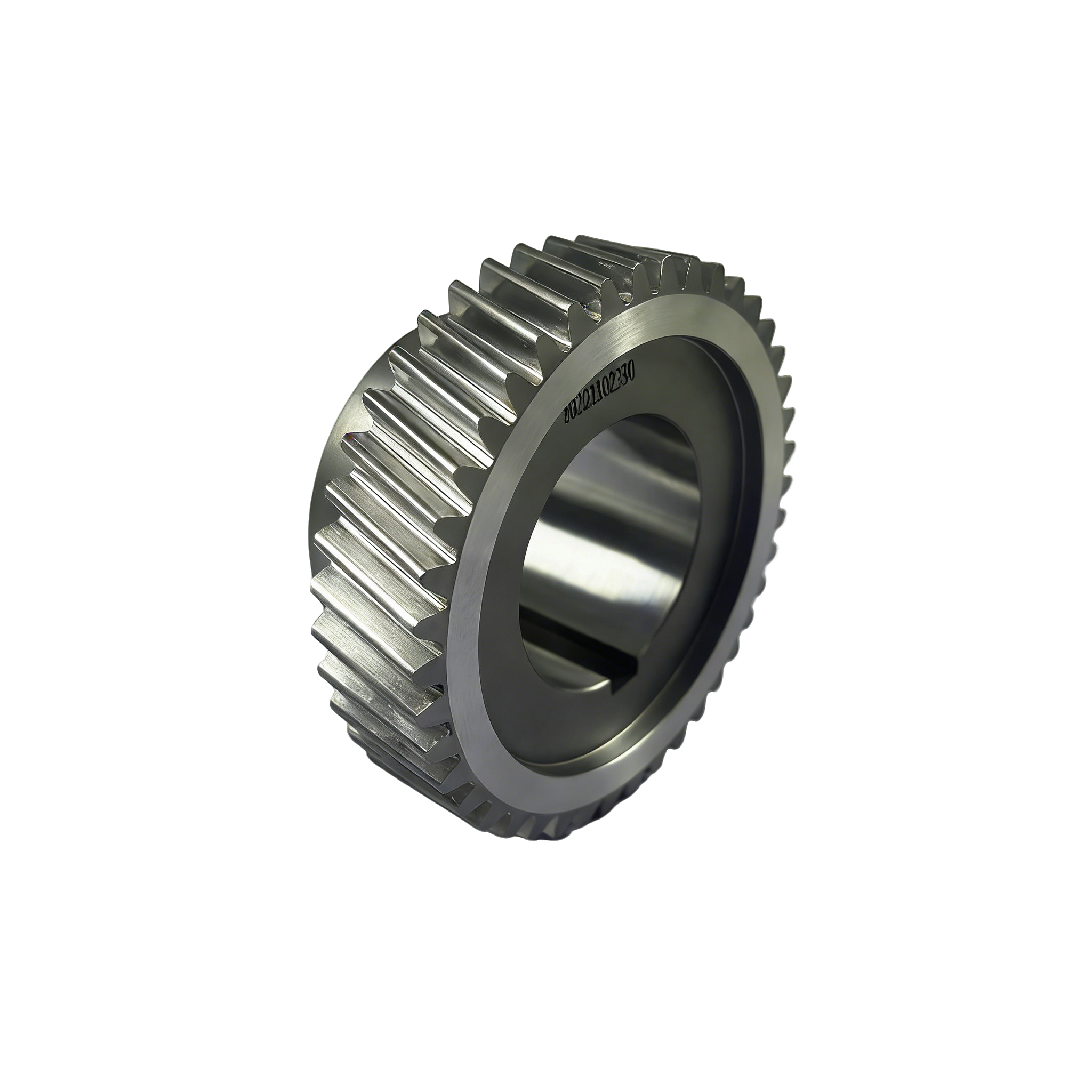

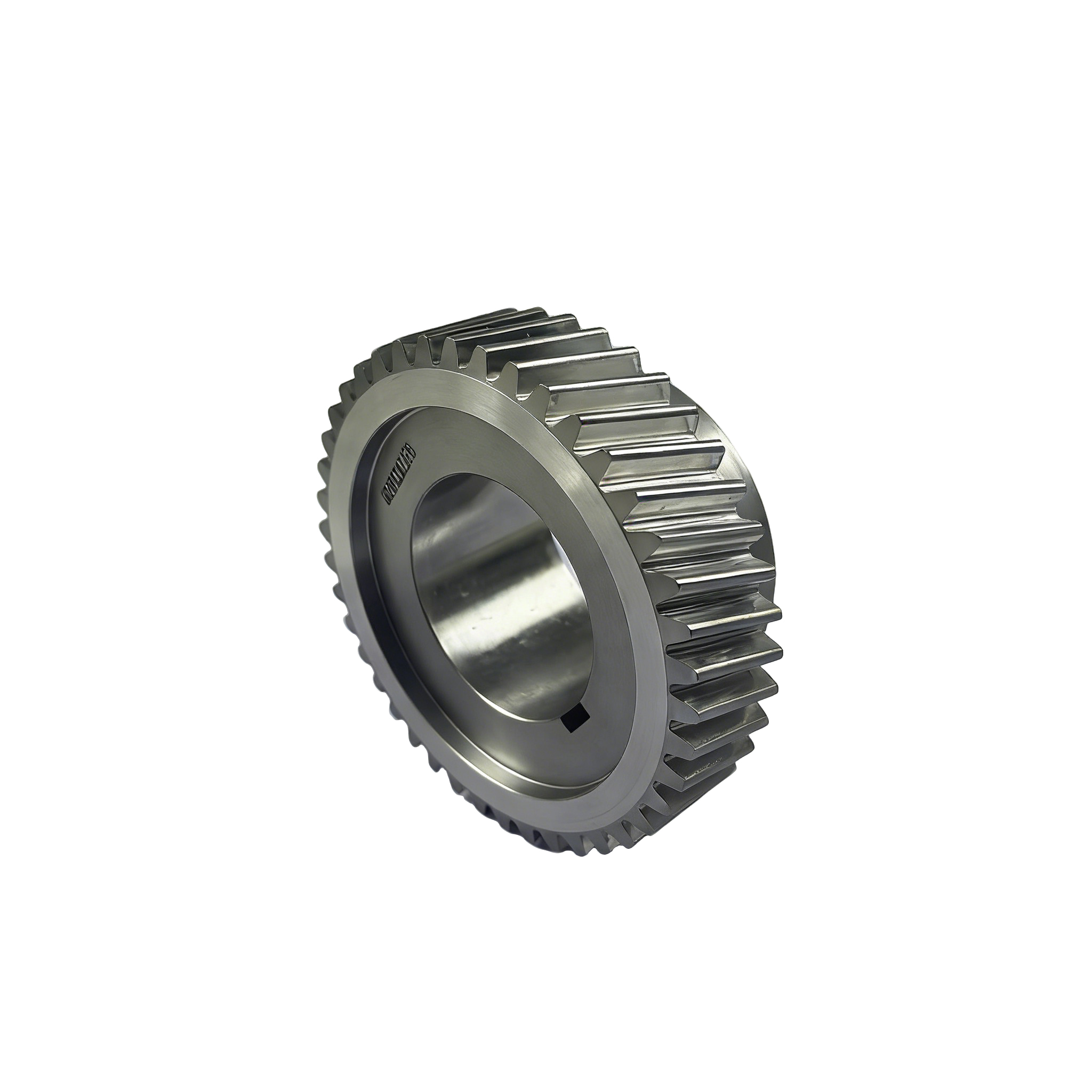

SPKJ-036-C (Model 80501102330, Gear 42×2.3) is a helical gear for reducers, with pressure angle 20°, module 2.3, 42 teeth, 15° right-hand helix angle, inner diameter 50 mm, gear outer diameter 103.439 mm, total length 44.8 mm, weight 1.3365 kg. Made of 20CrMnTi through precision processes including sawing, turning, rough hobbing, heat treatment, shot blasting, boring & facing, total length grinding, gear grinding, wire-cut keyway and marking. It is mainly used as a transmission part in reducers.
Additional information
| weight |
1.3365 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
