2024498 Gear
$1.50piece

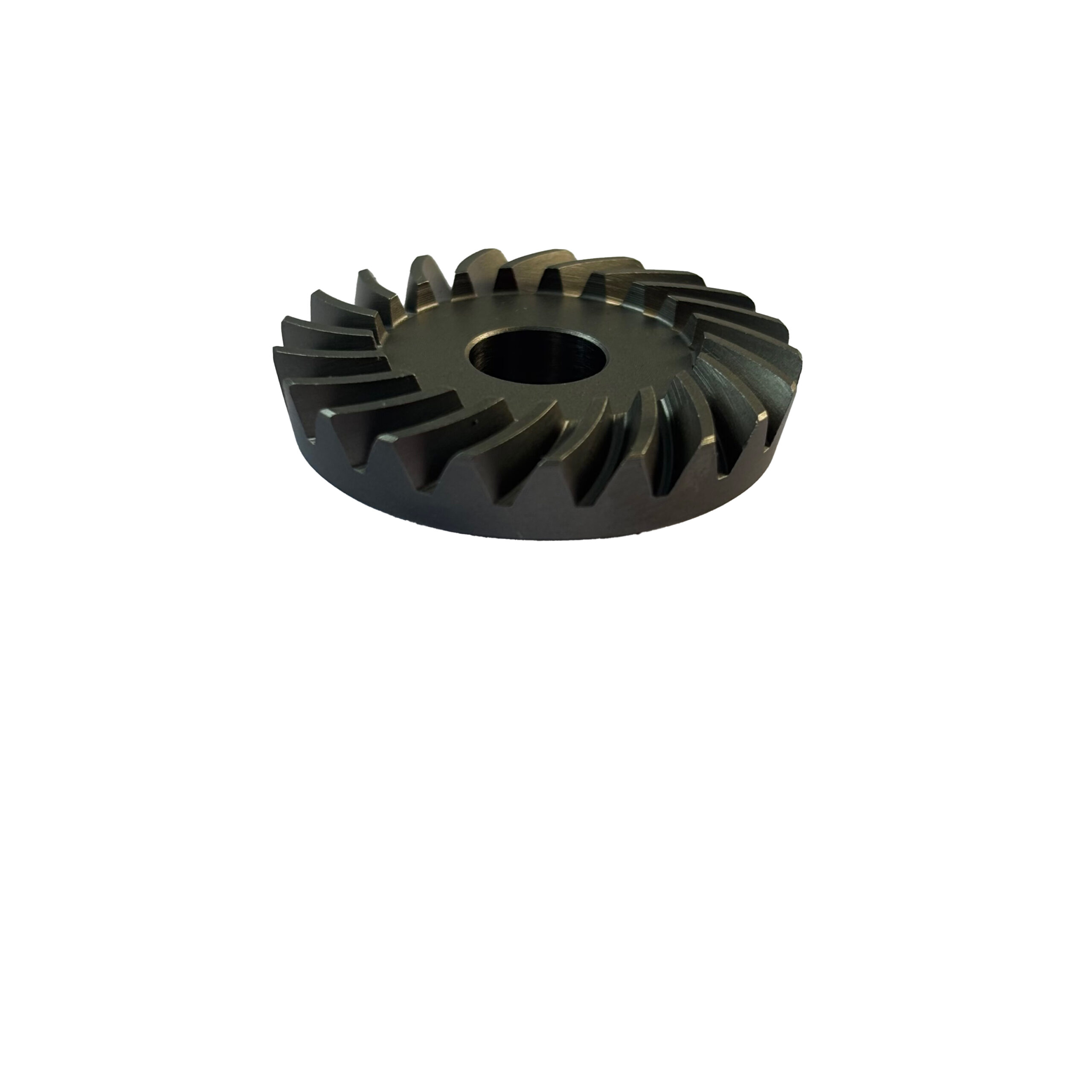

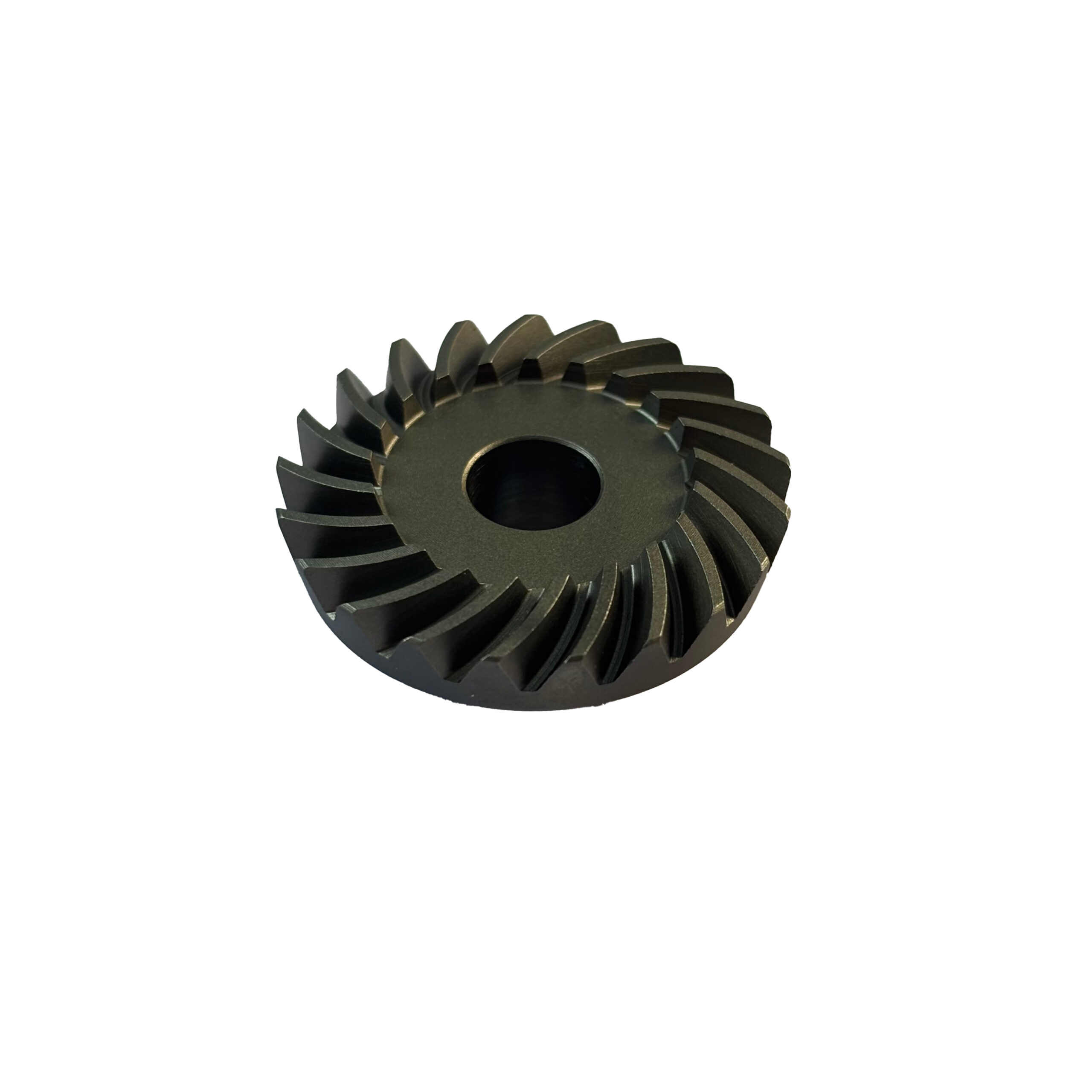

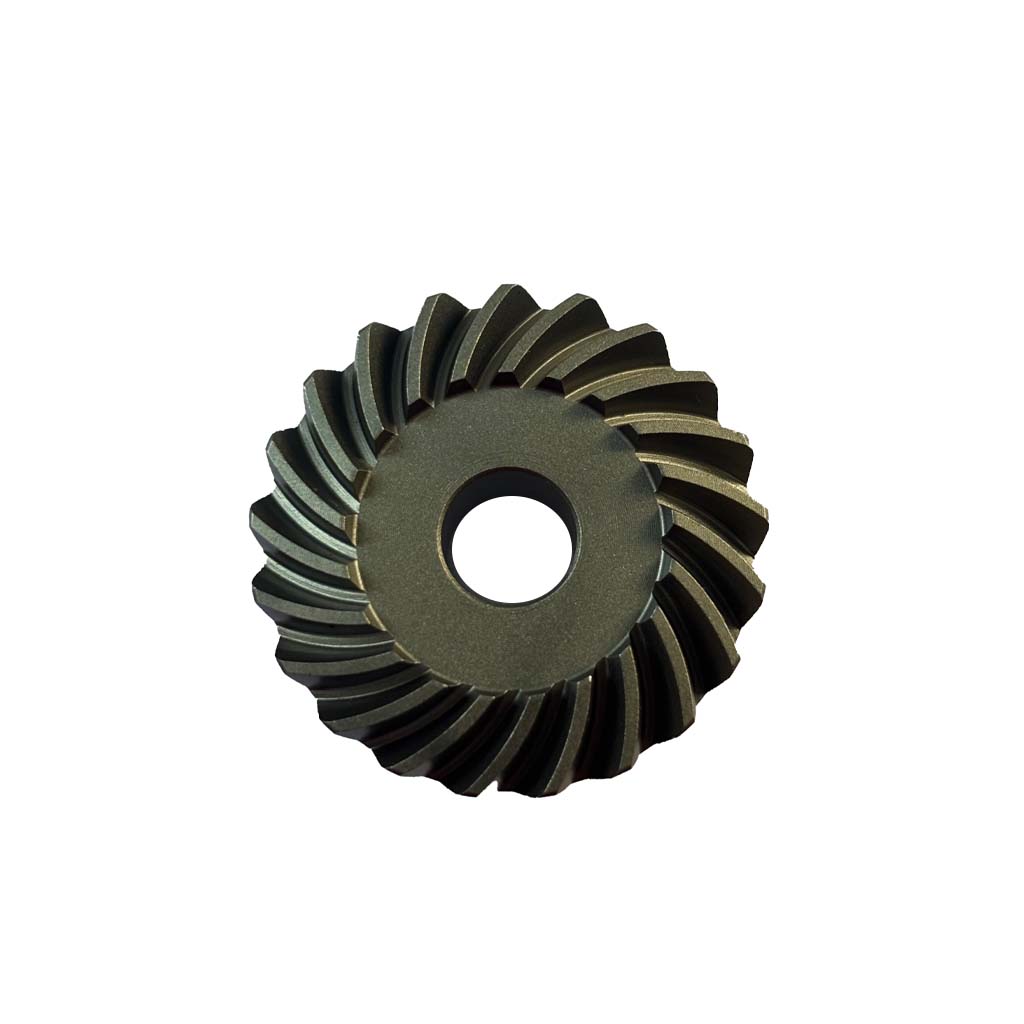

2024498 Spiral Bevel Gear is made of 20CrMo material and manufactured through multiple precision processes including normalizing, gear milling and heat treatment. With a pressure angle of 20°, module of 1.5, 21 teeth and helix angle of 35°/R, it features a compact size (outer diameter of tooth part: 31.4mm, total length: 11.6mm, weight: 0.13kg). Characterized by stable and efficient transmission, it is a high-precision transmission accessory dedicated to power tools.
描述
其他信息
| weight |
0.13 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Precision Casting |
用户评价 (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
相关产品
32721.150020 Bevel Gear-32721.150010 Bevel Gear
32721 series spiral bevel gears (including 32721.150020/32721.150010) are specially designed for sewing equipment. Made of 20CrMo, they are manufactured through full-process precision processes such as normalizing and turning + full appearance inspection. Core parameters: pressure angle 17°30′, module 1.05, helix angle 40° (right-hand/left-hand rotation respectively); Model 150020: 18 teeth, speed ratio 2, inner diameter 8mm, addendum diameter 21mm, weight 0.0118kg; Model 150010: 36 teeth, inner diameter 15mm, addendum diameter 38.33mm, weight 0.0428kg. Suitable for transmission of sewing equipment, with precise transmission, stability and durability.
Bevel Gear 4037014 (Large)
The 4037014 Bevel Gear (Large) is made of 20CrMnTi material and manufactured through multiple precision processes including normalization, turning, gear milling and heat treatment. Its core parameters are 20° pressure angle, 2.12 module, 33 teeth and 35° left-hand rotation, with a tooth outer diameter of 70.442mm, total length of 21.91mm and weight of 0.375kg. Specially designed for reducers, this product features stable transmission, wear resistance and durability.
KA09104 Small Steel Gear 15T
KA09104 Small Steel Gear 15T is a dedicated spiral bevel gear for reducers. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.54, 15 teeth, and a spiral angle of 10°/R, with a shaft diameter of 10mm, a tooth outer diameter of 28mm, a total length of 59.25mm, and a single weight of 0.0541kg. Manufactured via multiple precision machining and surface treatment processes, it delivers stable transmission and high wear resistance.
Φ14.73 Left-hand (LH) Straight Teeth and Φ7.94 Right-hand (RH) Straight Teeth
The two models of spur spiral bevel gears (Φ14.73 Left-hand, Φ7.94 Right-hand) are made of 20CrMo material and manufactured through multiple precision processes. With parameters including 20° pressure angle, 0.97 module, 33 teeth and 0° helix angle, both gears have a tooth outer diameter of 32mm. The Φ14.73 model has a total length of 17.65mm and a weight of 0.0487kg, while the Φ7.94 model has a total length of 15.65mm and a weight of 0.0566kg. Specially designed for sewing equipment, these gears are characterized by stable transmission, wear resistance and durability.
