CJBB002F-1 (5-hole outer diameter non-turned) Finished Product
$1.00piece

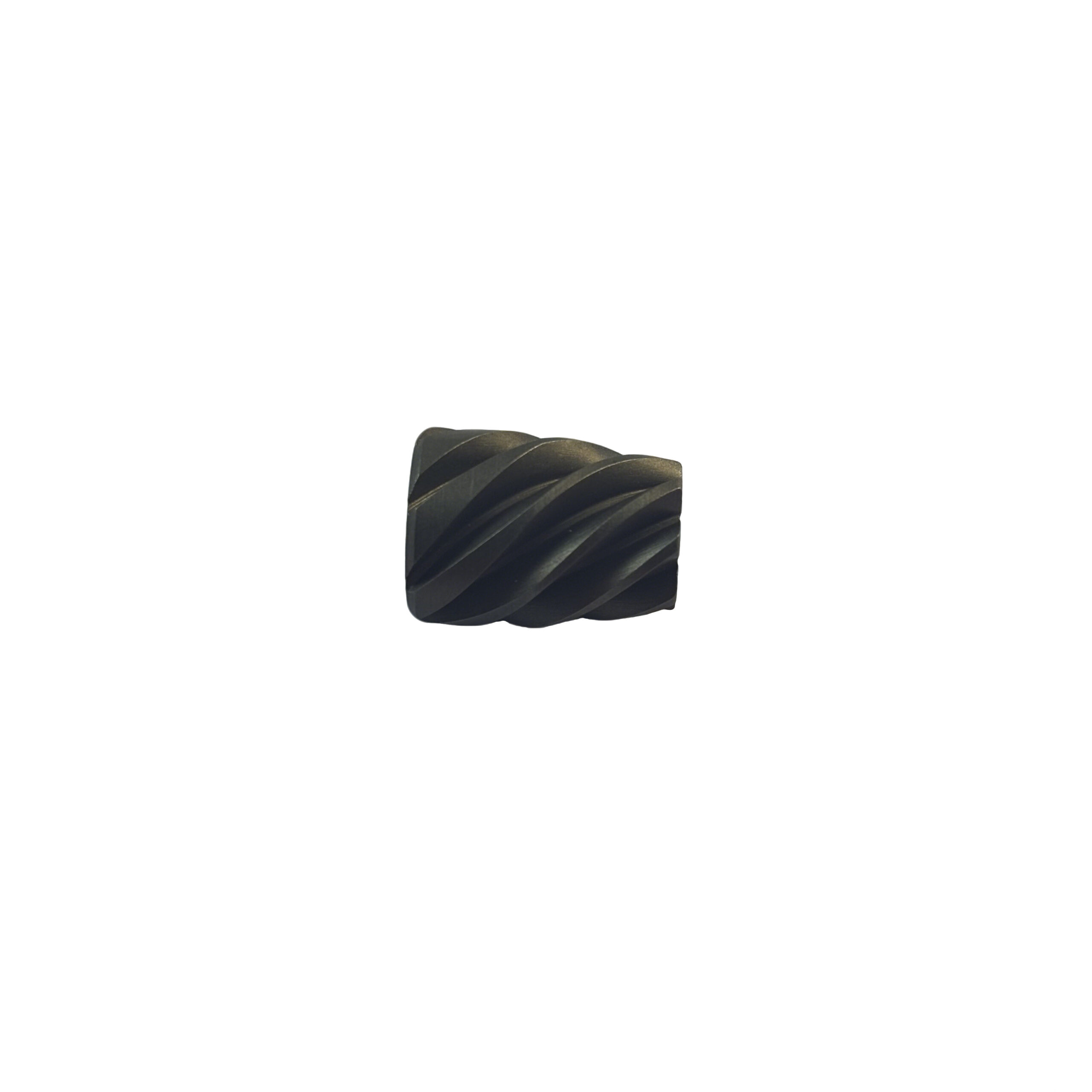

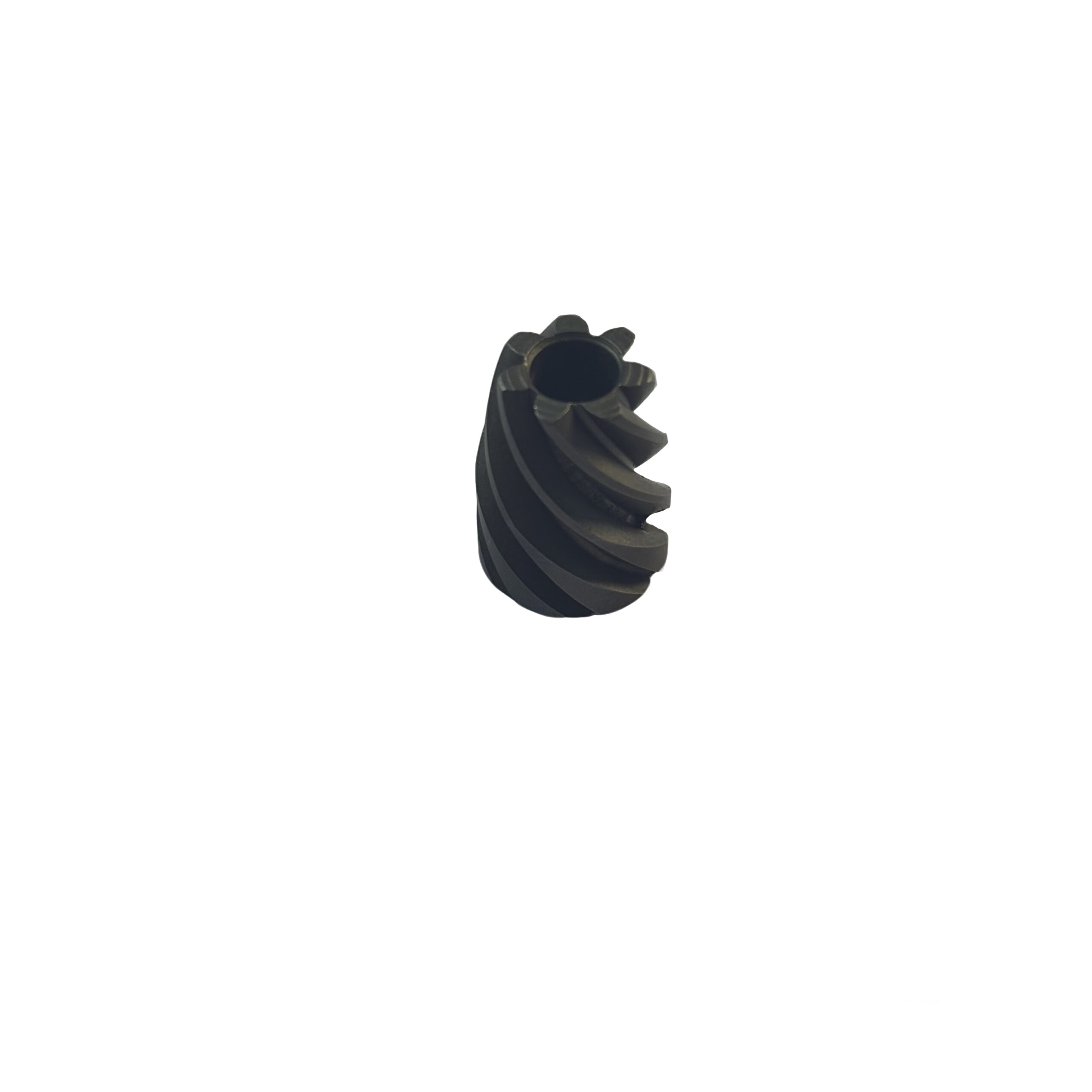

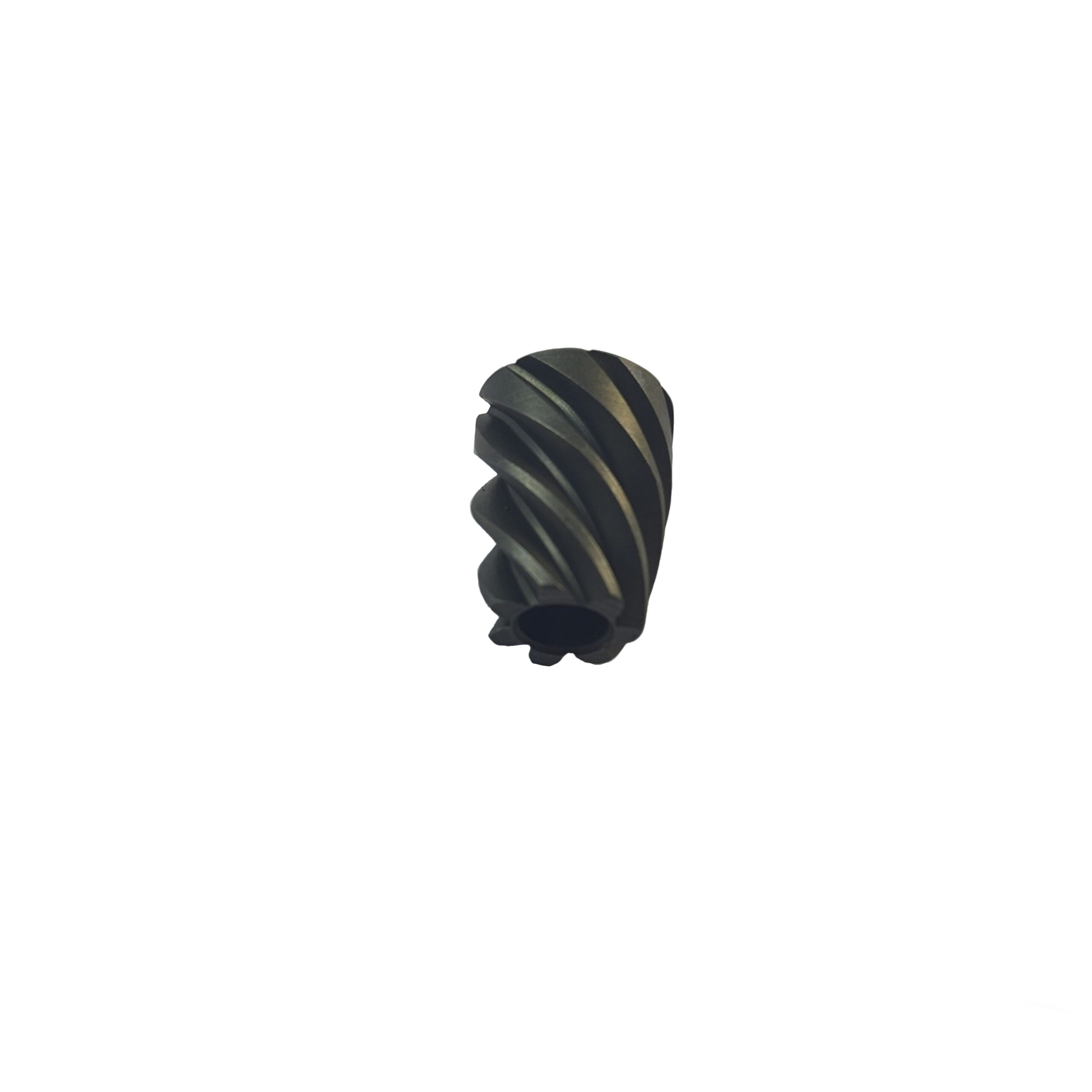

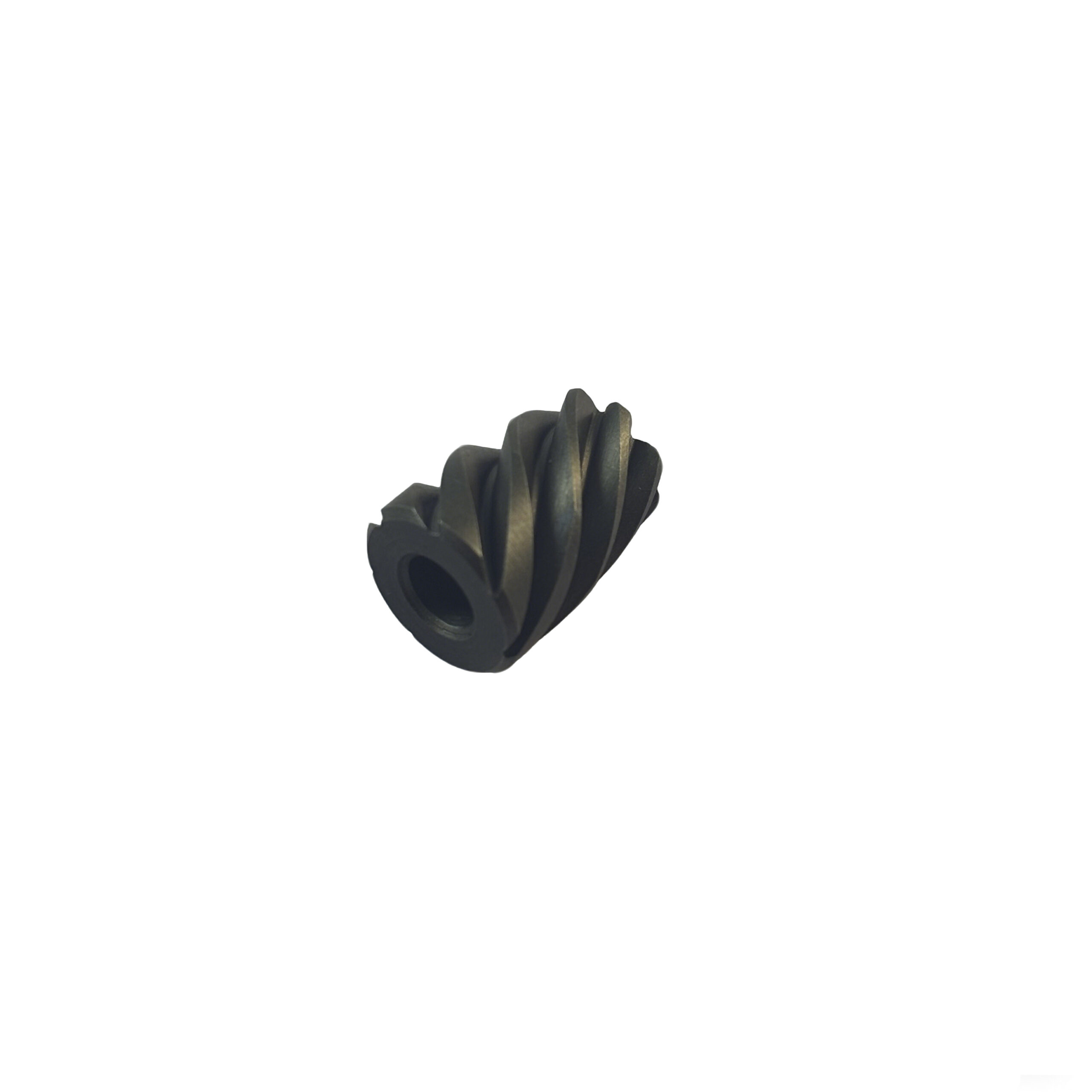

CJBB002F-1 (5-hole outer diameter non-turned) finished spiral bevel gear features a pressure angle of 20°, module of 1.2118, spiral angle of 35°/L, inner diameter of 5mm, tooth outer diameter of 11.6mm and total length of 19.5mm. It is a dedicated core transmission component for reducers with simplified processes and stable transmission performance.
描述
Product Model: CJBB002F-1 (5-hole outer diameter non-turned) Finished ProductProduct Category: Spiral Bevel GearCore Technical Parameters: Pressure angle 20°, module 1.2118, number of teeth 7, spiral angle 35°/L, inner diameter 5mm, tooth outer diameter 11.6mm, total length 19.5mm.Process Features: Adopting the 5-hole outer diameter non-turned process, it maximizes the structural integrity of raw materials, reduces the impact of machining procedures on gear precision, and ensures transmission stability.Product Application: As a dedicated core component for reducers, this gear is suitable for the power transmission systems of various reducer equipment. It enables efficient power distribution and speed regulation, meeting the heavy-duty transmission requirements of industrial machinery, electric tools and other fields.
其他信息
| weight |
0.006 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Precision Casting |
