80501102324 (11-tooth Motor Output Shaft)
$42.02piece
80501102326 (Gear 20×1.5)
$42.02piece
80501102325 (Gear 44×1.25)
$42.02piece
SPKJ-031-C helical gear, module 1.25, 44 teeth, 22° right-hand helix, made of 20CrMo for speed reducers.
描述

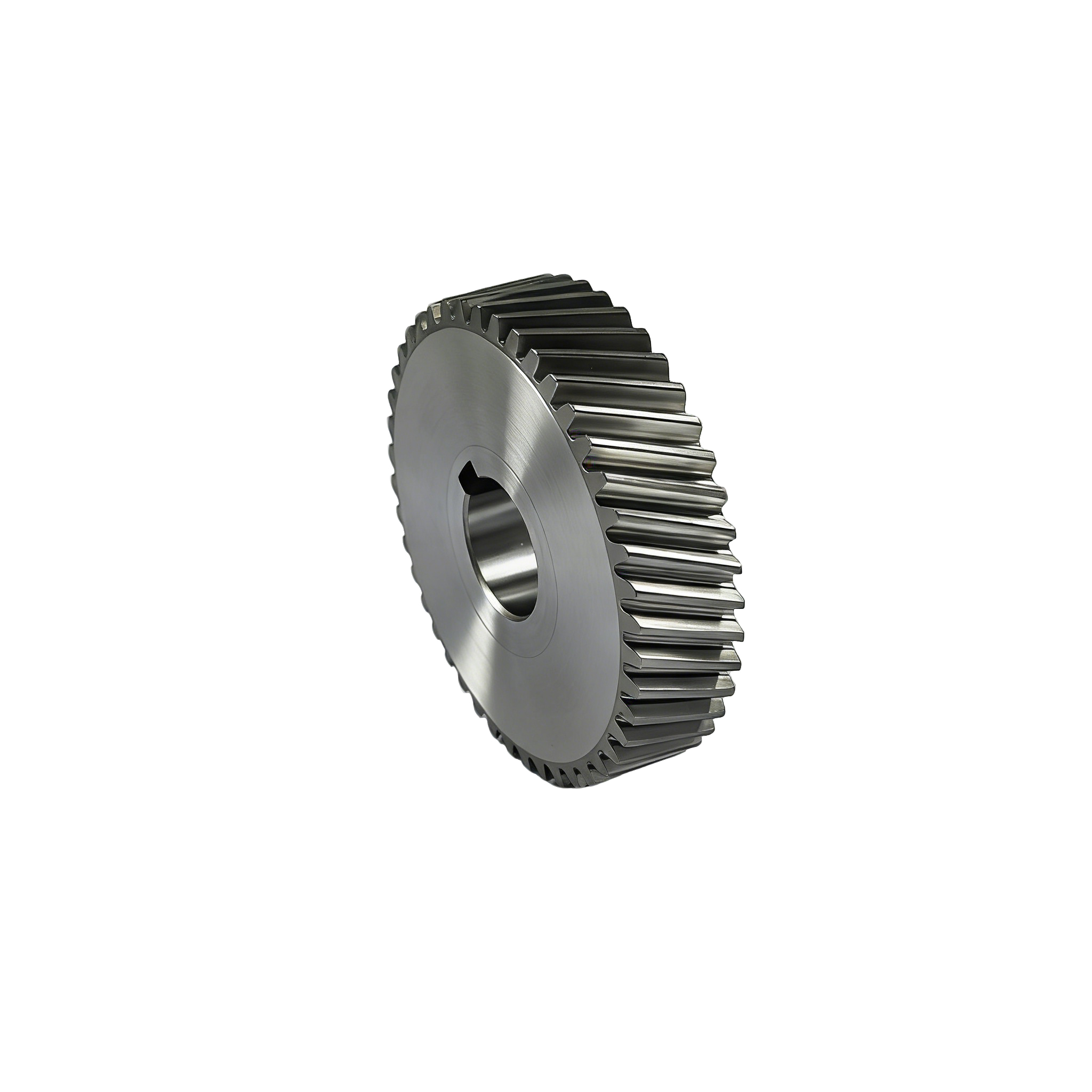

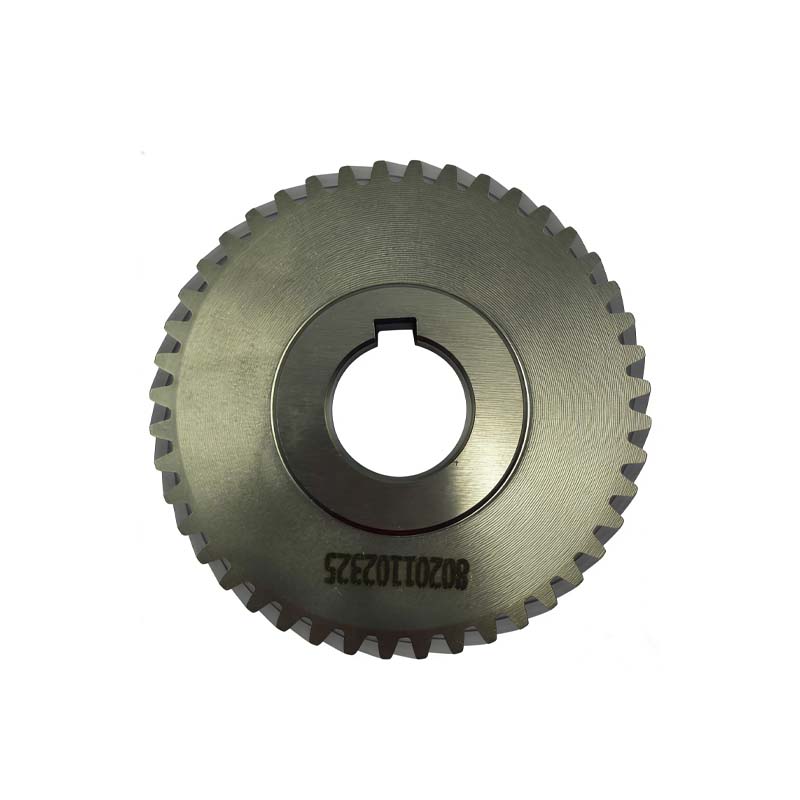

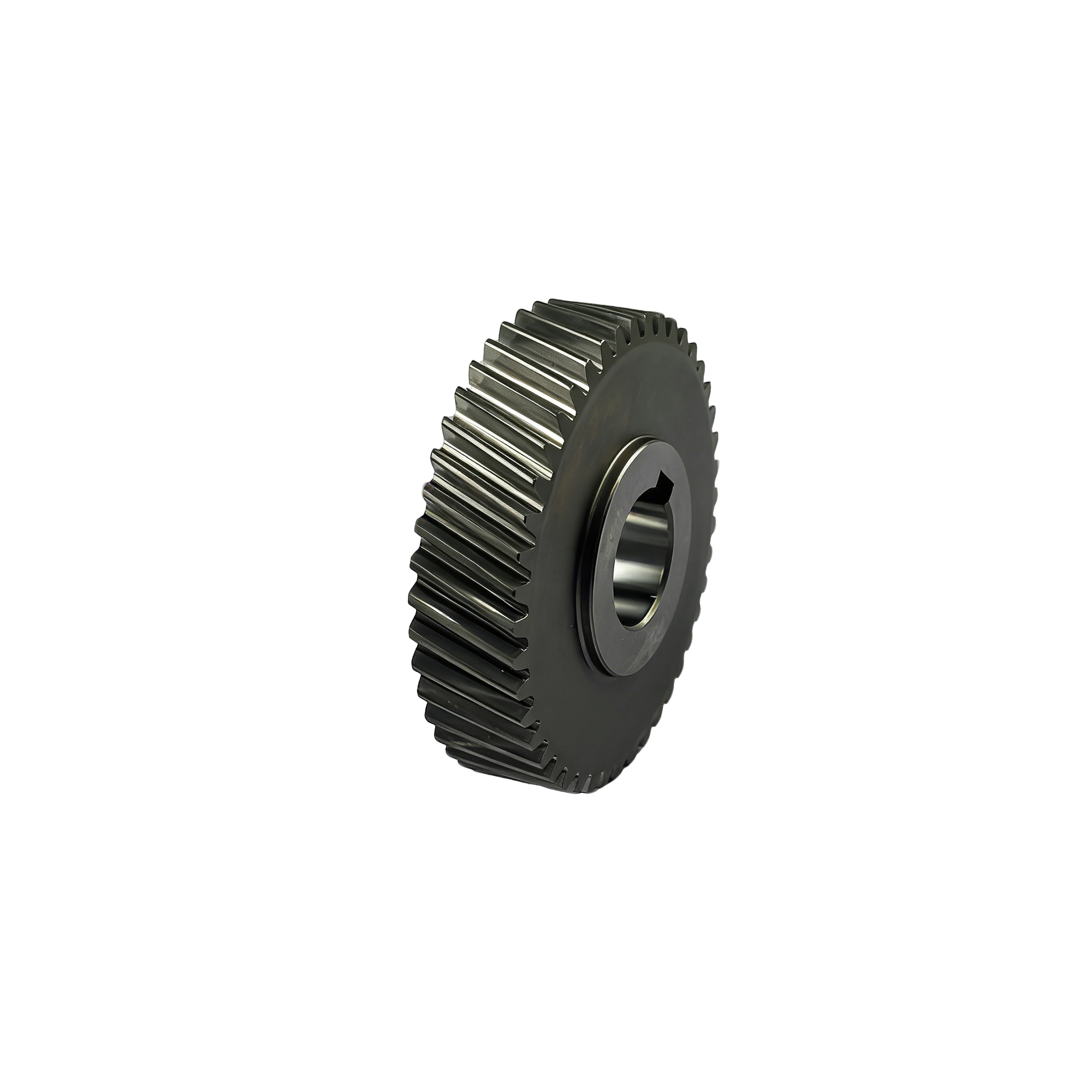

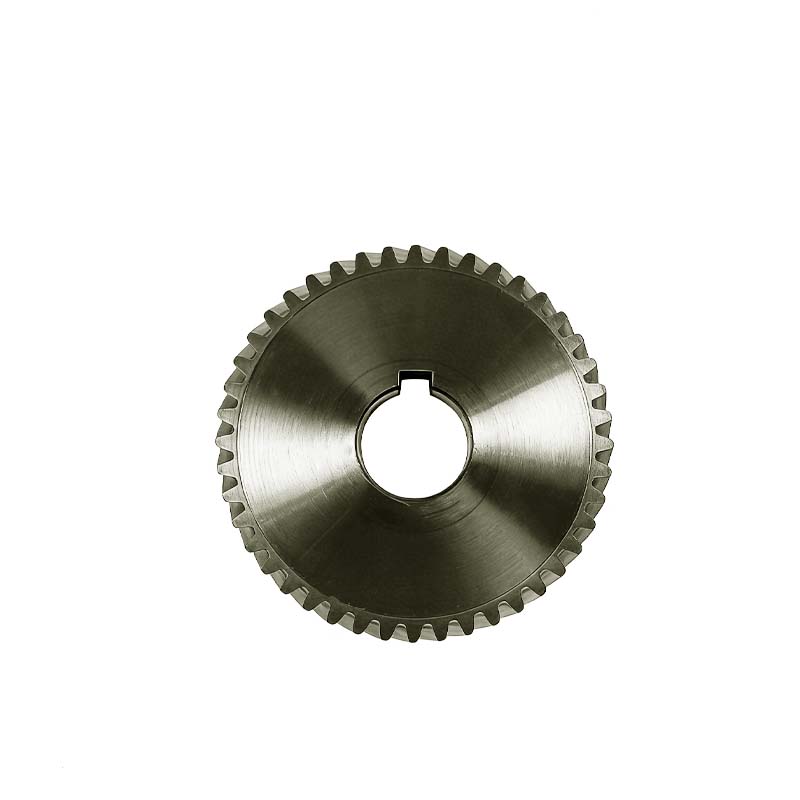

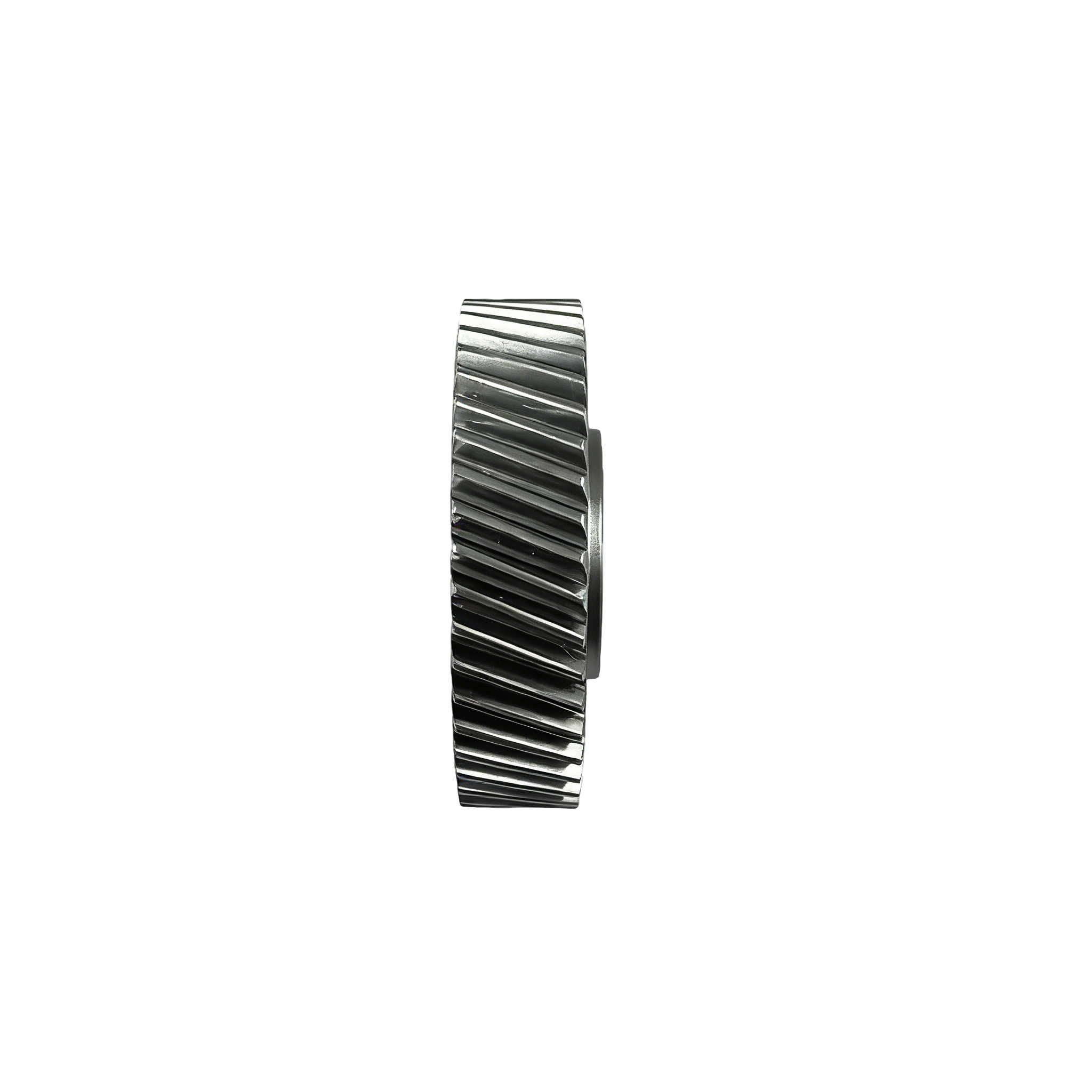

SPKJ-031-C (Model 80501102325, Gear 44×1.25) is a helical gear for reducers, with pressure angle 20°, module 1.25, 44 teeth, 22° right-hand helix angle, inner diameter 17 mm, gear outer diameter 60.552 mm, total length 17 mm, weight 0.2898 kg. Made of 20CrMo through precision processes including sawing, turning, rough hobbing, heat treatment, shot blasting, boring & facing, total length grinding, gear grinding, wire-cut keyway and marking. It is mainly used as a transmission part in reducers.
其他信息
| weight |
0.2898 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Hobbing |
用户评价 (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
相关产品
1560-4 Hook (Cylindrical Gear 37×1.25 – Left-hand)
The helical gear matched with 1560-4 hook is made of 20CrMo. It has a module of 1.25, pressure angle of 20°, 37 teeth and a helix angle of -15° left-hand. Produced via multiple processes including hobbing and heat treatment, it has a tooth outer diameter of 50.38mm and a weight of 0.1225kg, serving as a dedicated transmission component for sewing equipment.
2024351 Finished Product
The 2024351 finished helical gear (dedicated for power tools) has a pressure angle of 20°, module of 1.25, 41 teeth and helix angle of 5°/R. With an inner diameter of 16mm, outer diameter of 53.45mm, total length of 10mm and weight of 0.0962kg, it is made of 20CrMnTi material through precision processes including normalizing, hobbing and heat treatment, featuring stable transmission, wear resistance and impact resistance.
2024379 Gear
The 2024379 helical gear (dedicated for power tools) has a pressure angle of 20°, module of 0.8, 35 teeth and helix angle of -15°/L. It has an inner diameter of 7.92mm, outer diameter of 30.2mm, total length of 9mm and weight of 0.0298kg. Made of 20CrMnTi material and manufactured through precision processes including normalizing, hobbing and heat treatment, it features stable transmission, wear resistance and long service life.
211WF1-014 Finished Hook Shaft Pinion and 211WF1-005 Finished Lower Shaft Main Gear
211WF1-014 Finished Hook Shaft Pinion and 211WF1-005 Finished Lower Shaft Main Gear are finished helical gears made of 20Cr, with a pressure angle of 20° and a module of 1, and both have a helix angle of 45°/L. Processed via multiple precision manufacturing procedures, they are suitable for the transmission system of sewing equipment, delivering stable transmission with excellent wear resistance.
531.06-78 45° Helical Gear (Driven) and 531.06-77 45° Helical Gear (Driving)
531.06-78 Driven Helical Gear and 531.06-77 Driving Helical Gear are 45° helical gears made of 20CrMo, with a pressure angle of 20°, a module of 1 and 18 teeth. Processed via multiple precision procedures, they realize precise meshing and stable transmission, and are suitable for the transmission system of sewing equipment.
