28-M4-L46-D35(28-M4-J35-D85-L50-V-C-B)
$9.80piece

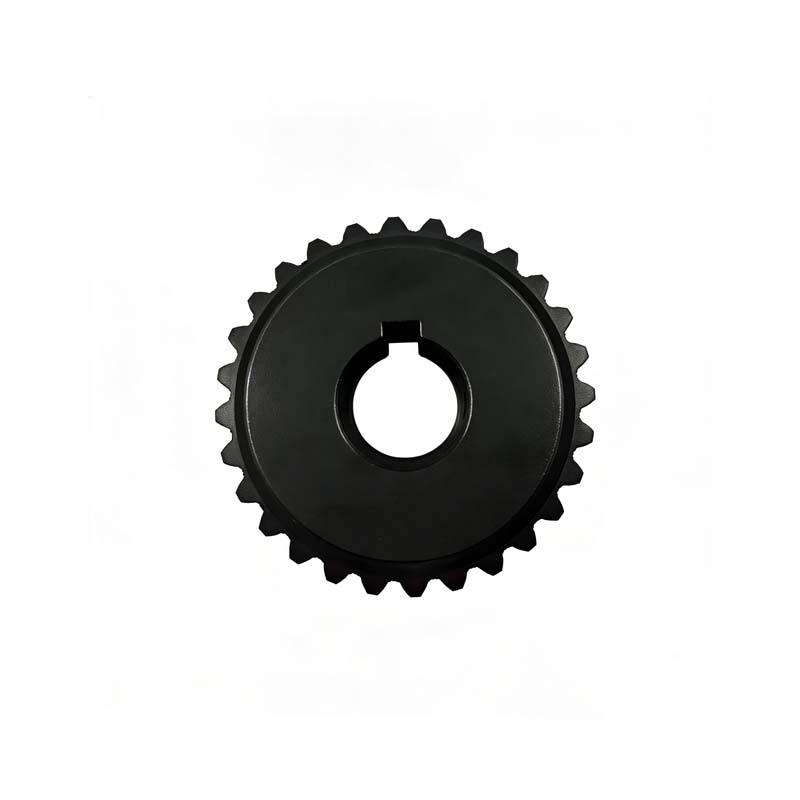

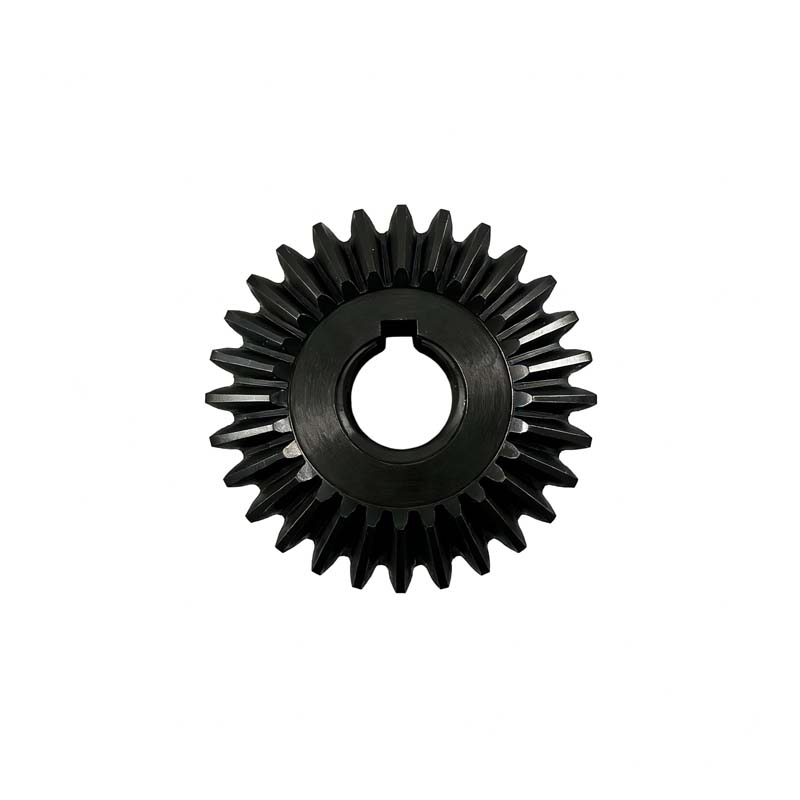

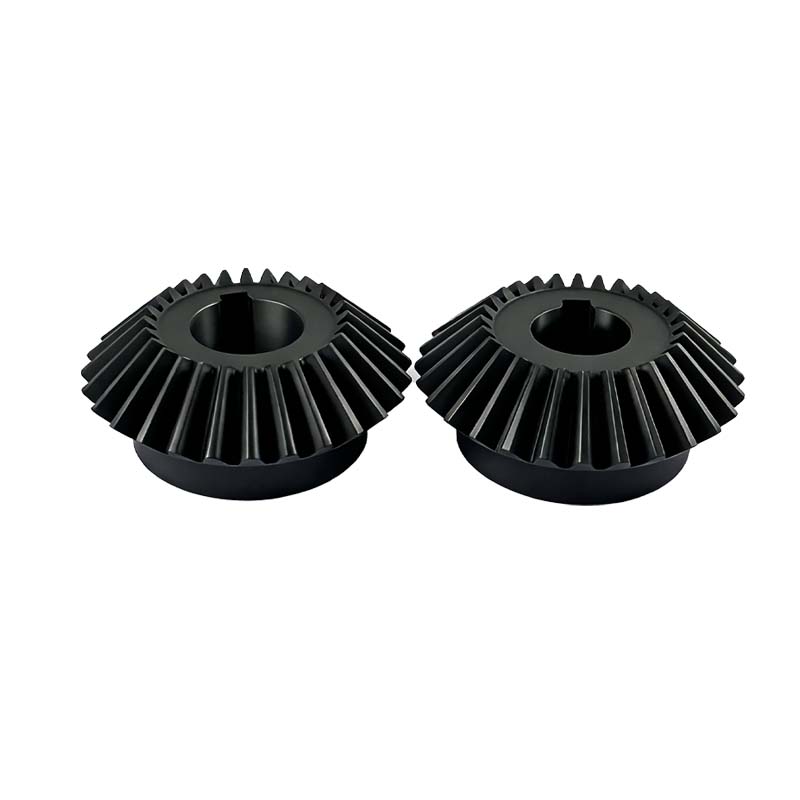

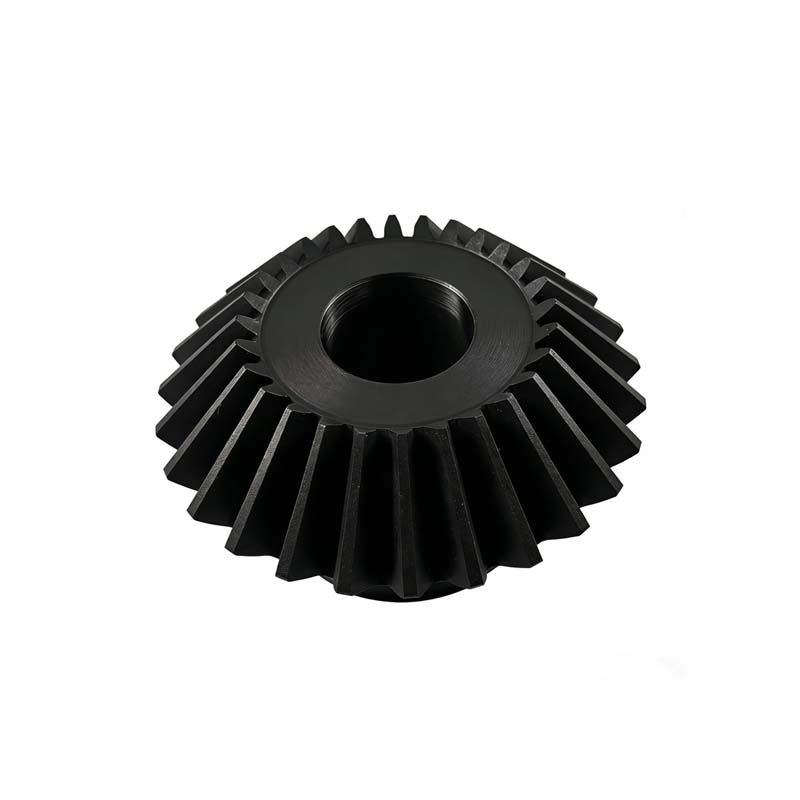

WF-002-C Straight Bevel Gear, 45# steel, module 4, 28 teeth, bore 40 mm, induction hardened and phosphated, for reducers.
描述
Model: WF-002-C (28-M4-L46-D35(28-M4-J35-D85-L50-V-C-B))
This is a straight bevel gear for reducers, made of 45# carbon steel.
Parameters: pressure angle 20°, module 4, 28 teeth, inner bore 40 mm, tooth outer diameter 117.66 mm, total length 50 mm, weight 1.9635 kg.
Process: sawing, turning, gear shaping, deburring, heat treatment (induction hardening), phosphating.
It features high hardness, wear resistance and rust resistance, with stable transmission performance for reducer drive systems.
其他信息
| weight |
1.9635 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
shaping |
