6K – Upper Shaft Bevel Gear
$2.00piece

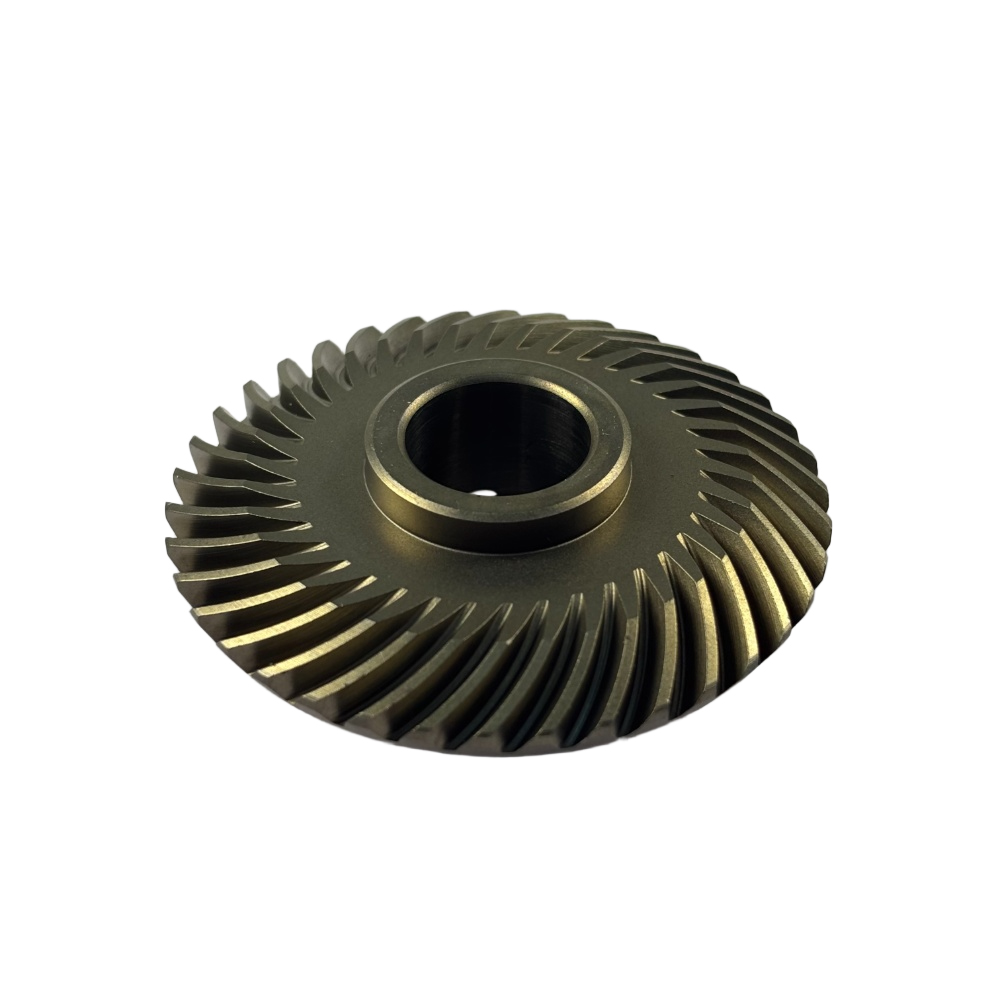

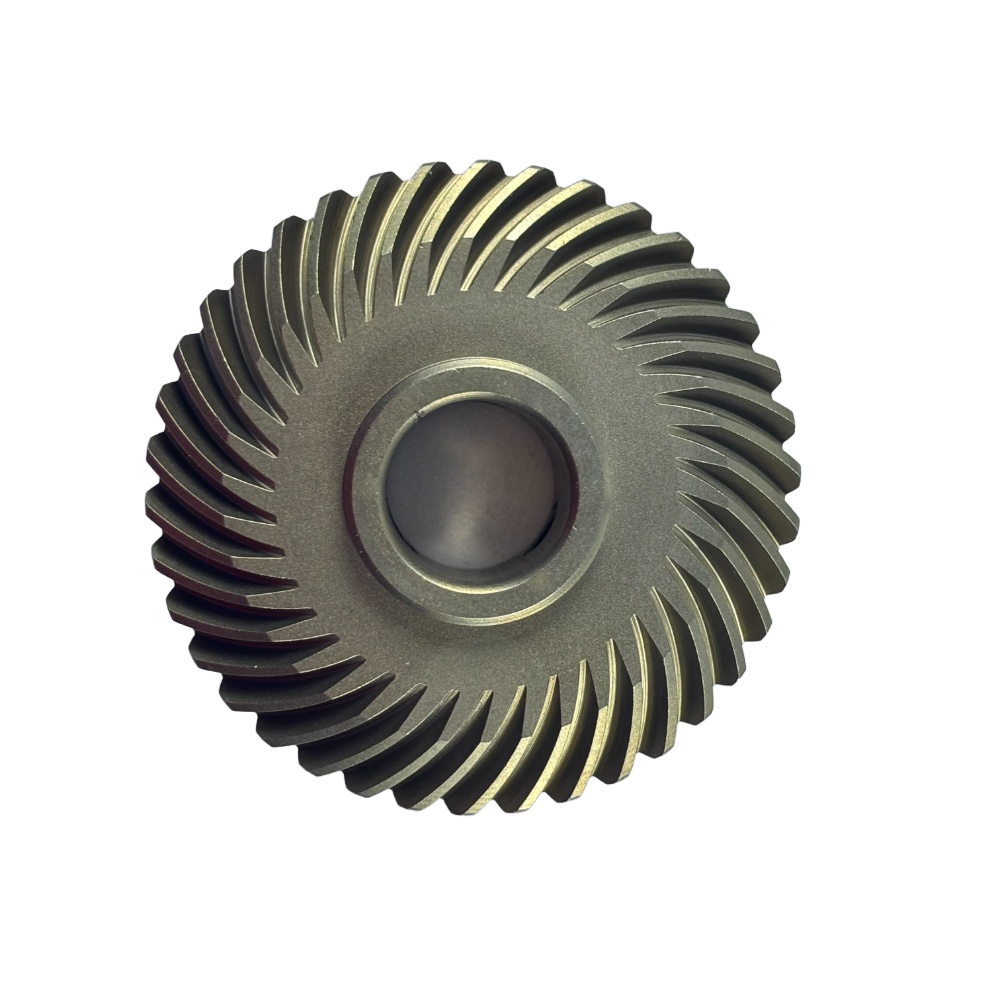

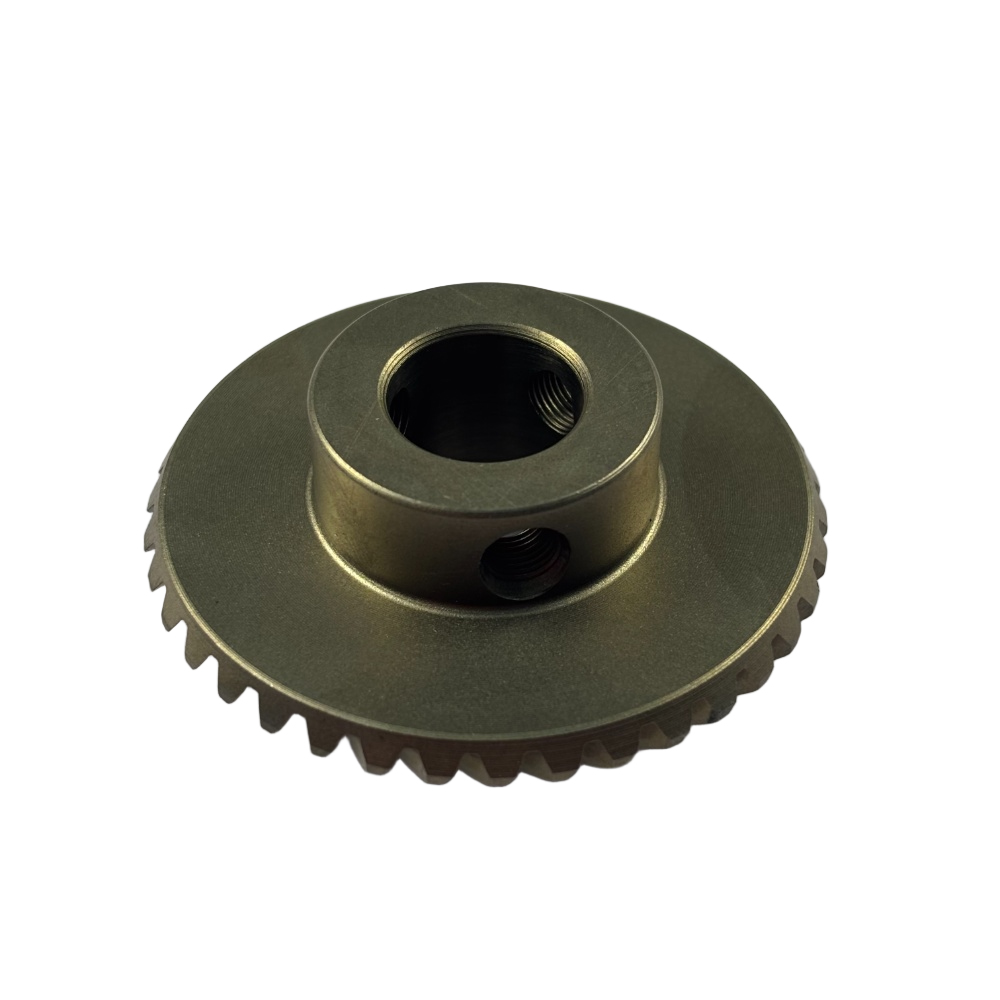

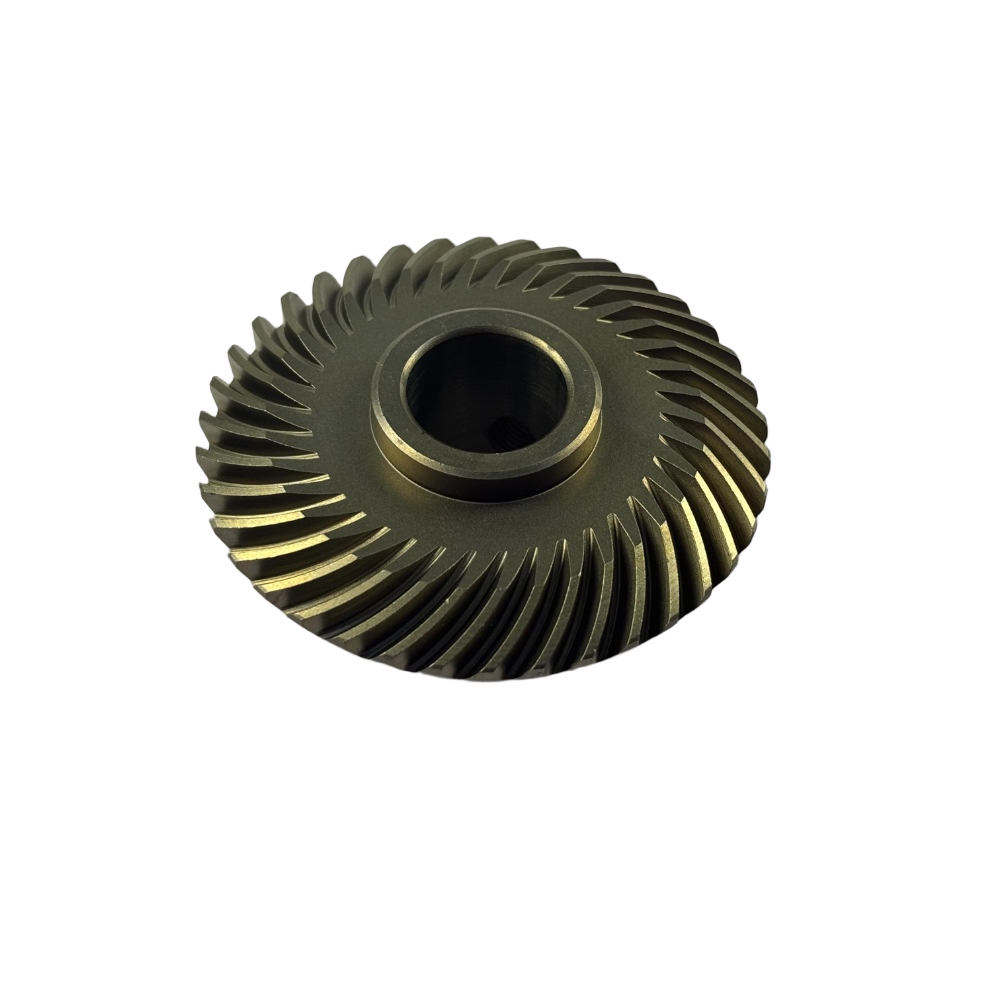

The 6K-Upper Shaft Bevel Gear is a spiral bevel gear made of 20CrMo material, produced through multiple precision processes. With parameters matching sewing equipment, it is light in weight and stable in transmission.
描述
其他信息
| weight |
0.1492 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Precision Casting |
用户评价 (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
相关产品
2020802
2020802 Spiral Bevel Gear is a dedicated transmission component for electric tools. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.5, 18 teeth, and a spiral angle of 35°/L, with a shaft diameter of 12mm, an outer diameter of 29.165mm, a total length of 145.5mm, and a single weight of 0.147kg. Produced via multiple correction and precision machining procedures, it features accurate transmission and high stability.
2024413（2024405 )
2024413 (2024405) Spiral Bevel Gear is a dedicated transmission component for electric tools. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.75, 7 teeth, and a spiral angle of 35°/L, with a shaft diameter of 12mm, an outer diameter of 17.1mm, a total length of 41mm, and a single weight of 0.0344kg. Produced via multiple grinding and full inspection procedures, it features high transmission accuracy and low loss.
32721.150020 Bevel Gear-32721.150010 Bevel Gear
32721 series spiral bevel gears (including 32721.150020/32721.150010) are specially designed for sewing equipment. Made of 20CrMo, they are manufactured through full-process precision processes such as normalizing and turning + full appearance inspection. Core parameters: pressure angle 17°30′, module 1.05, helix angle 40° (right-hand/left-hand rotation respectively); Model 150020: 18 teeth, speed ratio 2, inner diameter 8mm, addendum diameter 21mm, weight 0.0118kg; Model 150010: 36 teeth, inner diameter 15mm, addendum diameter 38.33mm, weight 0.0428kg. Suitable for transmission of sewing equipment, with precise transmission, stability and durability.
Bevel Gear Shaft 4037013
The 4037013 Bevel Gear Shaft is a special transmission component for reducers, made of 20CrMnTi material and manufactured through multiple precision processes including normalization, turning, keyway machining, gear milling and heat treatment. Its core parameters are 20° pressure angle, 2.12 module, 8 teeth and 35° right-hand rotation, with a shaft diameter of 17mm, total length of 78.11mm and weight of 0.1295kg. It features stable transmission, wear resistance and durability.
NBRX-1530 Short-Type – φ8 Gear and NBRX-1530-T24 Long-Type Gear
The NBRX-1530 series of spiral bevel gears (including the short type φ8 and the long type T24) are made of 20CrMo material and manufactured through multiple precision processes. With parameters of 20° pressure angle, 0.9 module and 24 teeth, their helix angles are 35° left-hand rotation and 35° right-hand rotation respectively, and the tooth outer diameter is 21.8mm. The short type has a total length of 10.5mm and a weight of 0.0148kg, while the long type has a total length of 16mm and a weight of 0.0235kg. Specifically designed for sewing equipment, these gears feature stable transmission, wear resistance and durability.
