2024044
$2.30piece

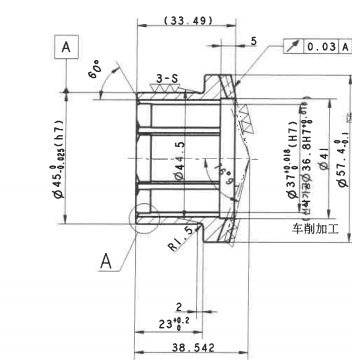

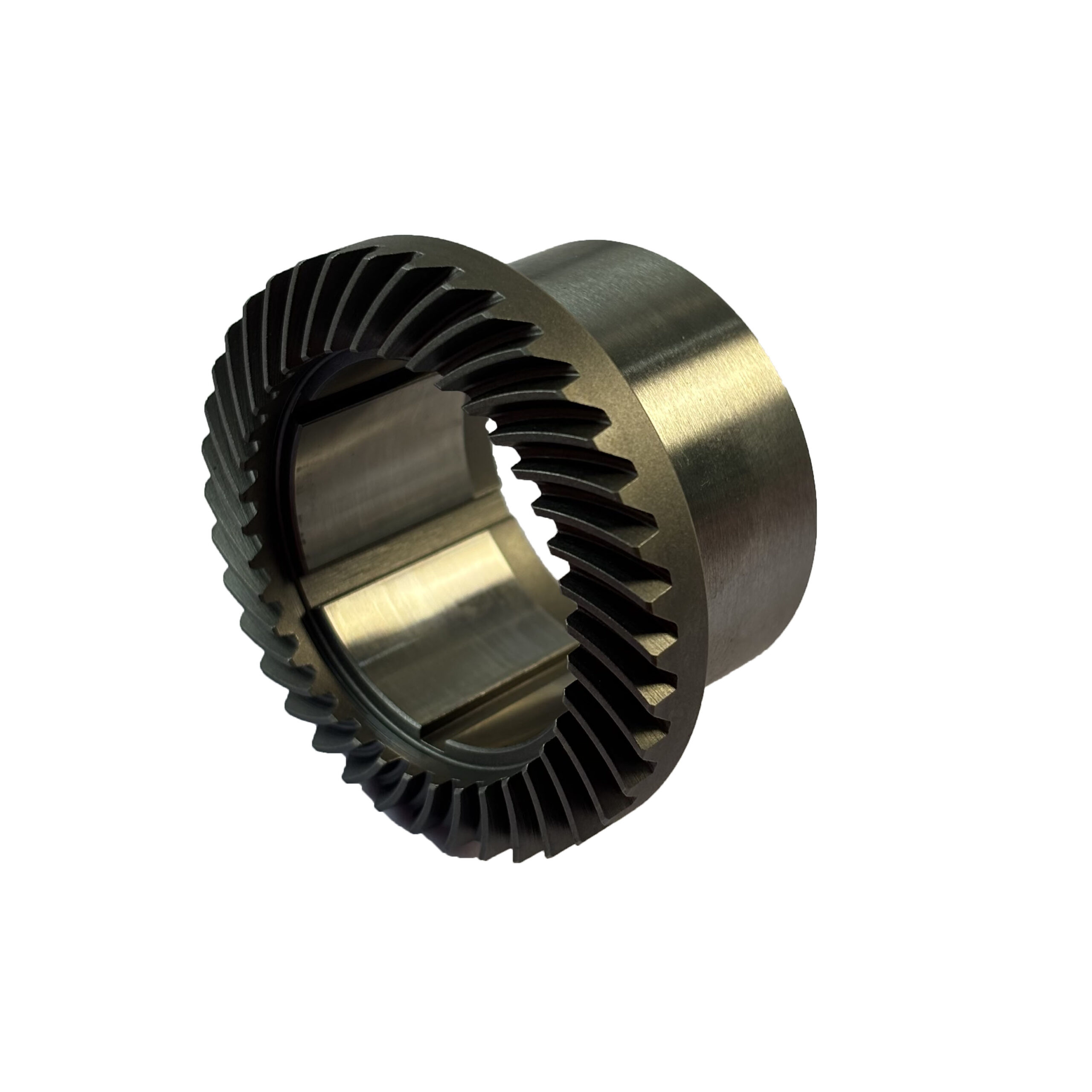

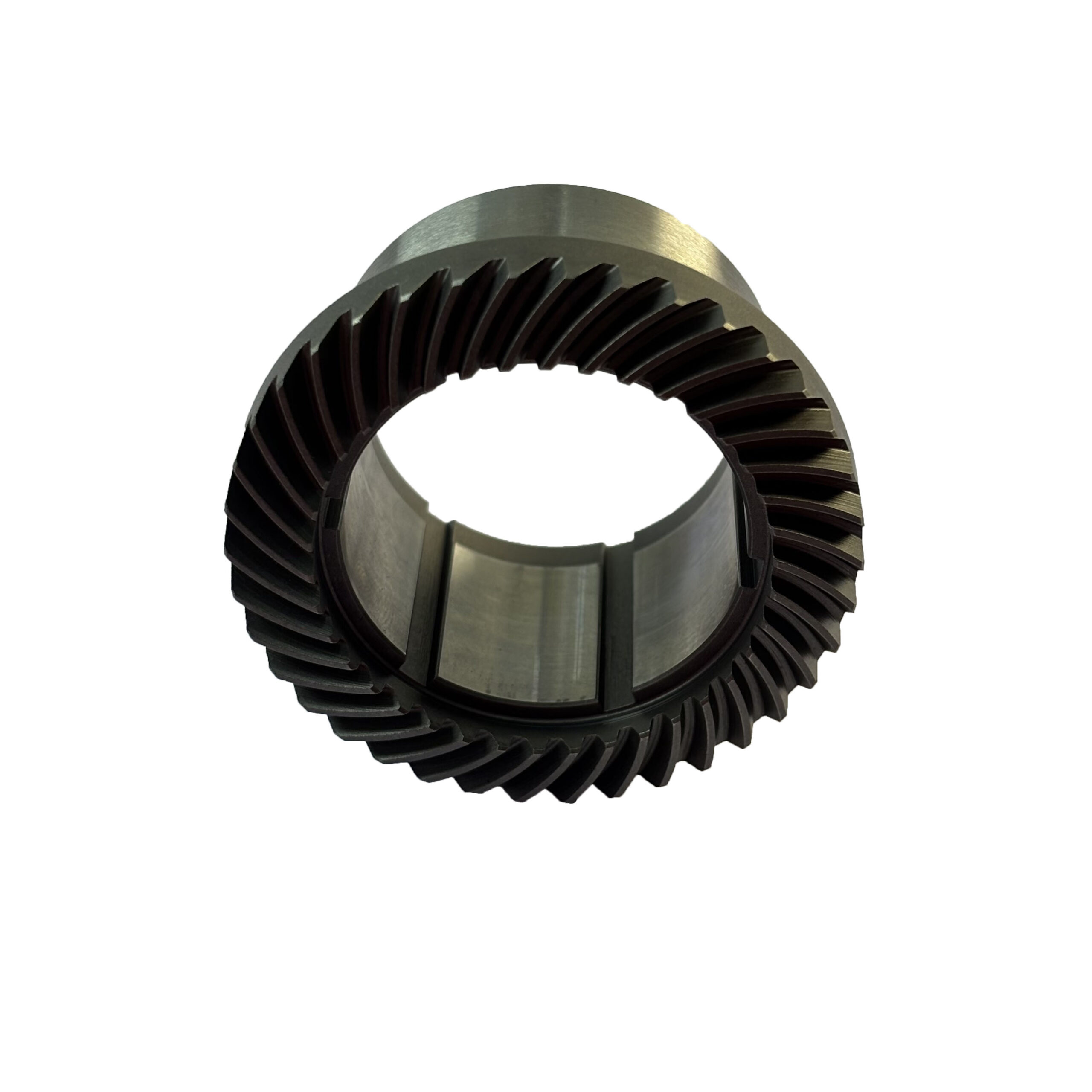

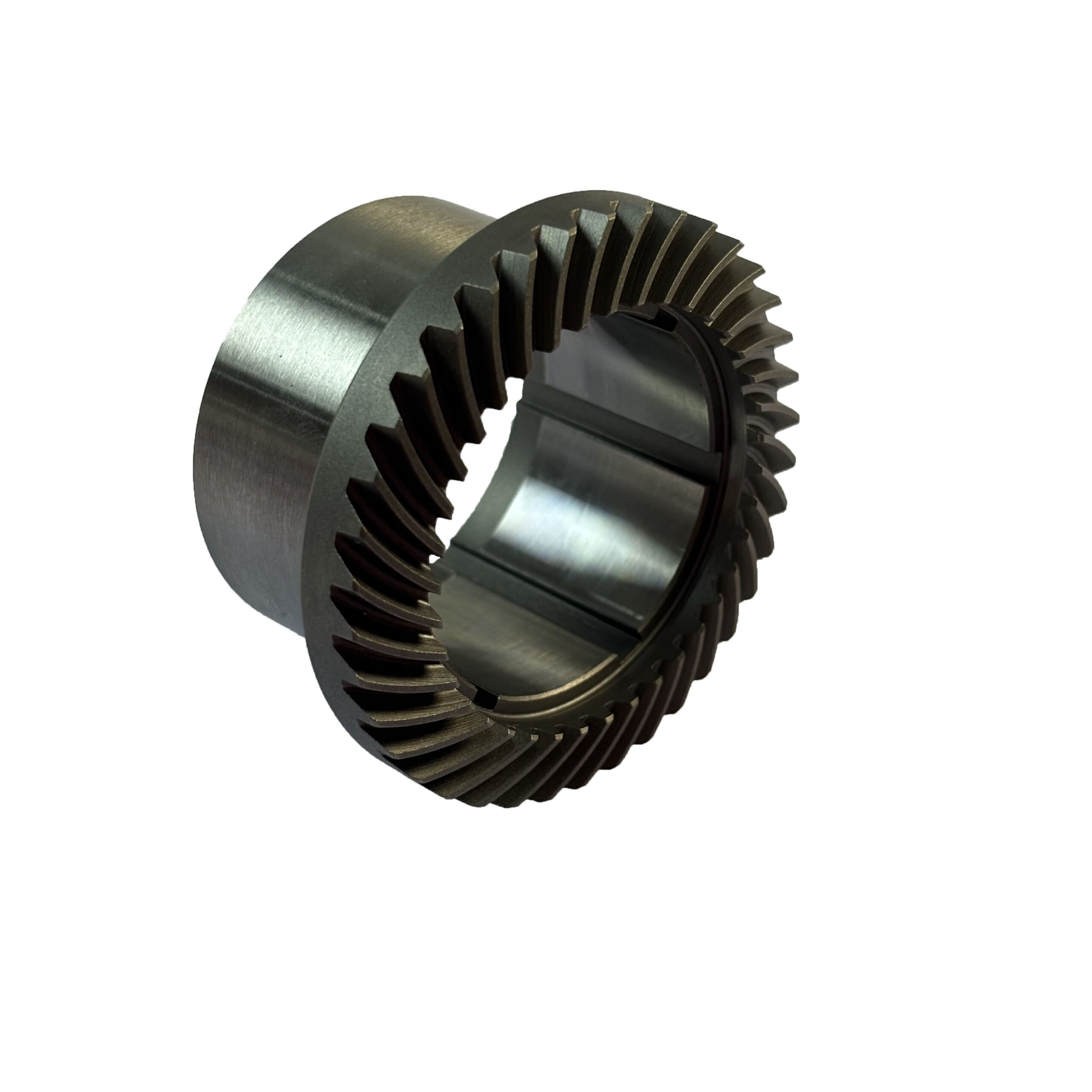

2024044 Spiral Bevel Gear is a dedicated transmission component for electric tools. Made of 20CrMnTi material, it has a pressure angle of 20°, a module of 1.5, 38 teeth, and a spiral angle of 35°/R, with an inner diameter of 37mm, an outer diameter of 57.4mm, a total length of 33.49mm, and a single weight of 0.1706kg. Produced via multiple precision machining and full inspection procedures, it ensures stable transmission and high durability.
描述
其他信息
| weight |
0.1706 |
|---|---|
| Core Components |
gear |
| Craftsmanship |
Precision Casting |
